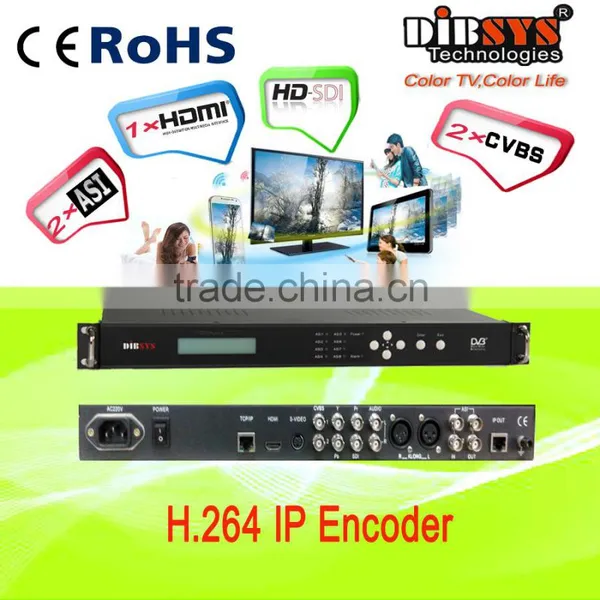

Digital headend H.264 SD/HD Encoder/Transcoder with ASI/IP output

Input

Video Input

2 x Video: level: 1.0Vp-p, Impendence: 75Ω Connector: BNC

1 x S-Video Analog Component Video Interface

1 x Digital SMPTE 292M (HD-SDI) digital video, BNC

1 x HDMI 1.3 (HDCP has been verified by a third party)

1 x YPbPr component video interface, Connector: BNC

Audio Input

2 analog stereo audio, BNC interface (unbalanced)

HDMI/SDI embedded audio

Digital AES/EBU audio, XLR interface (balanced)

 Output

DVB Interface: Two identical ASI, Comply to EN 50083-9 ASI Standard, BNC, 75Ω

IP output:100M Base-T Ethernet UDP/IP output, Multicast/Unicast supported

Output Format: 188 bytes, 7x188 bytes per udp packet

Output Rate: 0.5Mbps~20Mbps

Video Encoding

Comply to the International standard:MPEG-4 AVC

High Profile, Level 4,Main profile Level 3.0

Aspect ratio:16:9(HD),4:3(SD)

Scene change detection

Bit rate mode: VBR,CBR

Brightness / Contrast / Saturation / Chroma /Horizontal Offset

Audio Encoding

Sampling Rates: 32KHz, 44.1KHz, 48KHz

Bit rate: 64, 128, 192, 256, 384kbps

Feature: MPEG-1 Audio Layer

Quantization:24bit

Audio delay:0-100

Volume control:0-30dB

Transcoding

2x ASI input,BNC,Only one channel can be active at a time

MPEG2 HD/SD to h.264 transcoding

MPEG-2 Format inputs: 1920x1080i,1280x720p,

720x480p,720x576p

Resolution

Accordance to CCIR601 standard

Support 1920x1080i,1280x720p,720x480p,720x576p

Management

10/100 Base T Ethernet, RJ45, SNMP

7 keys: Up, Down, Left, Right, Enter, Esc, Lock

Front-panel LCD configuration, LED indicate light

SNMP protocol support

Environment

Comply to GB13837-92 & GB8898-88 standard

Power Supply: AC 90-250V 50/60Hz

Power consumption: 20 W

Operating temperature:-10 - 50°C

Storage temperature: -10 - 75°C

Dimensions: 300(L)x483(W)x 44mm(H) (1RU)

Weight: 5kg
