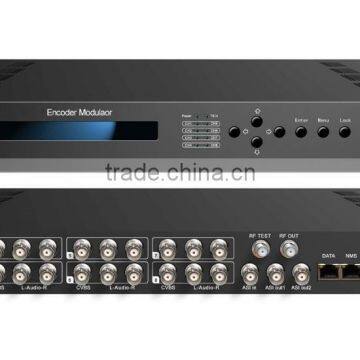

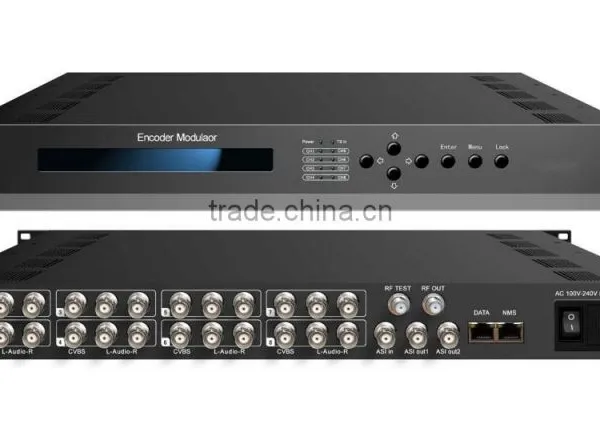

Web Management H.264/MPEG2 SD Iptv Encoder Modulator rf Modulator
US$ 1,000 - 2,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
DIBSYS
Model Number:
EMI3184C
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Hangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Professional av to rf Dvb-c Encoder Modulator for Public Advertising and Company, Schools Etc.US$ 1,000 - 2,000MOQ: 1 Set -
8CVBS Cable tv rf Modulator / DVB-C MPEG4 ModulatorUS$ 1,000 - 2,000MOQ: 1 Set
-
Digital Headend Mpeg2/h.264 DVB-C sd Modulator av rf ModulatorUS$ 1,000 - 2,000MOQ: 1 Set
-
Universal 8 in 1 Mpeg2/h.264 sd Encoder ModulatorUS$ 1,000 - 2,000MOQ: 1 Set
-
Encoding Multiplexing and Modulation Functions Supported SD Mpeg2/mpeg4 Encoder Modulator Digital rf ModulatorUS$ 1,000 - 2,000MOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
DIBSYS
Model Number
EMI3184C
8 Channels Low Bitrate MPEG-2/H.264 Encoder Modulator dvb-c modulator
Product profile
EMI3184C 8 in 1 Encoder Modulator simultaneously encodes video/audio feeds as MPEG2 SD 4:2:0
and MPEG4 AVC (H.264) SD 4:2:0,using MPEG1 LayerII, LC AAC,HE AAC(v2) audio compression. And it
is designed for one seg utilization.This is an all in one device integrated encoding multiplexing and
modulation functions,which can convert 8 CVBS signals and 1 ASI to DVBC RF,and produce ASI
(MPTS Mode) and 8 SPTS IP output data streams.
The signals could be conveying from satellite receivers, closed-circuit television cameras and etc.
to DVB-C standard TVs or DVB-C STBs.
Hightlight
- Up to 8 channels composite and 8 pairs R/L analog audio per chassis
- 1 way ASI inputs with multiplexing
- Support Mpeg2 and H.264 SD encoding
- Ultra-low bitrate encoding
- Simultaneous content encoding in MPEG-2 and MPEG-4 AVC formats in a variety of standard video resolutions
- MPEG-1 LayerII,LC_AAC, HE_AAC_V1,V2 audio encoding
- 1channel DVB-C tunner output optional
- Simultaneous output via MPTS & 8 SPTS IP over UDP
- VBR/CBR Video Mode
- Either MPTS or any of SPTS via ASI out
- Support PSI/SI generate
- Applies to one Seg and ISDB-T
- Filter Null packet Support
- Real-time monitor & configure the system status and parameter locally in front panel
- LCD / keyboard operation
- Web management and NMS upgrating
Main Application
- Public place such as metro, market hall, theatre, hotels, resorts, etc for advertising
- Company, schools, campuses, hospital for monitoring, training and educating.

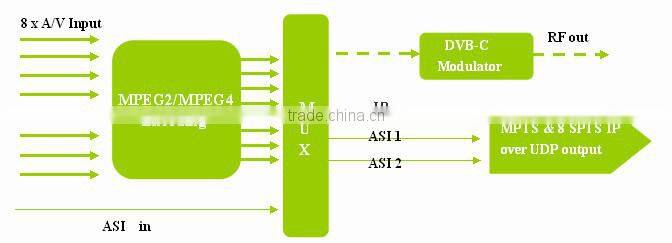

Inner principle

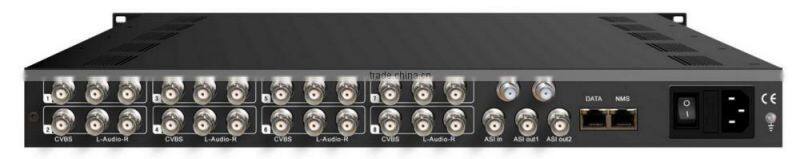

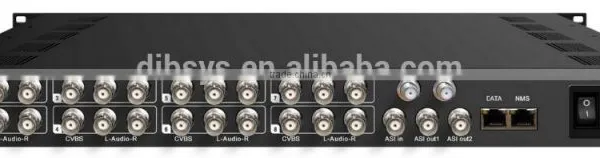

Rear panel
Technical specifications
Company show
