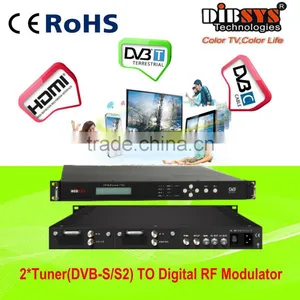

Cost- Effective 2xtuners(DVB-S/S2 Option) to Digital RF Modulator thumbnail-1
Cost- Effective 2xtuners(DVB-S/S2 Option) to Digital RF Modulator thumbnail-2
Cost- Effective 2xtuners(DVB-S/S2 Option) to Digital RF Modulator photo-1
Cost- Effective 2xtuners(DVB-S/S2 Option) to Digital RF Modulator photo-2
US$ 600 - 1,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
DIBSYS
Model Number:
EMI1218
Contact Supplier Request Quote Chat Now
Hangzhou DIBSYS Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Hangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name DIBSYS
Model Number EMI1218



2xTuner(DVB-S/S2) TO Digital RF Modulator  rf digital modulator





cost- effective 2xtuners(DVB-S/S2 option) to Digital RF Modulator

Product profile



    Offering unmatched signal quality, the EMI1218 professional modulator is a cost- effective solution for a wide variety of broadcast direct-to- home(such as metro, market hall, theater, hotels, resorts, etc for advertising and so on ) , primary distribution to headends applications(such as monitoring, training and educating in company, schools, campuses, hospital etc. ).

    EMI1218  Allowing 2 QPSK-S/S2 and 1 ASI signal input, the input signal come from satellite receivers. After signals be multiplexed ,it will produce DVB-C/DVB-T/ATSC-T/ISDB-T RF signals , at same time,  IP and ASI signals produced. Besides , the function of mixer is also be embedded in this device, when an extra RF signal input, it mixed with itself only and then output together with other RF signals. Finally the modulated signals will be received by TV, STB, modulator etc.







Hightlight

  • 2 tuners(DVB-S/S2) input and 1 ASI input, IP and ASI output;
  • DVB-C/DVB-T/ATSC-T/ISDB-T RF output;
  • Offering unmatched modulation quality (MER≥42dB);
  • A variety of RF frequency (range from 30Mhz to 960Mhz);
  • LCN support(Logical Channel Number)
  • LCD display , Remote control and firmware;
  • Update via Web/Ethernet.









Main Application



  • For public advertising , such as metro, market hall, theater, hotel, resorts etc.

  • Monitoring system, training and educating in company, schools, campuses, hospital etc.







Inner principle

cost- effective 2xtuners(DVB-S/S2 option) to Digital RF Modulator

Rear panel





 cost- effective 2xtuners(DVB-S/S2 option) to Digital RF Modulator

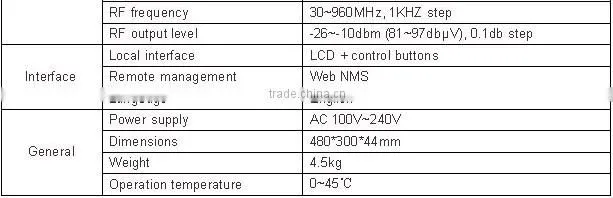

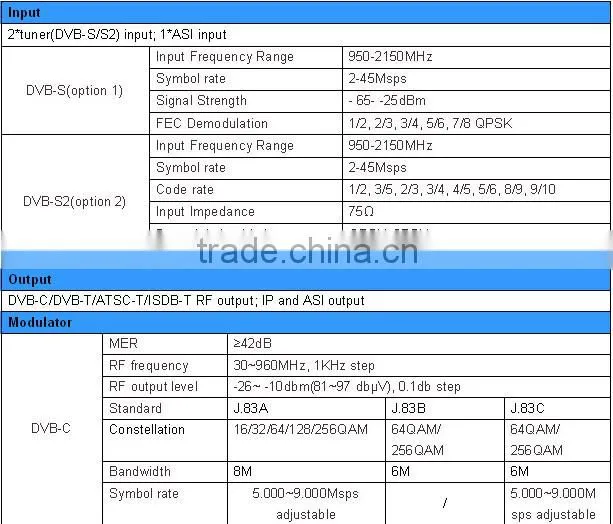

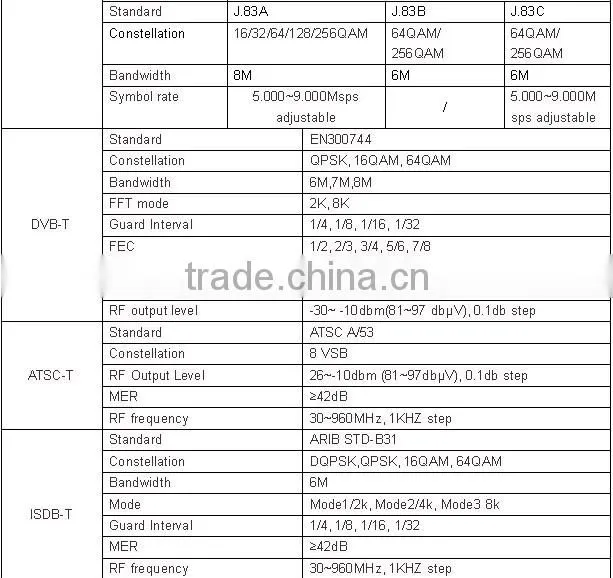

Technical specifications



cost- effective 2xtuners(DVB-S/S2 option) to Digital RF Modulatorcost- effective 2xtuners(DVB-S/S2 option) to Digital RF Modulatorcost- effective 2xtuners(DVB-S/S2 option) to Digital RF Modulator
