Place of Origin Zhejiang, China
Brand Name DIBSYS
Model Number ENC3140

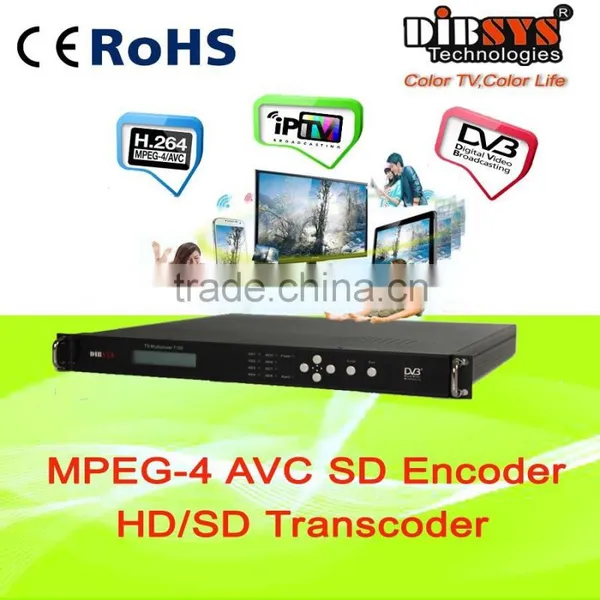

4 channels H.264 SD encoder and HD/SD Transcoder



H.264 SD encoder with cvbs over ASI/IP for digital headend



Overview

ENC3140is a broadcast-quality 4 channels H.264 SD encoder and HD/SD transcoder fully complying with DVB standard,with high reliability and advanced compress arithmetic.It utilizes leading-edge compression technology MPEG-4 AVC and a variety of audio coding algorithms.



Key Features

  • Up to 4 channels composite and R/L audio per chassis
  • Advanced MPEG-4 AVC 4:2:0(H.264) ASIC technologies which offer broadcast video quality, usually D1 1.5Mbps,720p(transcode) 2Mbps,1080i(transcode) 6Mbps for ultra-low bitrates
  • Audio and video synchronization adjustment
  • With 2 channels ASI input, support MPTS and SPTS input, after demultiplexing the input Mpeg-TS, it can realize up to 4 channels Mpeg-2 to H.264 transcoding
  • HD/SD transcoding resolution:480,576,720p, 1080i
  • SD encoding resplution:480,576
  • MPEG-1 Layer audio encoding
  • Both MPTS/SPTS MPEG- TS over IP output
  • In iptv applications,creation of multiple SPTS which can be multicast/unicast to 4 different ports or IP addresses
  • In DVB applications. set one MPTS to one IP address or port
  • Single channel video bitrate: 0.5 – 15 Mbps
  • NIT Insertion
  • Variable PCR re-correcting
  • Input video format (PAL/NTSC) adaptive selection,Embedded analog composite video, dual sound,tereo input
  • Achieve transcoding and encoding simultaneously
  • Built-in time based correction and video pre-processing
Technical specifications

Input

Encoding inputs

Video: level: 4x CVBS 1.0Vp-p,

Impendence: 75Ω Formats: NTSC/PAL

Audio: level: 8x R/L analog audio 2Vp-p,

Impendence: 600Ω

Connector: BNC

Transcoding inputs



2 channels separate ASI input

Up to 4 channels SPTS transcoding simultaneously

Input encoding format: Mpeg-2

Can demultiplex MPTS

Resolution: 576,480,720p,1080i

ASI Output



DVB Interface: Two identical ASI , Comply to

EN 50083-9 ASI Standard, BNC, 75Ω

Packet length: 188bytes

Bit Rate: Single Encoder 2~80 Mbps

MPEG-TS/IP Output



Up to 100M base-T,Full Duplex

Bi rate: ≤100Mbps

Data Protocol: Both SPTS and MPTS over UDP

7x188 bytes per udp packet

Video Encoding



Comply to the International standard:MPEG-4 AVC (h.264)

Main Profile,Level 3.0

Input Video Format:576(PAL),480 (NTSC)

Spatial preprocessing

Scene change detection

Bit rate mode: VBR/CBR

Audio Encoding



Sampling Rates: 32KHz,44.1KHz,48KHz

Bit rate: 64,128,192,256,384kbps

Encoding Format: MPEG I Layer I/II,CD quality

Quantization:24bit

Video transcoding



Comply to MPEG4 AVC Main profile level 3.0 and High profile level 4.0

Video Format:h.264

Resolution:576,480,720p,1080i

Management



10/100 M Base-T Ethernet, RJ45, SNMP

7 keys:Up,Down,Left,Right, Enter,Esc,Lock

Front-Panel LCD configuration

Video/audio configuration

LED indicate light

Environment



Comply to GB13837-92 & GB8898-88 standard

Power Supply: AC 90-250V 50/60Hz

Power consumption: 30 W

Operating temperature:-10 - 50°C

Storage temperature: -10 - 75°C

Dimensions: 300(L)x483(W)x 44mm(H) (1RU)

Weight: 5kg







Our advantages

1)        High quality and low price

2)        3-year warranty

3)        Perfect after-sale service and technical support



Order informations

ENC3140

4Ch H.264 SD Encoder,HD/SD Transcoder

ENC3240

4Ch H.264 HD Encoder with HDMI in

ENC3341

4Ch H.264 Full HD Encoder with HDMI,ASI In









H.264 SD encoder with cvbs over ASI/IP for digital headend

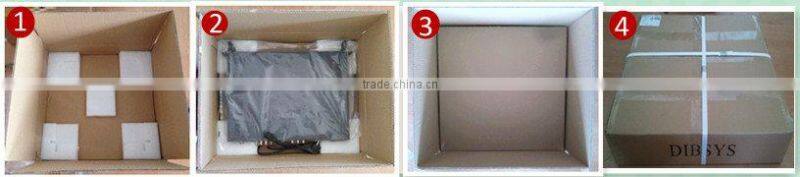

Packing process



H.264 SD encoder with cvbs over ASI/IP for digital headend



Buying tips





H.264 SD encoder with cvbs over ASI/IP for digital headend
