New IP to ISDB-T/DVB-T Modulator

New IP to ISDB-T/DVB-T Modulator thumbnail-1
New IP to ISDB-T/DVB-T Modulator photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Dibsys
Model Number:
MOD6000
Contact Supplier Request Quote Chat Now
Hangzhou DIBSYS Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Hangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Dibsys
Model Number MOD6000
Product Description

IP to ISDB-T/DVB-T Modulator

The DIBSYS’s MOD6000 IP to ISDB-T/DVB-T modulator is a high performance modulator developed according to ARIB STD-831 standard. It provides a more powerful receiving ability to simultaneously process 4 IP streams inputting from encoder, multiplexer, gateway and etc head-end. It outputs digital RF after multiplexing process.For management and operation, this device supports local and remote control through a web-based NMS system.

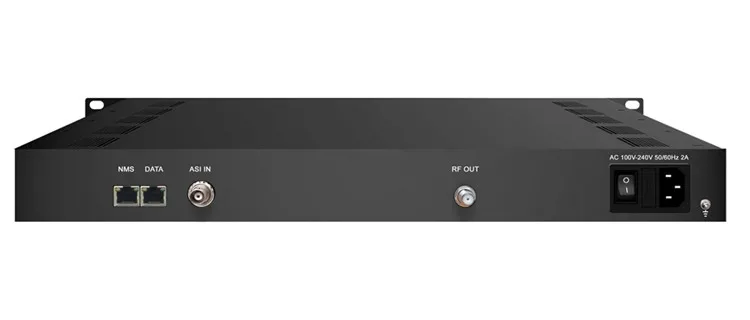

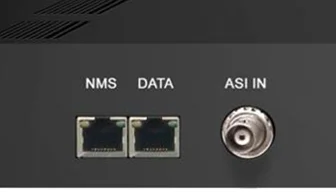

ASI IN

     RF OUT

Feature

1.Complying with ARIB STD-831 standard

2. 1000M IP port, 4 IP streams input

3. Support 4 IP output

4. Programs output through RF with multiplexing

5. Dual adjacent carriers output

6. RF Output frequency range: 30MHz~1000MHz in 1 kHz step

7. Support PID remapping

8. LCD/keyboard and Web-based NMS operation
Specifications
IP Input
4* IP (MPTS/SPTS) input over UDP (Unitcast/Multicast) (1000M port based Ethernet)
IGMP Snooping: v2, v3
ISDB-T RF Output
Standard
ARIB STD-B31
Bandwidth
6M
Constellation
DQPSK, QPSK, 16QAM, 64QAM
Guard Interval
1/32, 1/16, 1/8, 1/4.
Transmission Mode
2K, 4K, 8K
FEC
1/2, 2/3, 3/4, 5/6, 7/8
MER
≥42dB
Output
30~1000MHz, 1KHz step
RF output level
-30~ -10dbm (77~97 dbµV), 0.1db step
DVB-T RF Output
Connector F-Type, 75 Ω
Modular channel
1(default),2,4
1 RF port output
Mixer with 1 RF port input
RF output level
-30~-10dbm(81~97 dbμV), 0.1db step
RF frequency range
30 to 960 MHz, 1kHz steps
Output Return Loss
≥12dB
Restrain Carrier:
≥58dB
MER
≥38dB（64QAM, 6.857MBaud）
SNR
 ≥50dB
Phase Noise
@1KHz ≥90dBc/Hz @10KHz ≥100dBc/Hz@100KHz≥105dBc/Hz）
SNR
≥50dB
Accuracy of center             frequency
±25KHz
IP Output
4*IP output, one for one with the 4 IP input
System
LCD/keyboard operating and Web-based NMS support
Ethernet software upgrading
General
Dimension
482mm×300mm×44mm (W*D*H)
Weight
2.3kg
Temperature
0~45℃(Operation); -20~80℃(Storage)
Power
AC 110V±10%, 50/60Hz; or AC 220V±10%, 50/60Hz
Consumption
25W
