8 Channel 480i/576i Composite(AV) Video Modulator

FOB Price

USD $500 - $3,000 / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port Shanghai/Hangzhou
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	Dibsys
Model Number	EMI3084

Product Description

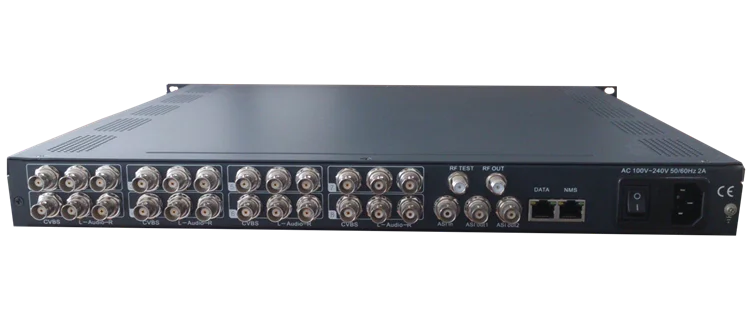

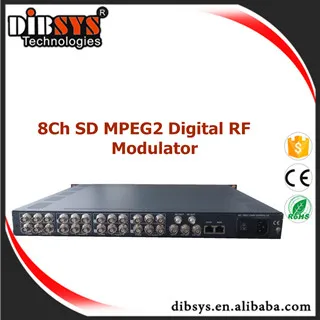

Broadcast 8 A/V Digital Video Modulator

EMI3084 is a new generation and highly integrated SD encoder and QAM transmodulator combining MPEG-2 SD encoding, QAM RF reception, transport stream processing and QAM modulation in a 1RU chassis. It’s ideal for broadcasters, cable network operators and media providers looking to reduce equipment costs and lower total power consumptions for both digital television service contribution and distrubution.

The EMI3084 features versatile functions, high density and superior performance, provides up to eight channels of MEPG-2 standard definition(SD) encoding, QAM RF demodulation, ASI-based transport stream input, trasport stream multiplexing/re-multiplexing/pass-through, PSI/SI processing, two QAM modulation outputs. All of these feeds incoming from local analog PAL/NTSC video&Audio media sources, local ASI transport streams and remote QAM RF signals could be processing into two desirable transport streams and finally distribute to cable network after QAM modulation.

As a comprehensive contribution and distribution equipment, the Web browser and SNMP management are also be introduced for local and remote monitoring and control, this can significantly reduce management time and save operating expense.

Feature

1.Up to eight channels of MPEG-2 SD video and MPEG-1 Layer 2 audio encoding

2.High picture quality in ultra low bit rate to reduce network overheads or costs

3.Support encoding rate range from 1Mbps to 7Mbps

4.Support input channel coding multiplexing simultaneously to two QAM Channels output

5.Support VBR/CBR video encoding

6.Transport stream multiplexing, remultiplexing sand pass through via ASI,DVB-C RF input

7.Support PID filtering, pass-through, PCR auto-correction

8.PAT, PMT and SDT insertion

9.Up to Dual QAM adjacent-channel outputs

10.Wide range of modulation output bitrate from 15.5Mbps to 51.6Mbps per QAM channel

11.QAM constellation: 16/32/64/128/256QAM

12.ITU-T J.83 Annex A/B/C compliant, 6MHz or 8MHz bandwidth

13.Self-adaptive filter circuit design ensures outstanding out-of-band rejection

14.Web browser GUI and SNMP management for local and remote management

15.Local and remote firmware upgrades

16.Low power consumptions, Tilted more than 45 degrees of intelligence to turn it off

Application

Specifications

Analog Video/Audio Input
Composite Video	4 or 8 x CVBS, BNC female, 75Ω
Unbalanced Audio	4 or 8 x Stereo pairs (R&L),BNC female, 600Ω Stereo or Mono mode

Video Encoding
	MPEG-2 MP@ML
	720576/544576/480576/352576/352288 720480/544480/480480/352480/352240
Aspect Ratio	4:3
Rate Mode	CBR, VBR
Video bitrate	1 to 7Mbps per channel

Audio Encoding
	MPEG-1 Layer 2
Operation Mode	Stereo or Mono
Sample Rate	32 kHz, 44.1 kHz, 48 kHz
Audio Encoding Rate	64/128/192/256/384 kbps

RF Input
	1 x RF Input, 1 x RF Loop Out, -20to +20dBm
	Connector Type: F-Type (Female, 75Ω) DVB-C

ASI Transport Stream Input
Qty of ASI Input	1 x ASI, 1 x ASI Loop Out
TS Packet Length	188 or 204 Bytes
TS Output Bit Rate	2 to 60Mbps
Connector	BNC female, 75Ω

TS Processing
	Multiplexing,Re-multiplexing,Pass through
Capacity of Processing	Two transport streams, up to 24 programs
PCR	Auto re-correction
PSI/SI	PSI/SI auto-generation, manual insertion
PID	Remapping and filtering and pass-through
PSI/SI Standards	ISO/IEC 13818-1, DVB SI(ESI EN300468)
Real-time Statistics	TS rate, program rate, PID rate

QAM Modulation Output
	Output Connector: 1 x RF Output 1 x -20dB RF Output (Test Port)
	Connector Type: F-Type (Female,75Ω)
	RF Frequency Range:48 to 870 MHz
	Bandwidth: 6 or 8MHz
	QAM channel:Dual adjacent QAM
	15.5M-51.6Mbps per QAM channel
	ITU-T J.83 Annex A, B and C
	Annex A: 16 /32 /64 /128 /256QAM Annex B: 64/256QAM Annex C: 32 /64 /128 /256QAM
	Annex A: 4.2 to 7 Mbaud Annex B: 5.057 Mbaud Annex C: 4.2 to 5.3 Mbaud
	90 to 110dBμV (RF output Port) 70 to 90dBμV (-20dB test port)
	MER: ≥38dB (64QAM, 6.875MBaud)
	SNR(Out of band): ≥50dB
	Return Loss: ≥12dB
	0 to 10dB, Step Size 0.25dB

Optional
	DVB-T(COFDM),ISDB-T,ATSC

Network Management
Interface	1 x 10/100 Base-T Ethernet
Connector	RJ-45
Management	Web browser and SNMP management

Miscellaneous
Front panel	3.5”LCD with 6 control Button for 2 lines alphanumeric display and parameter settings
	3*Dual color LED,for status indications of power,running and alarm
Rear panelRear panel	1*power Receptacle(AC input)
	1*power switch
	1*Serial console port(via RJ 45 connector)

Power supply
Input Voltage	90-250VAC,50/60Hz
Power consumption	50W(Max)

Environment
Operating temperature	0℃ to 45℃(32”F to 113”F)
Storage temperature	-20℃ to 80℃ (-4”F to 176”F)
Operating Humidity	90%,non-condensing
Product Dimensions (WDH)	483mm44.5mm450mm 19”1.73”(1U)17.7”
Weight	5Kg
