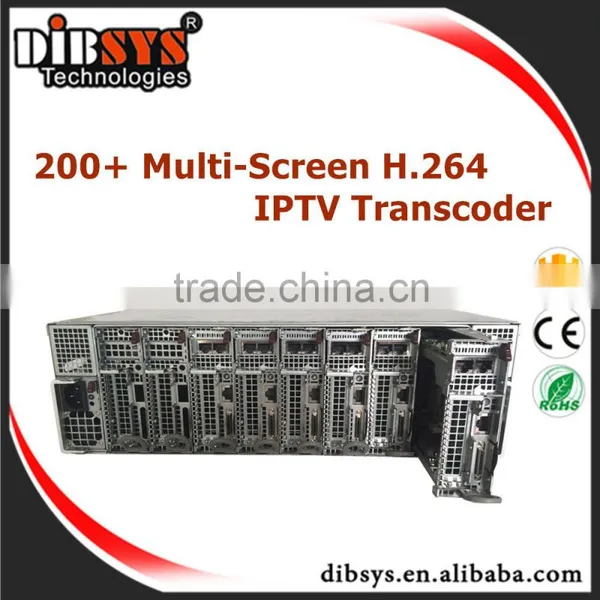

DIBSYS Caster-t328 200Channel Digital tv Headend Ott IPTV Transcoder

DIBSYS Caster-t328 200Channel Digital tv Headend Ott IPTV Transcoder thumbnail-1
DIBSYS Caster-t328 200Channel Digital tv Headend Ott IPTV Transcoder photo-1
US$ 1 - 39,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Dibsys
Model Number:
caster328
Contact Supplier Request Quote Chat Now
Hangzhou DIBSYS Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Hangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Dibsys
Model Number caster328
Product Description

Caster328 is the superior transcoding solution for producing Mobile TV, Internet TV, and IPTV and broadcast live video services from a single platform, eliminating the need for separate headends. The transcoder delivers high-quality services to tens of thousands of users worldwide, from bandwidth-limited mobile delivery to up to full 1080p HD over high-speed networks, for traditional TVs or big screen smart mobile devices.

Multi-screen transcoder can transcode MPEG-2 or MPEG-4 AVC (H.264) or H.263 content to multiple codecs and stream in different protocols, enabling new multiscreen services.

Caster328 runs on powerful hardware, representing the highest density available with the highest performance on a carrier grade 3-RU server platform. Enables to deliver impressive images to various servers, such as Adobe Flash Server, Wowza Server, Windows Media Server, Apples HTTP Live Streaming, and some other servers base on UDP/RTSP/RTMP/HTTP/RTP protocols.

Feature

1.High density 3-RU platform can process up to 200 input channels and transcode up to 200 SD or 80x720p or 50 Full HD profiles

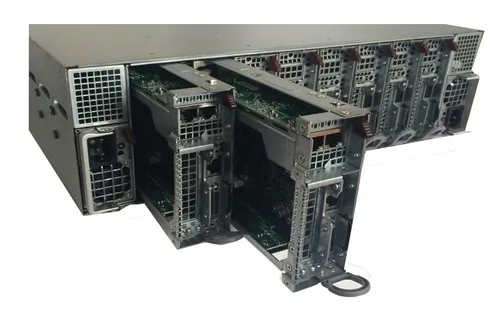

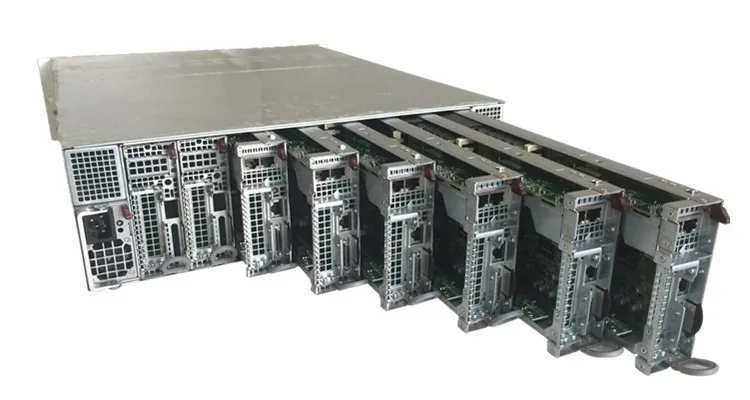

2.Up to Max.30 channels per Module,A total of 8 modules in 3RU chassis

3.Support dual power supply

4.Multiple output streams per input service to support Broadcast, VOD, IPTV and OTT, mobile/web, Set top box applications

5.SD/HD MPEG/H.264-to- H.264 any to any transcoding

6.Mulltiple Codec, Protocol, Bitrate, Resolution, Profile per channel

7.HD-to-SD down, SD-to-HD up conversion

8.GbE IP outputs – UDP,RTSP,RTMP,HTTP,HTTP Live Smooth(HLS),FTP

9.M3u8 playlist files

10.AAC,MPEG,MP3 or Dolby Digital AC-3

11.High quality pre-processing including filtering, Deinterlacing, cross scaling, image insertion

12.Integration with content distribution CDNs

13.Superior video quality at ultra-low bitrates, generally video bitrate advised SD about 500kbps, 720p about 1mbps,1080 about 2.5mbps for lowest bitrate

14.Selectable any resolution from QSIF to 1080p

15.Easy-to-Use System Management

16.Web Management

INPUTS
IP stream input
One Gig Ethernet Ports per module
MPEG-TS with H.264/MPEG4/MPEG2;MPEG-1 Layer II,AAC,AC3
UDP/RTP/RTSP/HTTP/MMS/FTP
OUTPUTS
IP Output type
One Gig Ethernet Ports per module
Streaming format
Mpeg-2/H.264/H.263/MPEG4 SP/MPEG4 ASP;
MPEG-1 Layer II,AAC,AC3,AMR,WM A ,MP3
TS  Over UDP/RTP/HTTP
3GP Over RTP
FLV Over HTTP/RTMP
HTTP Live streaming
Apple HLS (m3u8)
Mp4
File Output
Encoding
3GPP/3GPP2/WMV/FLV/TS
File output support timing and capacitive record
Pre-processing
Image setting
Video adjustments（Brightness, contrast, Saturation, Hue）
Frame rate
from 2fps to 30fps
Aspect ratio
4:3 and 16:9, WSS control
Image insertion
LOGO insertion
Subtitle Overlay
Static or roll subtitle, up to 3 way (optional)
PID Configuration
Depending on the configuration, it forwards selected programs via IP data casting; PAT, PMT, video PID, audio PID(s) and PCR information are transmitted.
Video encoding
Bitrate mode
VBR,CBR
Resolutions
80x64 • 176x120 • 128x96 (4:3) • 176x128 • 144x80 • 176x144 • 144x140 • 220x176 • 160x90 (16:9) • 240x176 • 320x240
352x288 • 400x300 • 480x360 • 720x576 • 1024x768
854x480(16:9) • 1280x720p • 1920x1080p • 1920x1080i
Max channels per RU
MPEG-2 Input
H.264 Out
Channels
Notes
Standard def.
Standard def.
Up to 240 streams
Take those information as reference only,For details contact us
720P
720P
Up to 96 streams
1080P
1080P
Up to 60 streams
Up to multiple concurrent outputs per one stream input
Video codec
H.263 Profile0, Levels 10,20,30
MPEG-4 SP, Levels 0,0b, 1,2,3
H.264 Baseline Levels 1,1b,2,3;
H.264 Main Profile/High Profile 3.0- 5.1
MPEG-2 MP@ML 4:2:0
GOP Size
I-Frame Time Interval; B-Frame Number; Reference Frame
Video Bitrate
32kbps to 5Mbps
Enhancement filter
Deinterlacing; MABFF CABAC; Noise reduction; Sharpening; Visual Optimizing
Audio encoding
Audio encoding
LC-AAC,HE-AAC and HE-AACv2 (including Parametric Stereo)
MPEG-1 Layer, AC3,MP3
Sample rate
8khz to 48khz
Data rate
8kbps to 384kbps
Management
Interfaces
LCD display, key button, WEB
Environment
Power Supply
110-240 VAC
Power consumption
50W
Operation temperature
0 -50°C (32 -122°F)
Storage temperature
-40-70°C (-40-158°F)
Dimensions
590mm (W) x 440mm (L) x 140mm (H)
Weight
40kg(62.2lbs)
Multiscreen Transcoder
Caster-T324
Two ports GigE IP in/ out: up to 60x SD streams out
Caster-T322
Two ports GigE IP in/ out: up to 20x SD ,8 x720p, 5x 1080p streams out
Multiscreen Encoder
Caster-T300
Up to 6/12/20x CVBS inputs
Caster-T305
Up to 1,2, 4,8x SDI inputs
Caster-T310
Up to 1,2,4,8x HDMI inputs
Caster-T315
Up to 1,2,4x HD-SDI inputs
