Gen II Multiscreen DVB-S-S2 /IPTV Video Transcoder
Overview
Caster-T323 is the superior encoding/transcoding solution for producing Mobile TV, Internet TV, and
IPTV and broadcastlive video services from a single platform, eliminating the need for separate headends.
The transcoder delivers high-quality services to tens of thousands of users worldwide,from bandwidth-limited mobile delivery to up to full 1080p HD over high-speed networks, for traditional TVs or big screen smart
mobile devices.Multi-screen transcoder can transcode MPEG-2 or MPEG-4 AVC (H.264) or H.263 content
to multiple codecs and stream in different protocols, enabling new multiscreen services.
Caster-T323 runs on powerful hardware, representing the highest density available with the highest
performance on a carrier grade 1-RU server platform. Enables to deliver impressive images to various
servers, such as Adobe Flash Server, Wowza Server, Windows Media Server, Apples HTTP Live Streaming,
and some other servers base on UDP/RTSP/RTMP/HTTP/RTP protocols.
Key Features
l Optimized for 500 Kbps for 480i/576i, 1.5 Mbps for HD 720p, 2.5 Mbps for HD 1080i and 3.5 Mbps for HD 1080p.
l High density 1-RU platform can process up to 8 FTA or 4 Encrypted
dvb-s/s2 Tuners and transcode up to 20 SD or 10x720p or 5-6 Full HD profiles
l Multiple output streams per input service to support Broadcast, VOD, IPTV and OTT, mobile/web,
Set top box applications
l SD/HD MPEG/H.264-to- H.264 any to any transcoding
l Simultaneous output to multiple,formats, protocol,resolutions and bitrates lets you efficiently
optimize for each target audience or application
l HD-to-SD down, SD-to-HD up conversion
l Two GbE IP outputs – UDP,RTSP,RTMP,HTTP, HTTP Live Smooth(HLS),FTP
l Superior output quality for applications
l from multiscreen distribution to post
l production and archive
l M3u8 playlist files
l AAC,MPEG,MP3 or Dolby Digital AC-3
l High quality pre-processing including filtering, Deinterlacing, cross scaling, image insertion
l Integration with content distribution CDNs
l Superior video quality at ultra-low bitrates, generally video bitrate advised
SD about 500kbps, 720p about 1mbps,1080i/p about 2mbps for lowest bitrate
l Selectable any resolution from QSIF to 1080p
l Easy-to-Use System Management
l Web Management

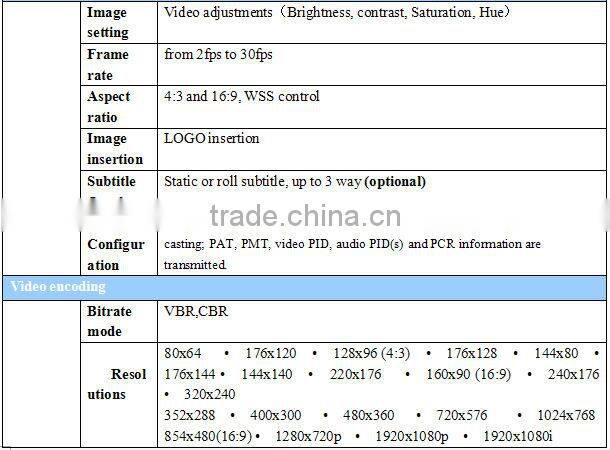

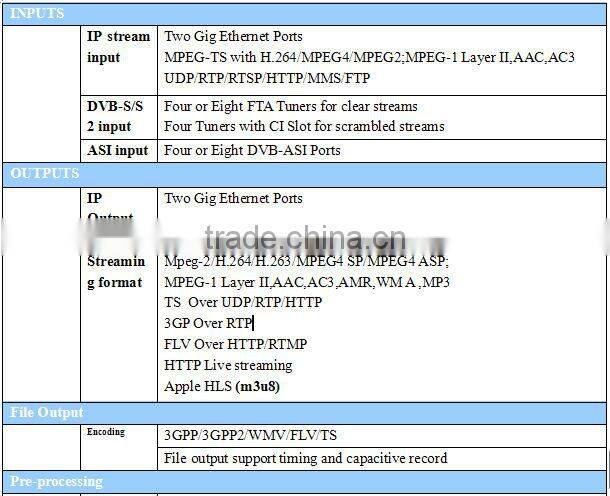

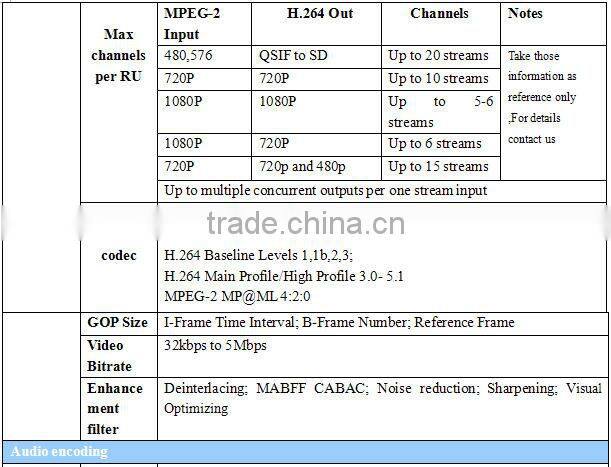

Technical specifications
Our advantages
2) 3-year warranty
3) Perfect after-sale service and technical support
Send Inquiry to This Supplier
