Telco,Broadcaster 8/12 Channel HLS,RTMP,Push+Pull,HD-SDI to ip Streaming Encoding Iptv Streamer

Telco,Broadcaster 8/12 Channel HLS,RTMP,Push+Pull,HD-SDI to ip Streaming Encoding Iptv Streamer thumbnail-1
Telco,Broadcaster 8/12 Channel HLS,RTMP,Push+Pull,HD-SDI to ip Streaming Encoding Iptv Streamer photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Dibsys
Model Number:
Caster-T315H
Contact Supplier Request Quote Chat Now
Hangzhou DIBSYS Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Hangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Dibsys
Model Number Caster-T315H
Product Description

Superior video quality multiscreen HD-SDI Encoder



Caster-T315H  high-performance High definition solution allows content owners and service providers to significantly increase the content hours delivered while adhering to processing timetables and video quality targets in a cost-effective and scalable manner. a real-time multi-channel, codec, format IP-based encoder for multi- screen delivery (TV, Mobile, and Web). With the support for various encapsulation formats base on embedded Linux operating system appliances. It relies on an Intel 4 or more Core CPU as an accelerator.

Caster-T315H can push/pull H.264, MPEG-4 encoding video streams deliver to various servers, such as Adobe Flash Server, Wowza Server, Windows Media Server, Apples HTTP Live Streaming, and some other servers base on UDP/RTSP/RTMP/HTTP/RTP protocols.

Key Features

1.Optimized for 500 Kbps for 480i/576i, 1.5 Mbps for HD 720p, 2.5 Mbps for HD 1080i and 3.5 Mbps for HD 1080p

2.Up to 4/8/12 channels HD-SDI per chassis


3.Multiple output streams per input service to support Broadcast, VOD, IPTV and OTT, mobile/ web, Set top box applications


4.HD MPEG2/H.264 to any resolution encoding

5.Mulltiple Codec, Protocol, Bitrate, Resolution, Profile per channel

6.GbE IP outputs – UDP, RTSP, RTMP, HTTP, HTTP Live Smooth(HLS), FTP M3u8 playlist files

7.Audio support: AAC, MPEG, MP3 or Dolby Digital AC-3 passthrough

8.High quality pre-processing including filtering, Deinterlacing, cross scaling, image insertion

9.Based on embedded Ubuntu Linux

10.Logo Insertion

11.Superior video quality at ultra-low bitrates, generally video advised SD about 500kbps , 720p 800kbps,1080p 4Mbps for lowest bitrate


12.Selectable any resolution from QSIF to 1080P

13.Easy-to-Use System Management

14.Web Management

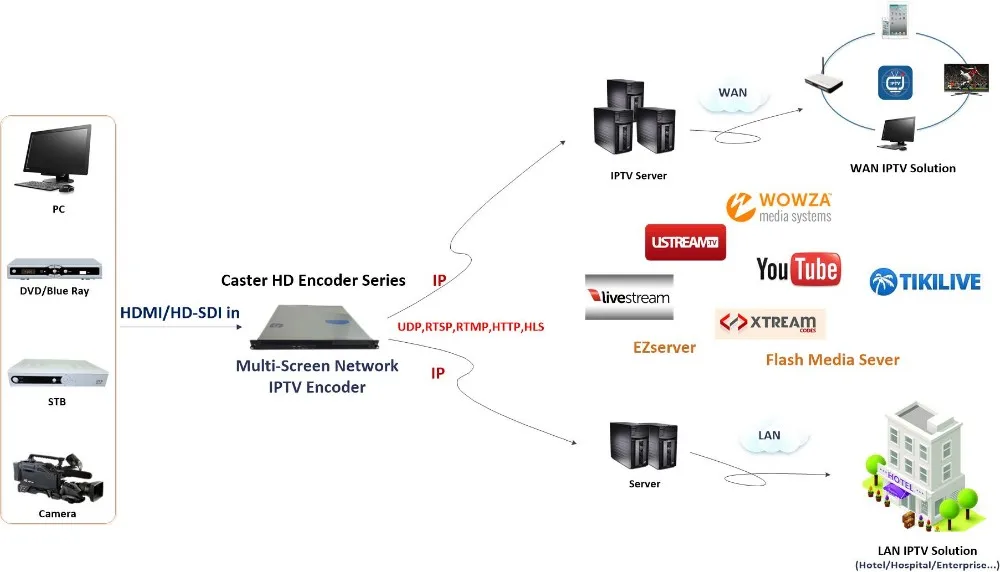

Application


Specifications
Input
Baseband input
4/8/12 channels HD-SDI
Output
IP Output type
Two Gig Ethernet Ports



Streaming format
Mpeg-2/H.264/H.263/MPEG4 SP/MPEG4 ASP;
MPEG-1 Layer II, AAC, AC3, AMR, WMA , MP3
TS  Over UDP/RTP/HTTP
3GP Over RTP
FLV Over HTTP/RTMP
HTTP Live streaming
Apple HLS (m3u8)
File Output
Encoding
3GPP/3GPP2/WMV/FLV/TS
File output support timing and capacitive record
Pre-processing
Image setting
Video adjustments（Brightness, contrast, Saturation, Hue）
Frame rate
from 2fps to 30fps
Aspect ratio
4:3 and 16:9, WSS control
Image insertion
LOGO insertion
Subtitle Overlay
Static or roll subtitle, up to 3 way (optional)
PID Configuration
Depending on the configuration, it forwards selected programs via IP datacasting; PAT, PMT, video PID, audio PID(s) and PCR information are transmitted.
Video encoding
Bitrate mode
VBR, CBR

Resolutions
80x64, 176x120, 128x96 (4:3), 176x128, 144x80, 176x144, 144x140 , 220x176, 160x90 (16:9), 240x176, 320x240, 352x288, 400x300, 480x360, 720x576, 854x480(16:9), 1280x720p, 1920x1080p



Max channels per RU
Signal Input
H.264 Out
Channels
Notes

HD-SDI

1080p in 4Mbps

Up to 12 streams
Take those information as reference, For details contact us
Up to multiple concurrent outputs per one stream input


Video codec
H.263 Profile0, Levels 10, 20, 30
MPEG-4 SP, Levels 0, 0b, 1, 2, 3
H.264 Baseline Levels 1,1b, 2, 3
H.264 Main Profile/High Profile 3.0- 5.1
MPEG-2 MP@ML 4:2:0
GOP Size
I-Frame Time Interval; B-Frame Number; Reference Frame
Video Bitrate
32kbps to 4Mbps
Enhancement filter
Deinterlacing; MABFF CABAC; Noise reduction; Sharpening; Visual Optimizing
Audio encoding
Audio encoding
LC-AAC, HE-AAC and HE-AACv2 (including Parametric Stereo)
MPEG-1 Layer, AC3, MP3
Sample rate
8khz to 48khz
Data rate
8kbps to 384kbps
Management
Interfaces
LCD display, key button, WEB
Environment
Power Supply
110-240 VAC
Operation temperature
0~50℃ (32 -122°F)
Storage temperature
-40-70°C (-40-158°F)
Power Consumption
50W
Dimensions
483mm (W) x 534mm (L) x 45mm (H)
Weight
11kg (24lbs)
