IRD1218 Best quality integrated receiver decoder Satellite TV to IP Gateway

8x RF Tuners FTA to IP Gateway and Multiplexed

IRD1218 Professional 8-channel RF to IP Gateway that Integrates Professional DVB-S2,Cable(DVB-C), ISDB-T,ATSC RF Receivers and De-encapsulates and Routes Any or All Selected Transport Streams via IP Output Port by SPTS/MPTS channels, with re-multiplexing and scrambling of multiple transport streams.

The IRD1218 enables an all-IP headend architecture,resulting in a more scalable and lower-cost transition to IP-based services.

It will be a ideal equipment for the IPTV network head and deliver the SPTS channels to next equipment which the transcoder and IPTV server,can much save the cost in your investment.

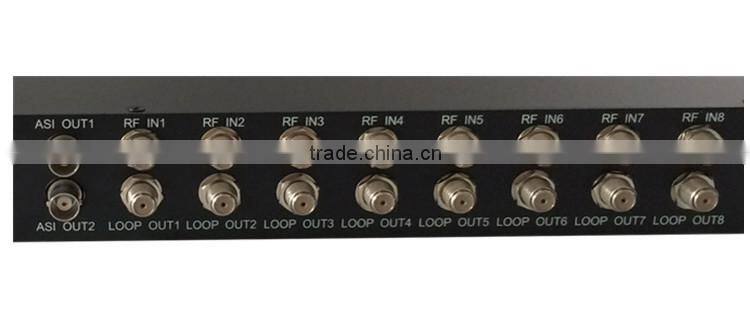

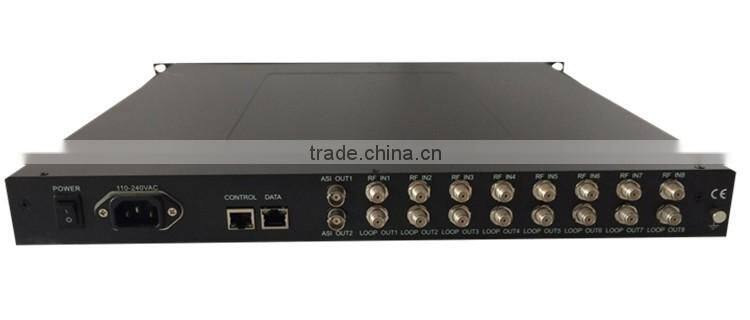

IRD1218 Rear panel

Feature

1.Up to 8 channels FTA Tuners per chassis

2.Professional DVB-S2,ISDB-T,ATSC DVB-C RF inputs option

3.Up to 244 streams-over-IP in SPTS/MPTS mode

4.Up to 2 separate ASI out after multiplexed

5.Support processing for multiplexing,scrambling,

6.PSI/SI Table in Mpts mode

7.Support BISS function（Extra charge）

8.De-encapsulates and Routes Any or All Selected Transport Streams outputs

9.Data stream Protocol of UDP, RTP

10.PID filtering, mapping and pass through

11.Easy-to-Use System Management

12.Output data rate range: GbE IP:1 ~ 800Mbps

ASI: 1-100Mbps

13.Management via WEB and local front panel

14.Integrated, compact 1-RU platform saves rack space and reduces operating costs
