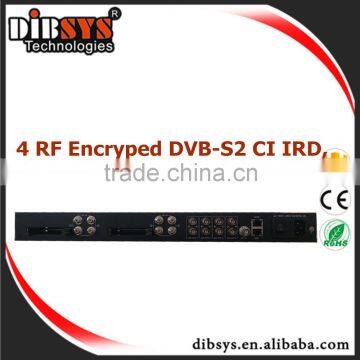

Professional 4x CI DVB-S2 IRD/Integrated Receiver Decorder with Common Interface,Option DVB-T2 and DVB-C RF in

4x RF to TS De-scramber & Multiplexing IP with CI Slot

IRD1340 is a high-integration and low cost professional satellite/cable receiver which integrates demodulation (DVB-C, T/T2, S/S2 optional), de-scrambler and multiplexing in one case to convert RF signals into TS output. It is a 1-U case which supports 4 tuner inputs, 1 ASI and IP out. The 4 CAMs/CIs accompanied can descramble the programs input from encrypted RF, ASI and IP. The CAM requires NO unsightly external power cords, cables, or additional remote control device.

To meet customers’ various requirements, the IRD1340 is also designed to de-mux programs from any input, and output TS over 48 SPTS & 4 MPTS UDP, RTP/RTSP.

It will be a ideal equipment for the DTV network head and edge of DTV backbone network, which can greatly save the cost in your investment.

Feature

1.4 Tuners (DVB-C,S/S2,T/T2 Option) inputs

2.1 x ASI input, 4 x IP(UDP) input;

3.Data stream Protocol of UDP,RTP/RTSP;

4.48 SPTS&4 MPTS IP over UDP and RTP/RTSP output;

5.Four CI interfaces which comply with EN50221 standard to support Multiple programs from Tuners/ASI/IP can be decrypted via 1 CAM;

6.4x separate MPEG-TS-over-IP outputs;

7.4x indenpent ASI outputs;

8.PCR correction;

9.Support maximum 128 PID mapping per input;

10.LCD display , remote control and firmware;

11.Easy-to-Use System Management :WEB NMS management,Update via web.
