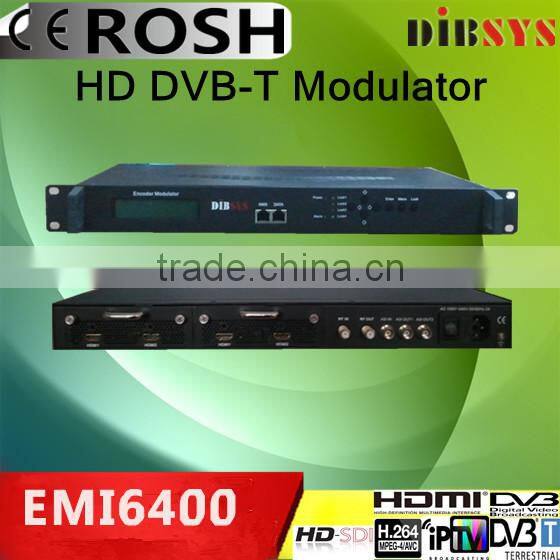

Help CenterMulti-Channel HD Cofdm Dvbt Modulator With H.264 Encoding
Related Products
-
DIBSYS 8VSB ATSC Modulator/Exciter With Pre Distortion Integrate Into Atsc TransmitterNegotiableMOQ: 1 Set -
Professional Isdb-t Modulator With Isdb-t Antenna and Isdb-t TransmitterNegotiableMOQ: 1 Set
-
Japan, Brazil,Argentina,Peru,philippines ISDB-Tb and Isdb-t ModulatorNegotiableMOQ: 1 Set
-
Indian and Pakistan Cable tv Equipment 8Channel Low Bitrate Mpeg4 Avc and Mpeg2 Video Encoder ASI and Udp/rtsp IP OutNegotiableMOQ: 1 Set
-
Professional 8* DVB-C FTA to ip Satellite ReceiverNegotiableMOQ: 1 Set
HDMI To HD H.264 Encoder built-in Multiplexer,
DVB-T Modulatorand RF Up-Conversion
The HDMI2OFDM is a Cost-effective,high definition MPEG4 AVC broadcast distribution encoder with OFDM modulation and RF up- conversion built in.It is equipped with up to 4 channels of HDMI inputs, 1 ASI input, and output with 2 ASI ports, 1 UDP IP port, and 1 RF port.
The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna,etc. Its output signal is to be received by a DVB-T standard TV, DVB-T STB.
Using the latest technology, DIBSYS has developed a direct conversion process that allows the Universal Modulator to provide an RF output from 30 MHz to 900 MHz with superior shoulders and MER.
- Up to 2 HD Encoding module per chassis, each module with two channels H.264 encoding
- MPEG-TS Over IP and ASI output built-in multiplexing with 1x ASI input
- Advanced MPEG-4 AVC HP@L4 video compression
- ASIC technologies which offer broadcast video quality, generally video bitrate advised 720p about 2mbps,1080p about 6mbps for lowest bitrates
- HDMI 1.3a interface, Auto detect the HDMI input of resolutions
- Resolution: 1080p,1080i,720p @50/60Hz
- The direct conversion process offers superior performance with Shoulder Levels≤-55 dBc and MER ≥42dB;Bandwidth 6,7,8Mhz
- RF frequency:30-900MHz,1khz step
- Selectable 1 or 2* DVB-T Modulation out (2 carriers combined), double output bandwidth
- The output level is adjustable from -30~-10dbm (81~97dbμV) in 0.1db step.
- High performance standard of Encoder/Modulator with superior RF specifications,stream and processing functionality
- PSI/SI generate and NIT insertion,LCN modify
- PID filter,Pass and remapping
- High quality video and audio outputs
- Management via WEB,Local front panel with LCD
- Easy-to-Use System Management
|
Input
|
Video Input |
Selectable single, dual, four channels HDMI 1.3a |
MPEG-4 AVC(H.264) High Profile Level 4.0,4.1,4.2 | ||
|
Resolution: 1920×1080_60p,1920×1080_50p, 1920×1080_60i,1920×1080_50i 1280×720_60p, 1280×720_50p | ||
Bit rate: 0.8-20Mbps per channel | ||
Audio Input |
HDMI embedded audio |
|
Sampling Rates: 48KHz | ||
Bit rate: 64, 128, 192, 256, 384kbps | ||
Audio encoding: MPEG-1 Audio Layer | ||
Quantization:24bit | ||
|
Multiplexing
|
1xASI inputs,BNC |
|
Selectable any or all programs of TS inputs | ||
PID passthrough | ||
LCN support (Logical Channel Number) | ||
Output |
ASI Output |
DVB Interface: Two identical ASI stream out |
Comply to EN 50083-9 ASI Standard, BNC, 75Ω | ||
MPEG-TS over IP Output |
IP output:100M Base-T Ethernet UDP/IP output, Multicast/Unicast supported |
|
Output Format: 188 bytes | ||
Output Rate: ≤80Mbps | ||
The IP stream will include all the program s and will be sent to the specified multicast or unicast IP address | ||
|
DVB-T RF output
|
DVB-T compliant with EN300744 standard |
|
Connector F-Type, 75 Ω | ||
1 RF port output | ||
Mixer with 1 RF port input | ||
RF output level:-30~-10dbm(81~97 dbμV), 0.1db step | ||
RF frequency range: 30 to 900 MHz, 1kHz steps | ||
QAM Constellations: QPSK,16QAM,64QAM | ||
|
Bandwidth: 6Mhz,7Mhz,8 Mhz Guard Interval:1/4, 1/8, 1/16, 1/32 | ||
FEC:1/2, 2/3, 3/4, 5/6, 7/8 | ||
Output Return Loss: ≥12dB | ||
Restrain Carrier: ≥58dB | ||
MER: ≥42dB | ||
SNR: ≥50dB | ||
|
Phase Noise: @1KHz ≥90dBc/Hz @10KHz ≥100dBc/Hz @100KHz≥105dBc/Hz) | ||
Inputs: MPEG-2 transport stream | ||
|
Management
|
100M Base-T Ethernet,RJ45,WEB |
|
7 keys: UP,DOWN LEFT,RIGHT,ENTER,ESC,LOCK | ||
LCD in Front Panel,LED indicate light | ||
|
Environment
|
Comply to GB13837-92 & GB8898-88 standard |
|
Power Supply: AC 100-250V 50/60Hz | ||
Power consumption: 20 W | ||
Operating temperature:-10 - 50°C | ||
Storage temperature: -10 - 75°C | ||
Dimensions: 300 (L)x483(W)x44mm(H) (1RU) | ||
Weight: 5kg | ||
1) High quality and low price
2) 3-year warranty
3) Perfect after-sale service and technical support
Types |
Input interfaces |
EMI6410 |
1xHDMI,1xASI,1xRF in,IP/ASI,RF Out |
EMI6420 |
2xHDMI,1xASI,1xRF in,IP/ASI,RF Out |
EMI6440 |
4xHDMI,1xASI,1xRF in,IP/ASI,RF Out |
EMI6415 |
1xHD-SDI,1xASI,1xRF in,IP/ASI,RF Out |
EMI6425 |
2xHD-SDI,1xASI,1xRF in,IP/ASI,RF Out |
EMI6445 |
4xHD-SDI,1xASI,1xRF in,IP/ASI,RF Out |
