Product Description

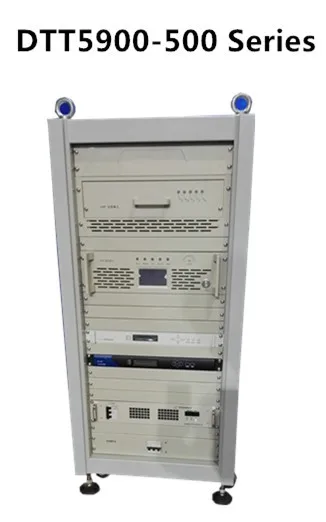

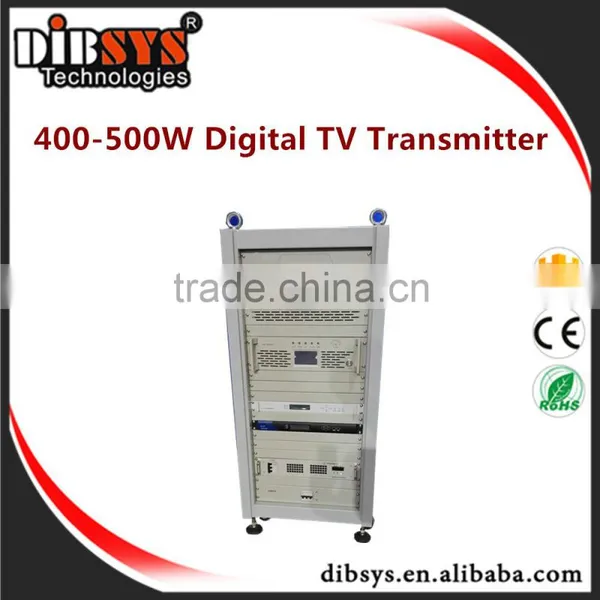

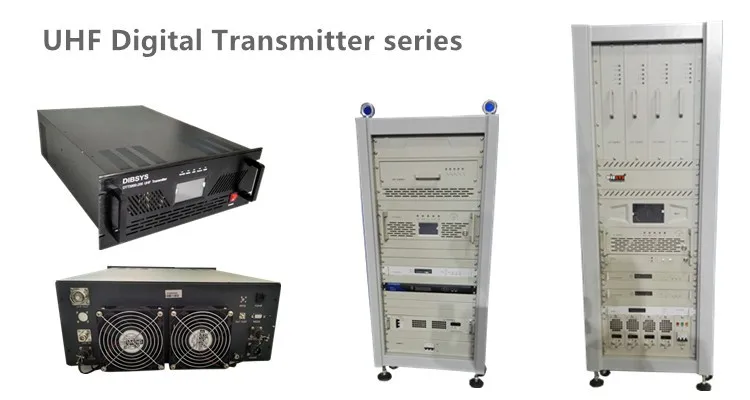

400-500W Digital TV Transmitter


Dibsys’s DTT5900-500 Series is a low power UHF terrestrial DTV transmitter, which inherits the high performance, high stability and high reliability of Dibsys’s many products. It can work in any frequency within UHF span, and the transmitting bandwidth is up to 80MHz. By incorporating our latest technologies of linear and non-linear digital adaptive pre-correction, RF delay and co-channel interference rejection, this system can fulfill the needs of single band or broadband transmission in small to medium-scale terrestrial coverage scenarios.


This series of products, which has advance design and simplified architecture are small in size, with the advantage of lower noise, higher efficiency, and outstanding anti-interference performance. They support DVB-T/H, DTMB, ATSC, ISDB-T/Tb and DVB-T2 standards, thus having greater flexibility and suitability in actual deployment.



Feature


1.470 to 860MHz

2.Compact structure, supporting up to 500W digital output power

3.Linear & non linear digital pre-correction function in exciter

4.Modular design across the whole system, easy installation, maintenance and/or upgrade

5.Low power consumption with high efficient LDMOS amplifiers to reduce electricity costs for operators

6.Suitable for different countries and/or areas because multiple DTT standards are complied with, including DVB-T/H, DTMB, ATSC, ISDB-T/Tb and DVB-T2

7.Low power consumption with linear design, further improves transmitting power and minimizes non-linear distortion, to satisfy transmission requirements of single band and broadband

8.Built-in color TFT LCD with touch screen in front panel of rack, supports monitoring & control of working states and any malfunction for any module without additional testing/monitoring equipment required, such as transmitting power, VSWR, working voltage/current, fan speed, IP address and so on

9.Extreme low group delay for DTV signal transmission

10.Multiple protect mechanisms are introduced for over-load, over-temperature, over-current and high VSWR

11.Large and dynamic Auto Gain Control (AGC) circuit ensures stability of output power

12.Suitable for single channel or broadband transmission enabling low-cost DTV network coverage

Application

---Digital TV head-end system

---IPTV, Over-the-air TV distance learning

---Remote live Rebroadcasts and real-time transmission

---HD or SD video via private IP networks

Specifications
Universal Specifications
Ordering Codes
DTT5900-400
DTT5900-500
Output Pewer(RMS)**
400W
500W
Number of Power Amplifiers
2×Power Amplifier Modules
Frequency Range(FIN)
470 to 860MHz
Channel Bandwidth
6MHz,8MHz
Supported Standands
DVB-T2,DVB-T/H,ATSC,ISDB-T/Tb
Transmitting Mode
Standard:Single band
Optional:Broadband(maximum 80MHz)
Supported Network
SFN or MFN
Cooling Method
Forced Air Cooling
Note:**The above output powers are colculated per ATSC/DTMB standards under single band mode
Main Components
Preamplifier
1×Preamplifier module(3U)
Exciter(Optional)**
1×DVB-T2/DTMB Exciter(modulater)(1U)
Power Splitter and Combiner
1×Distributor & Synthesizer(3U)
Monitoring and Control Unit
1×Monitoring control unit(2U) with 7’’LCD touch screen
Bandpass Filter(Optional)
Optional Single band or broadband Bandpass filter
Note:**Pleasec contact our sales representative for the other exciter/modulator requirments.
Environmental
Operating Temperature
0 to 45℃
Operating Humidity
0 to 95%，non-condensing
Power Supply
Power Supply
Three-Phase Option
4 wires(3-phase+neutral),342-418V AC,50Hz±5%
Single-Phase Option
2 wires,190-250V AC,50Hz±5%
Surge Protection
Built-in AC Surge Protector
Mechanical
Dimensions(W×H×D)
650mm×1480mm(27U)×870mm        25.6’’×58.3’’×34.3’’
Weight
180kg(396.8 lbs)
I/O Interface
TS Input
DVB-ASI(BNC female,75Ω)(DTMB/DVB-T2 Exciter)
MPEG-TS over IP
100/1000Base-T,RJ-45(DVB-T2 Exciter)
RF Output
EIA1-5/8’’flange
1PPS Clock Input
BNC,female,50Ω(DTMB/DVB-T2 Exciter)
10MHz Clock Input
BNC,female,50Ω(DTMB/DVB-T2 Exciter)
RF Monitor Output
SMA,female,50Ω
Monitoring & Control
Local Monitoring & Control
TFT LCD touch screen
Network Management Interdace
10/100Base-T Ethernet,1×RJ-45,
SupportingWeb-browser or SNMP network management
Electric Performance
Frequency Stability
≤±1×10-7(Internal reference )
≤±1×10-7(External 10MHz reference clock )
Frequency Accuracy
MFN,≤±100Hz,SFN,≤±1Hz
MER
≥33dB
Shoulder of Single
≤-36dB
In-band non-flatness
≤±0.5dB
AGC Power Control Range
±8dB
Stabilityo f Output Power
≤±0.5dB
Order Information
Model
DTT5900
-5
DTT5900
-10
DTT5900
-20
DTT5900
-30
DTT5900
-50
DTT5900
-100
DTT5900
-200
DTT5900
-300
Output Power (RMS)**
5W
10W
20W
30W
50W
100W
200W
300W
Model
DTT5900-800
DTT5900-1000
DTT5900-1200
DTT5900-1600
Output Pewer(RMS)**
800W
1000W
1200W
1600W
