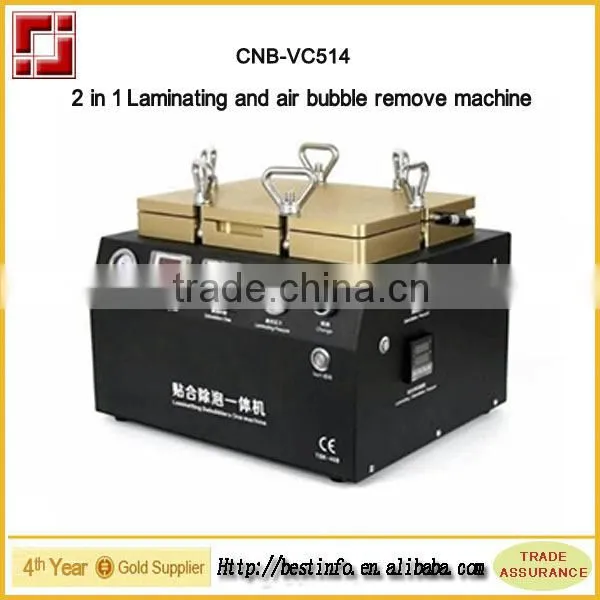

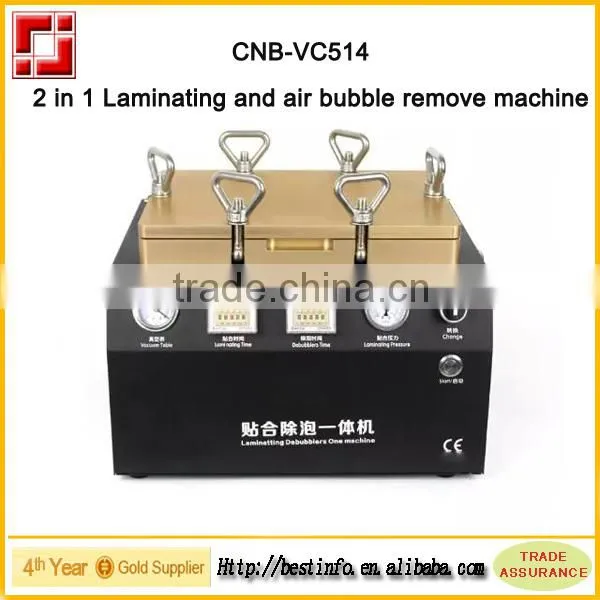

2 in 1 Laminating machine
Feature:
1, Universal mould
2, No need bubble remover
3, Built in vacuum pump
Operation Process:
A,Screen-Pressing Process:
1 Check whether the connected power.
2 Switch on the power and press the button to boot the equipment to check that whether the equipment can operate normally or not.
3 Put the LCD with the OCA glue on the cut silicone (please stagger the silicone away from the IC position of the flat cable).
4 Open the gate and put the tray on the cabinet.
5 Close the cabinet gate.
6 Press button to boot the equipment.
7 Wait patiently for 2 to 6 minutes.
8 Wait until the two indicator lights off or the vacuum table turns to the minimal value. Open the cabinet gate and take out the product.
9 The process completed, check whether the product is normal or not.
B. Debubbling Process:
Note: when coating the OCA glue, the bubbles may be too large in some cases, which results in the bubbles existing after lamination. Please follow the following methods to debubble.
1 Please place the laminated assembly on the foam (please make sure that the foam stagger from the IC of flat cable, as illustrated).
2 Open the gate and place the tray with products on the cabinet.
3 Close the gate.
4 Press the Button to put down the equipment.
5 Predict the duration based on the exact situation.
6 Again press to put down the machine.
Safety Regulations:
For your safety, please read this handbook carefully to be more familiar with the application and limitations of the machines and the related potential risks.
A. Read the instructions before using the equipment.
B. Do not boot the equipment before closing the bin gate.
C. This machine adopts the third grounding method. It is important to keep the grounding normal. Poor grounding will cause the dangers towards the machine and user.
D. Electricity Box should not be opened without professional staffs are present.
Product show:
Company show:
