2016 Recommended DVB-C Headend Equipment

Name: 2016 Recommended DVB-C Headend Equipment
Brand: Dibsys
SKU: 110657585
Availability: InStock

2016 Recommended DVB-C Headend Equipment thumbnail-1

2016 Recommended DVB-C Headend Equipment photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Dibsys

Model Number:

DVB-C Headend

Contact Supplier Request Quote Chat Now

Hangzhou DIBSYS Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Hangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Dibsys

Model Number DVB-C Headend

Product Description

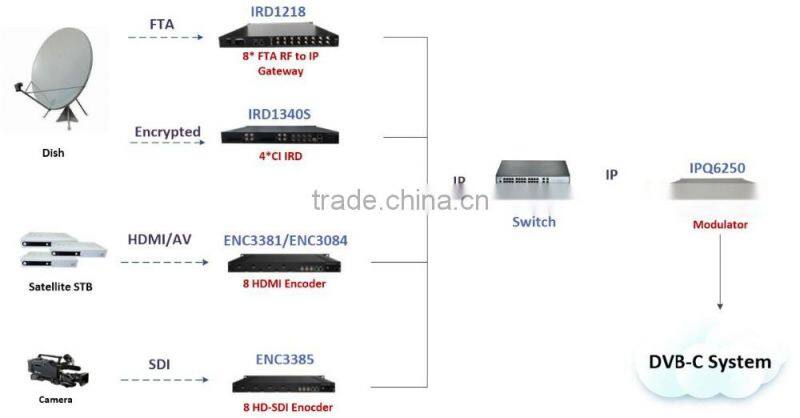

Recommended DVB-C Headend

Nowadays, digital TV has gradually replaced the traditional analog TV, especially DVB-C cable TV is now very popular. According to different clients’ project requirements, we configure the following effective cost DVB-C headend solution:

Features

1. For FTA channels which are directly from satellite

Here you can check our 8x DVB-S/S2 FTA to IP gateway RD1218, which can with 244 SPTS over IP output, it can also support multiplexing and scrambling.

2. For encrypted channels which are directly from satellite

2.1 if you can get the CAM card from your local stream provider, then here I want to share you 4x DVB-S/S2 processor with 4 CI solt IRD1340.

2.2 if you are unable to get the CAM card, then you can use satellite receiver like dreambox , output HDMI or CVBS , then can connect to our encoder.

2.2.1 SD channels, here with following encoders:

MPEG-2 video format: You can choose this video encoding format, when you have enough bandwidth and spectrum resource. Then you can check our 8 channels MPEG-2 low bitrate encoder ENC3084H.

H.264 video format: If you have limited bandwidth, you can check our 8 channels MPEG-2/H.264 SD encoder ENC3184H.

2.2.2 HD channels, then you can consider 8 channels H.264 HDMI to IP encoder ENC3381. which can with AAC and SD resolution out upon your requirement.

3. For modulator part. here please allow me show you the DVB-C model

If more than 50 channels, then please check IPQ6250, up to 48 QAM channels IPQAM modulator, 16 QAM channels per module, total can with 3 module, reach 48 QAM channels.

Product List

IRD
DVB FTA RF Tuners to IP Gateway	IRD1218	1.8ch DVB-S2/T2/ISDB-T/ ATSC FTA RF, with BISS mode 2.Up to 244 IP streaming and 2seperate ASI with multiplexed	1.Most channels from FTA DVB-S2 2.Low cost 3.Not need strictly video bitrate if you have enough Internet BW
DVB-S2 IRD And Descrambler	IRD1340S	1.4 DVB-s2 RF with CI slot 2.Up to 48 SPTS/4 MPTS out after descrambled 3.Up to 12 encrypted channels per CI slot 4.MPEG2 and H.264 HD/SD	1.If the others channels from Encrypted satellite TP, and you can get the Cam Card to descramble 2.Get the channels directly without trans- coding Not need strictly video bitrate if you have enough Internet BW

Encoder
MPEG2 SD Encoder	ENC3084	1.8x CVBS and 8 pair of R/L audio unbalance analog inputs with 1xASI multiplexed 2.Low bitrate mpeg2 encoding 3.Screen ratio: 4:3,16:9,2.21:1 4.Audio MPEG-1 L2 AAC, AC3 5.8x SPTS/MPTS over UDP as mirror of ASI out	1.Low cost 2.Source signal from encrypted dvb-s2 program of Satellite receiver 3.Source signal from Local source(dvd player)
H.264/MPEG4 AVC HD Encoder	ENC3381	1.8ch HDMI(HDCP) input 2.With 1x ASI input multiplexed 3.Simultaneous outputs SPTS/MPTS over GbE IP 4.Support UDP/RTP over IP out 5.With MPEG-1 layer2 audio encoding, option AAC 6.Resolution: 1080p/I, 720p, option for SD 480I,576I	1.Local player and DVB-S2 Encrypted channels from HD box with HDMI out 2.For the Good Video watch by the big LCD TV.
H.264/MPEG4 AVC HD Encoder	ENC3385	8*HDSDI
Full HD Mpeg-4 AVC Encoder	ENC3341	1.4xHDMI inputs(HDCP option) 2.Simultaneous outputs via MPTS/SPTS over IP 3.ASIC technologies 4.UDP/RTP protocol, 5.Municast, Unicast 6.MPEG-1 L2,Opt- AAC

Modulator
IPQAM Modualtor	IPQ6250	1.Up to 3 Models,16 QAM per Model with 2 GbE ip input and 2 RF out 2.Multiplexed or Scrambled TS over UDP output 3.Up to four DVB SimulCrypt CAS(s) 4.Two 1000Base-T ports 5.16/32/64/128/256QAM modulation 6.MER≥42db

Technical Benefits

High Performance

- Supports 16 programs at least and a large number of STB users

- Advanced in video compression technology to deliver unsurpassed video quality at lowest bitrates and low latency

Flexibility and Stability

- Modular design across the whole system, easy installation, maintenance and upgrade

- Add or exchange the equipment as necessary

- 1+1 redundant & hot-swappable power supplies for high reliability and stability of system.

High Adaptability and Availability

- Suitable for different common channels with one model of modulator

- Pay-as-you-grow modular design, flexible configurations and licensing mechanism.

Lower CAPEX/OPEX

- Low power consumption with high efficient reduce electricity cost for operators

-Adopt Web browser and SNMP management with remote monitoring and control, then can greatly reduce management time and operating expenses (OPEX) of operators.

- High quality equipment built in multiplexing and scrambling simplify the system and save your money.
