Home > Products > DVB-C(QAM) > Professional HD H264 IP Encoder ASI for tv broadcasting system and IPTV headend

Professional HD H264 IP Encoder ASI for tv broadcasting system and IPTV headend

FOB Price

USD $999 - $2,999 / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port Shanghai/Hangzhou
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	Dibsys
Model Number	ENC3381

Product Description

ENC3381 creates multi-channels H.264 channel on your building,campus or metropolitan-area IP network from the output of various video devices. These include video cameras,DVD/Blu-ray players, digital signal systems, personal computers and even set-top boxes for premium TV channels. Encoder blades are available for Full HD MPEG4 AVC encoding. with high density,high reliability and advanced compress arithmetic. It is equipped with the latest advances in video compression technology to deliver unsurpassed video quality at lowest bitrates and low latency, It also can be used to support IPTV, broadcast and video surveillance applications.

Moreover, it has an ASI input to multiplex the input TS with the 8 encoded SPTS to generate a MPTS output.

Feature

1.Up to 8 channels HDMI per chassis(HDCP)

2.1 way ASI inputs with multiplexing

3.Advanced MPEG-4 AVC HP@L4 video compression

4.ASIC technologies which offer broadcast video quality, generally video bitrate advised 720p about 2mbps,1080p about 6mbps for lowest bitrates

5.HDMI 1.3a interface, Auto detect the HDMI input of resolutions

6.Simultaneous outputs via SPTS/MPTS over GbE IP Port

7.UDP/RTP protocol,Municast,Unicast

8.Filter Null packet Support

9.Supports resolution: 1080p@50/60Hz, 1080i@50/60Hz, 720p@50/60Hz,480I,576I

10.From 1 to 7 TS packets/IP packet

11.MPEG-1 Layer2 , HE-AAC(V2) (option)
or LC-AAC(option) audio encoding

12.Management via External SNMP and local front panel

13.Easy-to-Use System Management

14.Built-in time base correction and video pre-processing

15.Either MPTS or any of SPTS via ASI out

16.Reliable:Hardware based for 24/7 operation

INPUTS

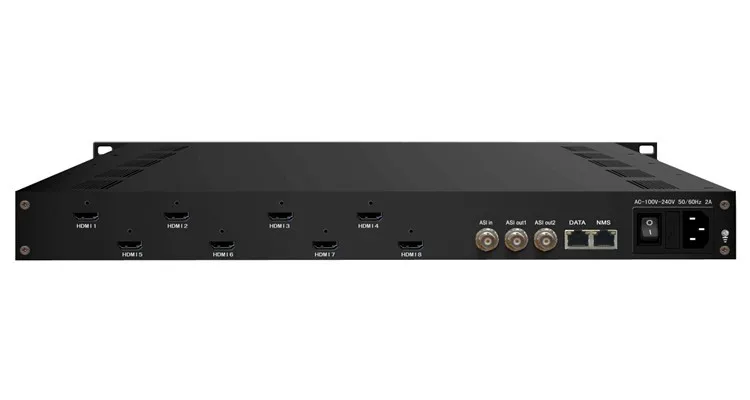

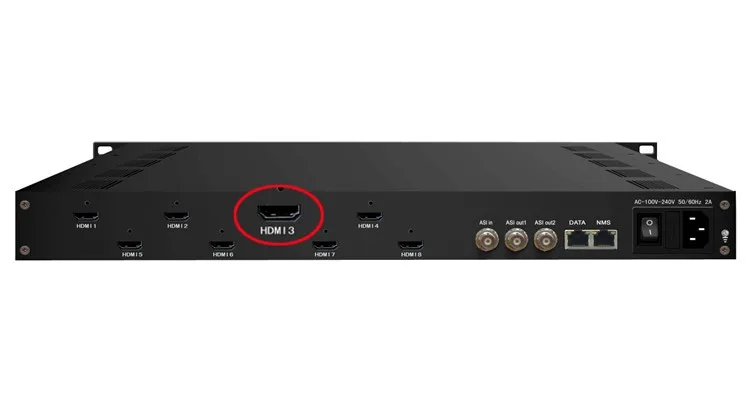

Video Input	8 x HDMI 1.3a
Audio Input	HDMI embedded audio
Multiplexing	1xASI inputs,BNC

OUTPUTS
ASI Output	DVB Interface: Two identical ASI stream out in MPTS Mode, Comply to EN 50083-9 ASI Standard, BNC, 75Ω
MPEG-TS over IP Output	IP output:100M Base-T Ethernet UDP/IP output, Multicast/Unicast supported
	Output Format: 188 bytes
	SPTS or MPTS mode :configure before it leave factory
	SPTS mode: means creation of multiple SPTS which can be multicast/unicast to 8 different ports or IP addresses MPTS mode: means set one MPTS to one IP address or port

Video Encoding
	Comply to the International standard:MPEG-4 AVC High Profile, Level 4.0
	Aspect ratio:16:9(HD)
	Bit rate: 0.8Mbps~20Mbps
	Scene change detection
	Bit rate mode: VBR,CBR
	Brightness / Contrast / Saturation / Chroma /Horizontal Offset
	GOP Structure: IBBP
	Stereo or ingle channel

Audio Encoding
	Sampling Rates: 48KHz
	Bit rate: 32,64, 128, 192, 256, 384kbps
	Audio encoding: MPEG-1 Audio Layer
	Quantization:24bit

Resolution
	Accordance to CCIR601 standard
	Resolution;1920×1080_60p,1920×1080_50p, 1920×1080_60i,1920×1080_50i 1280×720_60p, 1280×720_50p

Management
	10/100 Base T Ethernet, RJ45, SNMP
	7 keys: Up, Down, Left, Right, Enter, Esc, Lock
	Front-panel LCD configuration, LED indicate light
	SNMP protocol support

Environment
	Comply to GB13837-92 & GB8898-88 standard
	Power Supply: AC 100-250V 50/60Hz
	Power consumption: 20 W
	Operating temperature:-10 - 50°C
	Storage temperature: -10 - 75°C
	Dimensions: 300(L)x483(W)x 44mm(H) (1RU)
	Weight: 7kg

Order informations
ENC3210	Single Channels HD/SD Encoder/Transcoder
ENC3240	Four Channels Broadcast HD Encoder HDMI
ENC3245	Four channels Broadcast HD Encoder HDMI+HDSDI Inputs
ENC3211	Single Channels HD/SD Encoder
ENC3241	Four channels Professional HD Encoder HDMI Inputs
ENC3311	Single Channels Full HD/SD Encoder
ENC3341	Four channels Professional Full HD Encoder HDMI Inputs

ENC3311

ENC3345

ENC3245
