tv Station Equipment Professional MPEG2/H.264 HD to IP Video Decoder With HD-MI/HDSDI/AV and ASI/IP Out

Advanced HD/SD H.264 Processor and IRDs

DIBSYS’s IRD1301 is the professional high scalable, integrated receiver decoder(IRD), Multiple inputs to IP Gate-way and MPEG-4 AVC stream processor. Featuring broadcast-quality HD/SD MPEG-2,MPEG-4 AVC (H.264) video decoders, It is ideal for full transport-stream distribution and contribution applications, including DVB scrambling and digital turnaround processing.

It supports a rich set of input options, ranging from multiple DVB-S/S2 (QPSK,8PSK), DVB-C(QAM), DVB- T/T2(COFDM), ISDB-T, ATSC-T to IP and DVB-ASI, Advanced features and flexibility for IPTV and HDTV Digital Headend Systems IPTV streams can also be received and sent over IP. The platform’s native IP interface seamlessly integrates into scalable,low-cost IP networks.

It is also a cost-effective IP to SDI/HDMI gateway, Which can distribute and deliver video with HDMI to IP H.264 encoder (ENC3211), it's point to point video application.

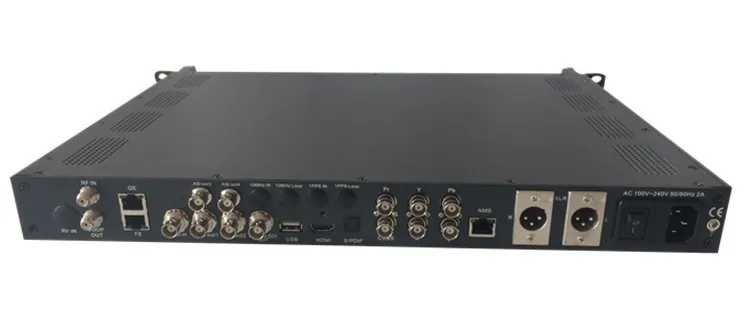

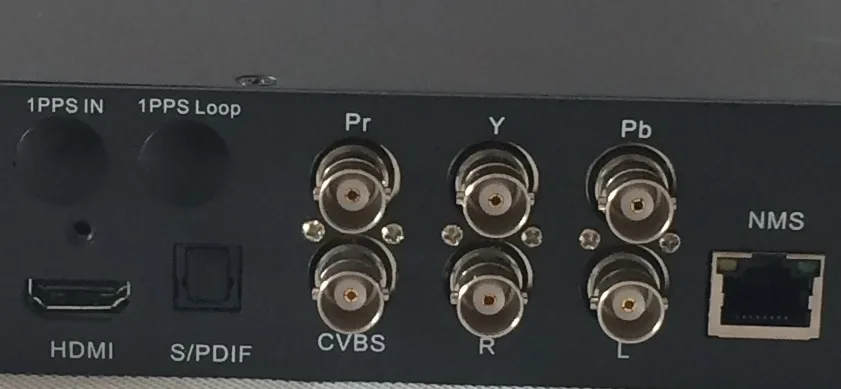

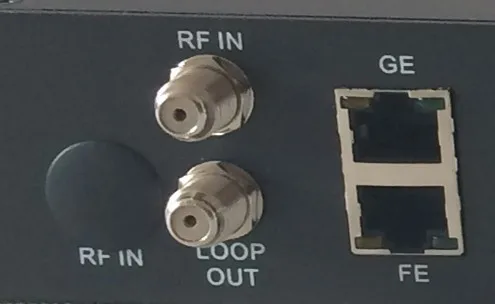

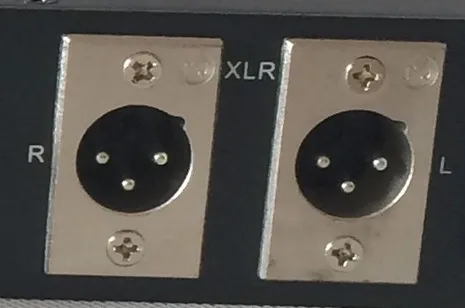

IRD1301 Rear panel

Feature

1.TS Descrambler with two integrated DVB-CI/CI+ slot per chassis,up to decrypt 8 channel per CI module

2.Standard definition MAPEG-2 MP@ML,MPEG-4 AVC Main/High Profile 4.0,3.0 video decoding

3.MPEG-1 Layer2,HE-AAC(V2), LC-AAC(option) , AC3 passthrough audio decoding

4.Selectable multiple inputs Tuners (DVB-S/S2/C/T /T2/ ISDB-T/ATSC-T), IP,ASI

5.Multiple Input to IP and DVB-ASI Mode out:Mux IP/Tuner/ASI-Passthrough

6.Both MPTS and up to 8 SPTS separate IP and Port outputs

7.Two group separate ASI out, Two duplicate ASI per Group

8.Video decoding Monitor LCD in the front panel

9.SD/HD-SDI,HDMI,YPbPr,Composite and R/L analog audio,S-Video,XLR digital audio outputs

10.Embedded BISS-1 and BISS-E Mode (DSNG-CA)

11.EBU SUBTITLE and DVB SUBTITLE supported

12.With full remultiplexing,capabilities, including PID filtering, remapping and table regeneration

13.More scalable and lower-cost transition to IP- based services.

14.Resolution: PAL,NTSC,SECAM,720p,1080i

15.Aspect Ratio Conversion 16:9,4:3

16.FullHigh accuracy PCR correction

17.Management via SNMP,Local front panel with LCD

18.Input Single Strength and Quality self-detection

19.Easy-to-Use System Management
