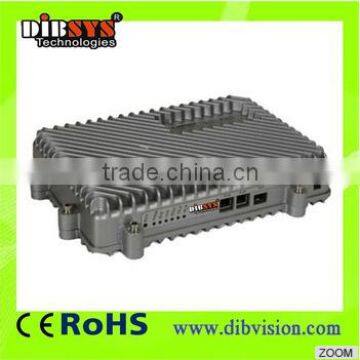

Compact 1000M indoor CMTS DOCSIS3.0 CMTS equipment bulit-in IPQAM module

Name: Compact 1000M indoor CMTS DOCSIS3.0 CMTS equipment bulit-in IPQAM module
Brand: DIBSYS
Price: USD $1 - 5,000 / Set

FOB Price

USD $1 - $5,000 / Set

1 Set(Min.Order)

Supply Ability 0 per Month
Port Shanghai
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

DIBSYS

Model Number:

DB-CMTS8210

Product Description

Indoor chassis CMTS

Overview

The indoor chassis CMTS product follow DOCSIS 3.0 standard, Using the full DOCSIS3.0, chassis

CMTS and user device fits international DOCSIS standard, effectively meet the technical standard of

future DOCSIS. This product products support 16 downstream channels to 800Mbps; 4 upstream channels to 160Mbps, fulfilling the broadband accessing of 960Mbps. It can support 511 Cable Modems online at

the same time, fully compatible with the DOCSIS2.0,3.0 Cable Modem.

Small dimension interior design, size is only 260mm×331mm×57mm, and can bedeployed in the limited

space of the corridor or well.

Key Features

1 SFP interface and 1 1000M LAN business port.
1 100M LAN management port.
Build-in CATV signal mixer, 2in 2out.
Small dimension design, size is only 260mm×331mm×57mm.

Support bulit in IPQAM module
External adpter, power supply is 12V/4A
Maximum output signal is 98dbuv
Upsream frequency range:5-65Mhz, down stream frequency range:87~1000Mhz

Technical specifications

DS channel specification
QAM standard	Annex A,B, C
QAM modulation	64QAM,256QAM
Uni-channel speed	36M@64QAM
	51M@256QAM
DS channels	16
DS maxi speed	800Mbps
Work frequency	87Mhz - 1000Mhz
Channel bandwidth	8Mhz
Input power	43dbmv (8 channels)
	38dbmv (16 channels)
Power adjusted step	0.5db
Post- balance MER	42db
External noise	<-20dbm
US channel specification
US channels	4
US modulation	QFSK,16QAM,64QAM
Uni-channel speed	0.32Mbps - 40Mbps
US maxi speed	160Mbps
Input frequency range	5Mhz - 65Mhz
Input level range	=H21
RF output specfication
RF IN interface	F connector,75
RF IN amount	2xRFin
RF OUT interface	F connector,75
RF OUT amount	2xRFout
Data port specification
Net port speed	10/100/1000Mbps
Net port type	1 RJ45 electric port/1 SFP module interface
Full speed support	Support
Built-in ONU module	Not support
Management port specificaiton
RS232 serial	Support
Command line interface(CLI)	Support
Telnet or SSH	Support
SNMPv1,v2,v3	Support
DOCSIS MIBs	Support
Other function
Maximum CM amount		500
Dynamic load balance		Support
DHCP relay		option82, option60
Qos		Support
VLAN process		Support
Environment specfication
Temperature		-25℃ - 75℃
Humility		10% - 90%
Alone supply		90 - 264V
Power		<35w
60Vcentralized supply		Support optional
Size(mm)		260×331×57

Our advantages

1) High quality and low price

2) 3-year warranty

3) Perfect after-sale service and technical support
