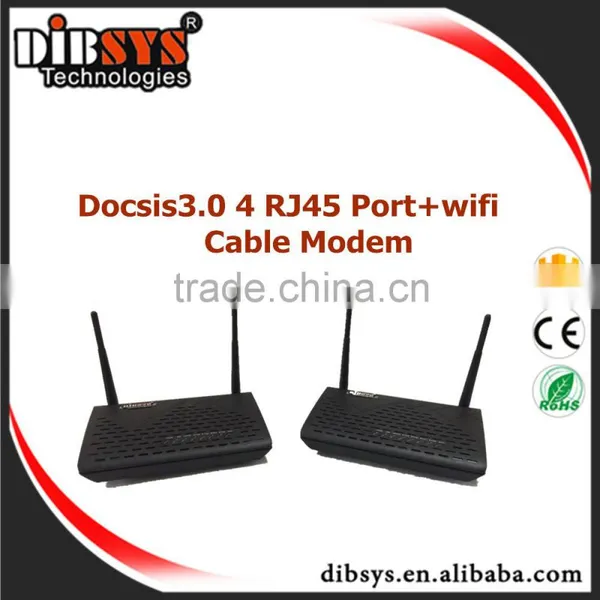

Help CenterDIBSYS Cable Modem DOCSIS 3.0 With 4 LAN Port and Wireless Access Point
Related Products
-
High Security 500 Docsis Cable Modem Supported All in One CMTS Header With Optical, Gpon ONU,Euro DOCSIS 3.0/C-DOCSIS ModuleUS$ 1 - 3,999MOQ: 1 Set -
Deployment of Optical Node Mini CMTS Docsis 3.0/2.0 Headend For Cable Operators With EPON/10G EPON/GPON ONUUS$ 1 - 3,999MOQ: 1 Set
-
Internet Over Coax Mini Docsis 3.0 Cmts Cover to 500 Cable Modem Video GatewayUS$ 1 - 3,999MOQ: 1 Set
-
DB-CMTS8210 Docsis3.0 Indoor Chassis CMTS With 2xRF InoutUS$ 1 - 5,000MOQ: 1 Set
-
DIBSYS CMTS8100 DOCSIS CMTS Digital Catv Headend Equipment up to 16 Downstream and 4 Upstream Qam ChannelsUS$ 1 - 3,499MOQ: 1 Set
Dibsys Cable Moderm
Overview
DOCSIS system include CMTS(Headend cable network ) and CM(user end).The main function of DOCSIS Cable Modem system is transparently transmitting IP packets between the front end and the user end.
Technical principle
After the Modem Cable power, the downlink frequency of the front end is automatically searched,
and the downstream frequency is found, the uplink channel is determined from the downlink data.CMTS is connected with the front-end device, and exchange information, including the upstream level, the Dynamic Host Configuration Protocol (DHCP) and the IP address of the small file transfer protocol (TFTP) server, etc.Modem Cable has online features, even if the user does not use, as long as the power is not cut off, and the front end always to maintain the exchange of information, the user can always on-line.
Cable moderm has memory function, when the power is powered up, the data before the power storage are exchanged with the front data , and can quickly complete the search process.
CM online process
Key Features
l The definition is according to C-DOCSIS standard, meet europe DOCSIS 3.0/DOCSIS 3.0
l 10/100/1000RJ45 ethernet adaptive port, advanced firewall and 802.11n wireless access
l Downstream is 8 frequency points, upstream is 4 frequency points
l Downstream frequency is 108MHz to 1000MHz,64QAM,256QAM and 1024QAM
l Upstream frequency is 5 to 65MHz, QPSK,8/16/32/64/128/256QAM
Technical specifications
Model |
DB-CM314(CM3.0 WIFI) |
Appearance | |
Interface |
1*RF interface |
100/1000Mbps Adaptive Ethernet port*4 | |
1*USB2.0 | |
Antenna |
2*External antenna,2*Internal antenna |
Button |
1*Reset button |
Power supply |
DC 12V/1A |
Size |
212*160*36 mm |
Weight |
520g |
RF downlink parameters | |
Frequency range |
North American Standard:DOCSIS:88-1GHz |
Bandwith |
6-8MHz |
Modulation |
64,256QAM |
Bitrate |
30Mbps(64QAM+American Standard:DOCSIS) 41Mbps(64QAMEuropean Standard:DOCSIS) |
Input level |
+/- 15 dBmV |
Input impedance |
75 Ohms |
RF uplink parameters | |
Frequency range |
North American Standard:DOCSIS:5-42MHz |
Bandwith |
200/400/800/1600/3200/6400 KHz |
Modulation |
QPSK,8QAM,16QAM,32QAM,64QAM,128QAM,4U/S |
Bitrate |
30Mbps(TDMA),35MHz(S-CDMA) |
Output level |
QPSK:+8-58dBmV |
Wireless Parameters | |
Wireless Protocol |
IEEE802.11 b/g/n |
Frequency range |
2.4GHz |
Transmission rate |
150Mbps |
Protocol | |
Network |
TCP/IP/UDP/ARP/ICMP/DHCP/TP/TFTP/SNMP/HTTP |
Application |
SNMP V1/V2/V3 |
Management |
Support local WEB login |
Environment | |
Operation temperature |
0-40℃ |
Operation humidity |
5-95%RH Non-condensing |
LED indicators
LED |
Color |
Situation |
Explain |
POWER |
Green |
On |
CM:Normal supply |
Off |
CM:No power supply |
||
DS |
Green/Blue |
On |
CM: Online |
Off |
CM:Offline |
||
Flickering |
CM:Getting profile |
||
On (Blue) |
W/DS Locked |
||
US |
Green/Blue |
Flickering |
CM:adapting the uplink signal |
On |
Lock the uplink signal |
||
Off |
Idle |
||
On (Blue) |
W/US Locked |
||
ONLINE |
Green |
Flickering |
CM :Getting profile |
On |
CM:Online |
||
Off |
CM:Offline |
||
LINK1~ LINK 4 |
Green/Orange |
On(Green)- |
Ethernet port plug the network cable (1000M mode) |
On(Orange) |
Ethernet port plug the network cable (100M mode) |
||
Off |
Ethernet port unplugged the network cable |
||
Flickering(Green) |
Date exchanging(1000M mode) |
||
Flickering(Orange) |
Date exchanging(100M mode) |
||
WLAN |
Green |
On |
Turn on Wi-Fi |
Off |
Turn off Wi-Fi |
||
WPS |
Green |
Flickering |
WPS pairing |
On |
Turn on WPS |
||
Off |
Turn off WPS |
Our advantages
1) High quality and low price
2) 3-year warranty
3) Perfect after-sale service and technical support
