low cost iptv hd sdi encoder h.265 hevc encoder

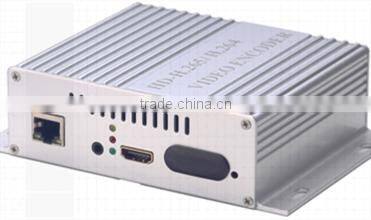

MagicboxHD401 is the world's New Generation HEVC H.265/H.264 hardware encoder in a professional grade, compact streaming appliance. Its advanced HEVC compression enables users to stream broadcast quality 1080p video with up to 50% bandwidth savings compared to today's H.264 standards.

The product has the function of supporting 1 channel HDMI or HDSDI video capture, generate dual stream of h.264/h.265 encoding output and the MP3, AAC audio format. The product has high integration and reasonable price which can generate an H.265- encoded stream compliant with RTSP , HTTP, UDP, RTP and RTMP protocols.

MagicboxHD401 boasts an all- hardware compression chip for real time encoding with advanced audio and metadata handling all packaged in a portable device with low power consumption, which makes it possible to take next generation HEVC encoding from the server rooms into the field for professional and industrial applications with easy integration to education, health care, IPTV, conference, remote education, news interview, banking, transportation and other industries.

Next-Generation HEVC/H.265 Streaming Reduces IPTV Bandwidth Costs

Whether it's from live news broadcasting in the field, Point-to- Point contribution of HD video, live streamingfrom or within sports venues or fast move picture - demand for high quality real- time video anywhere, anytime is growing. The increase of video services translates to rising expenses for purchasing more satellite, cellular or other dedicated network bandwidth. The Encoder’s cutting edge HEVC compression and streaming capabilities allows broadcasters, IPTV providers, A/V teams, corporate IT to reduce Operating Expenses (OPEX) for video streaming projects while managing demand for more video services and requests for higher quality video on existing bandwidth capability.

Flexible Connectivity Options with H.264 Backward Compatibility
Integrating with any video environment - the Encoder offers the largest selection of input types in the industry including HD/SD- SDI,HDMI and Composite video as well as analog and digital audio (embedded and discrete). A built- in video matrix enables routing of video sources to both the HEVC and H.264 compression cores for generating streams in both H.265 and H.264 formats. The on-board hardware scaler can be used for real-time downscaling, frame- sampling and flexible cropping options delivering the most optimized video output for your application

The Most Complete HEVC Offering for IPTV and Situational Awareness Video
The Encoder can be used as stand- alone or integrated seamlessly into an End to End HEVC solution,DIBSYS’s comprehensive HEVC product offering includes encoders and streaming appliances, IPTV decoding appliances, video portal for distribution, archiving and playback, desktop and mobile video players with SDK for integration projects. Take advantage of the revolutionary compression technology for deploying bandwidth efficient video solutions that dramatically reduce bandwidth costs, extend high quality video reach to disadvantaged users and allow more content to be streamed on existing network capacity.

Feature

1.HDMI (HDCP) or HDSDI Inputs per module

2.Two Protocol, Bitrate, Resolution, Profile per HDMI Source Input

3.support insert picture LOGO, only PNG format. Please name it: logo.png.

4.Will come into effect as soon as it is set up, no need to restart.

5.Support marquee ( scrolling subtitles), Chinese : 127 characters tops, English : 255 characters tops . Can adjust the font color, size.

6.Support the standard flow driven architecture of Microsoft, (the WDM architecture), Support the WMENCODE of Microsoft

7.Each channel stream can simultaneously support any one among the UDP/RTSP/RTP/HTTP protocol, including RTMP protocol output

8.Plug in Internet line, work without HD collection card

9.Support simultaneous display of one computer and multiple devices

10.Supports both HEVC and H.264 – built for the future without losing support for legacy receivers/decoders

11.HD-to-SD downscale conversion

12.Support CBR and VBR mode

13.Low power design

14.WEB Management

15.Easy-to-Use System Management
