CATV Headend Multi-channels H.264 HD Encoder

CATV Headend Multi-channels H.264 HD Encoder thumbnail-1
CATV Headend Multi-channels H.264 HD Encoder photo-1
US$ 2,800 - 4,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Dibsys
Model Number:
ENC3381
Contact Supplier Request Quote Chat Now
Hangzhou DIBSYS Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Hangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Dibsys
Model Number ENC3381
Product Description

ENC3381 creates multi-channels H.264 channel on your building,campus or metropolitan-area IP network from the output of various video devices. These include video cameras,DVD/Blu-ray players, digital signal systems, personal computers and even set-top boxes for premium TV channels. Encoder blades are available for Full HD MPEG4 AVC encoding. with high density,high reliability and advanced compress arithmetic. It is equipped with the latest advances in video compression technology to deliver unsurpassed video quality at lowest bitrates and low latency, It also can be used to support IPTV, broadcast and video surveillance applications.

Moreover, it has an ASI input to multiplex the input TS with the 8 encoded SPTS to generate a MPTS output.

Feature

1.Up to 8 channels HDMI per chassis(HDCP)

2.1 way ASI inputs with multiplexing

3.Advanced MPEG-4 AVC HP@L4 video compression

4.ASIC technologies which offer broadcast video quality, generally video bitrate advised 720p about 2mbps,1080p about 6mbps for lowest bitrates

5.HDMI 1.3a interface, Auto detect the HDMI input of resolutions

6.Simultaneous outputs via SPTS/MPTS over GbE IP Port

7.UDP/RTP protocol,Municast,Unicast

8.Filter Null packet Support

9.Supports resolution: 1080p@50/60Hz, 1080i@50/60Hz, 720p@50/60Hz,480I,576I

10.From 1 to 7 TS packets/IP packet

11.MPEG-1 Layer2 , HE-AAC(V2) (option)
or LC-AAC(option) audio encoding

12.Management via External SNMP and local front panel

13.Easy-to-Use System Management

14.Built-in time base correction and video pre-processing

15.Either MPTS or any of SPTS via ASI out

16.Reliable:Hardware based for 24/7 operation

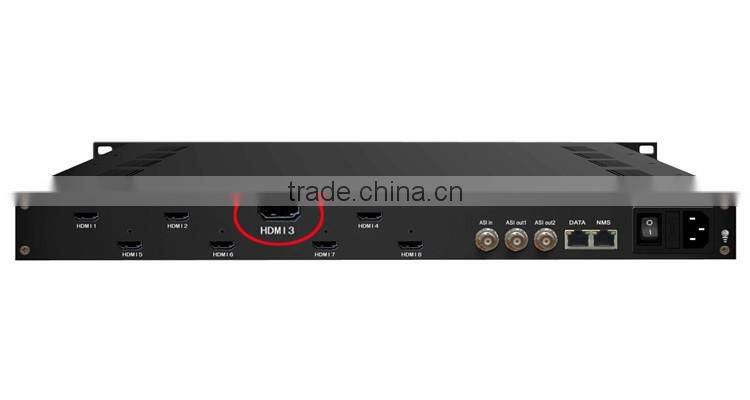

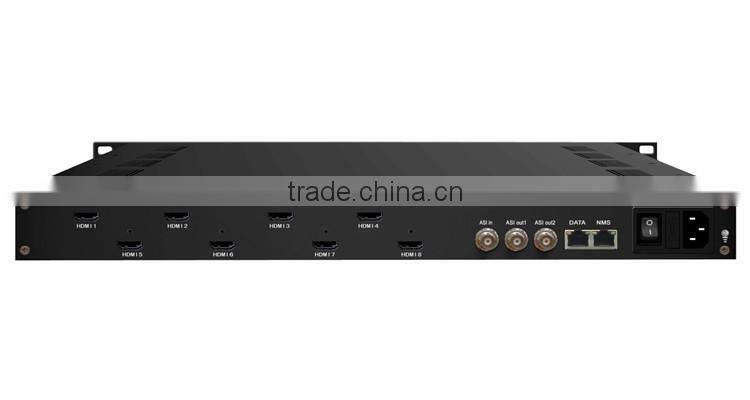

INPUTS
Video Input
8 x HDMI 1.3a
Audio Input
HDMI embedded audio
Multiplexing
1xASI inputs,BNC
OUTPUTS
ASI Output
DVB Interface: Two identical ASI stream out in MPTS Mode,
Comply to EN 50083-9 ASI Standard, BNC, 75Ω
MPEG-TS over IP Output
IP output:100M Base-T Ethernet UDP/IP output, Multicast/Unicast supported
Output Format: 188 bytes
SPTS or MPTS mode :configure before it leave factory
SPTS mode: means creation of multiple SPTS which can be multicast/unicast to 8 different ports or IP addresses
MPTS mode: means set one MPTS to one IP address or port
Video Encoding
Comply to the International standard:MPEG-4 AVC High Profile, Level 4.0
Aspect ratio:16:9(HD)
Bit rate: 0.8Mbps~20Mbps
Scene change detection
Bit rate mode: VBR,CBR
Brightness / Contrast / Saturation / Chroma /Horizontal Offset
GOP Structure: IBBP
Stereo or ingle channel
Audio Encoding
Sampling Rates: 48KHz
Bit rate: 32,64, 128, 192, 256, 384kbps
Audio encoding: MPEG-1 Audio Layer
Quantization:24bit
Resolution
Accordance to CCIR601 standard
Resolution;1920×1080_60p,1920×1080_50p,
1920×1080_60i,1920×1080_50i
1280×720_60p, 1280×720_50p
Management
10/100 Base T Ethernet, RJ45, SNMP
7 keys: Up, Down, Left, Right, Enter, Esc, Lock
Front-panel LCD configuration, LED indicate light
SNMP protocol support
Environment
Comply to GB13837-92 & GB8898-88 standard
Power Supply: AC 100-250V 50/60Hz
Power consumption: 20 W
Operating temperature:-10 - 50°C
Storage temperature: -10 - 75°C
Dimensions: 300(L)x483(W)x 44mm(H) (1RU)
Weight: 7kg
Order informations
ENC3210
Single Channels HD/SD Encoder/Transcoder
ENC3240
Four Channels Broadcast HD Encoder HDMI
ENC3245
Four channels Broadcast HD Encoder
HDMI+HDSDI Inputs
ENC3211
Single Channels HD/SD Encoder
ENC3241
Four channels Professional HD Encoder
HDMI Inputs
ENC3311
Single Channels Full HD/SD Encoder
ENC3341
Four channels Professional Full HD Encoder
HDMI Inputs
