Single Channel hd H.264 Hdmi Encoder IPTV Headend System

Single Channel hd H.264 Hdmi Encoder IPTV Headend System thumbnail-1
Single Channel hd H.264 Hdmi Encoder IPTV Headend System photo-1
US$ 1,000 - 2,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Dibsys
Model Number:
ENC3311
Contact Supplier Request Quote Chat Now
Hangzhou DIBSYS Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Hangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Dibsys
Model Number ENC3311
Product Description

ENC3311 a create a single H.264 channel on your building,campus or metropolitan-area IP network from the output of various video devices. These include video cameras,DVD/Blu-ray players, digital signal systems, personal computers and even set-top boxes for premium TV channels. Encoder blades are available for both SD and 1080P HD MPEG4 AVC encoding.. It is equipped with the latest advances in video compression technology to deliver unsurpassed video quality at lowest bitrates, and low latency to achieve high image quality video and audio transmission,fully support for SDI/ HD-SDI, Composite, HDMI, YPbPr, S-Video interface inputs encoding, both IP and two identical ASI data outputs. It also can be used to support IPTV, broadcast and video surveillance applications.

The ENC3311’s highly bandwidth efficient MPEG-4 CBR encoding and native IP output make it possible to deliver exciting and competitive HD services to broadcast operators

Feature

1.Advanced MPEG-4 AVC HP@L4, MP@L3 video compression

2.ASIC technologies which offer broadcast video quality, generally video bitrate advised: SD about 1.2mbps, 720p about 2mbps,1080 about 6-8mbps for lowest bitrates

3.HDMI 1.3a interface, Auto detect the HDMI input of resolutions

4.Support the importation of SDI/HD-SDI, HDMI, CVBS, S-Video, YPbPr encoding

5.Audio sampling Rates: 48KHz

6.MPEG-1 Layer2 , HE-AAC(V2) (option)or LC-AAC(option) audio encoding

7.Supports unicast and multicast IP output UDP protocol as well as two identical ASI outputs

8.Management via External SNMP and local front panel

9.Supports resolution:1080P/i@50/60Hz, 720p@50/60Hz, 480i, 576i

10.Built-in time base correction and video pre-processing

11.Easy-to-Use System Management

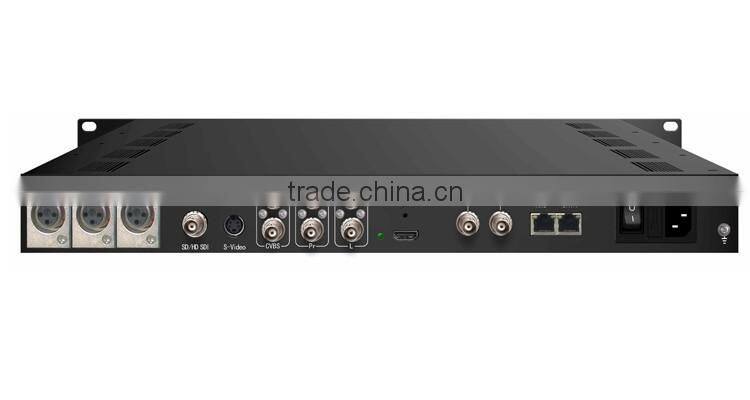

Input
Video Input

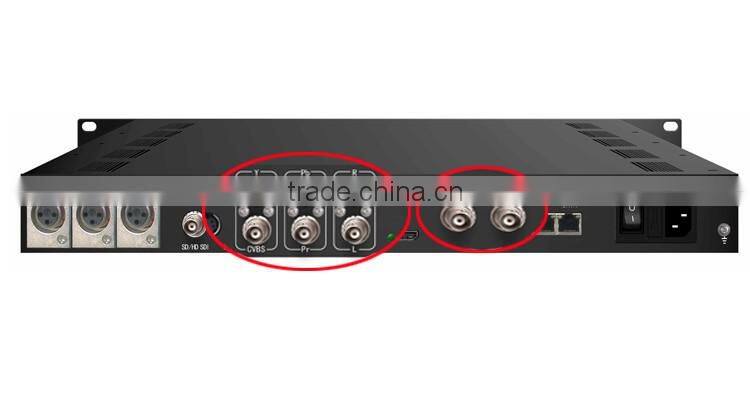

1 x Composite level: 1.0Vp-p, Impendence,75Ω,BNC

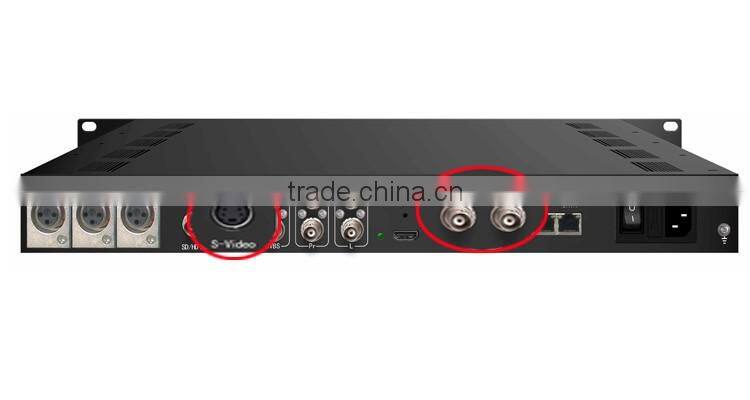

1 x S-Video Analog Component Video Interface

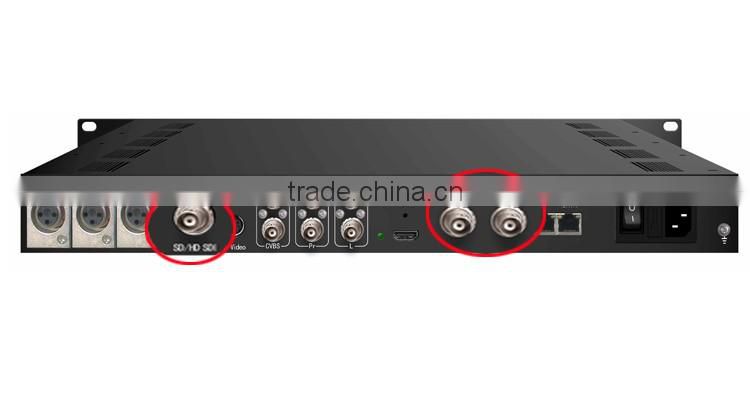

1 x Digital SMPTE 292M (HD-SDI) digital video, BNC
1 x HDMI 1.3a
1 x YPbPr component video interface, Connector: BNC
Audio Input
2 analog stereo audio, BNC interface (unbalanced)
HDMI/SDI embedded audio
output
DVB Interface: Two identical ASI, Comply to EN 50083-9 ASI Standard, BNC, 75Ω
IP output: 100M Base-T Ethernet UDP/IP output, Multicast/Unicast supported
Output Format: 188 bytes, 7x188 bytes per udp packet
Output Rate: 0.8Mbps~20Mbps
Video Encoding
Comply to the International standard:MPEG-4 AVC High Profile, Level 4,Main profile Level 3.0
Aspect ratio:16:9(HD),4:3(SD)
Scene change detection
Bit rate mode: VBR,CBR
Brightness / Contrast / Saturation / Chroma /Horizontal Offset
GOP Structure: IBBP
Audio Encoding
Sampling Rates: 48KHz
Bit rate:64, 128, 192, 256, 384kbps
Audio encoding: MPEG-1 Audio Layer
Quantization:24bit
Stereo or single channel
Audio Gain: 0-16
Resolution
Accordance to CCIR601 standard
1920x1080p/i,1280x720p,720x480p,720x576p
Management
10/100 Base T Ethernet, RJ45, SNMP
7 keys:UP,DOWN,LEFT,RIGHT,ENTER,ESC,Lock
Front-panel LCD configuration, LED indicate light
SNMP protocol support
Environment
Radiation safety requirements and comply with
GB13837-92 and GB8898-88 standards
Power Supply: AC 90-250V 50/60Hz
Power consumption: 20W
Operating temperature:-10 - 50°C
Storage temperature: -10 - 75°C
Dimensions: 455(L)x483(W)x 44mm(H) (1RU)
Weight: 5kg
Order informations
ENC3210
Single Channels HD/SD Encoder/Transcoder
ENC3240
Four Channels Broadcast HD Encoder HDMI
ENC3245
Four channels Broadcast HD Encoder
HDMI+HDSDI Inputs
ENC3211
1Ch MPEG-4 AVC HD Encoder
ENC3311
ingle Channels Full HD/SD Encoder
ENC3341
Four channels Professional Full HD Encoder
HDMI Inputs
