Widely Used MPEG2/MPEG4 AVC HD ip Video Encoder/ip Audio Encoder

Widely Used MPEG2/MPEG4 AVC HD ip Video Encoder/ip Audio Encoder thumbnail-1
Widely Used MPEG2/MPEG4 AVC HD ip Video Encoder/ip Audio Encoder photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Dibsys
Model Number:
ENC3411
Contact Supplier Request Quote Chat Now
Hangzhou DIBSYS Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Hangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Dibsys
Model Number ENC3411
Product Description

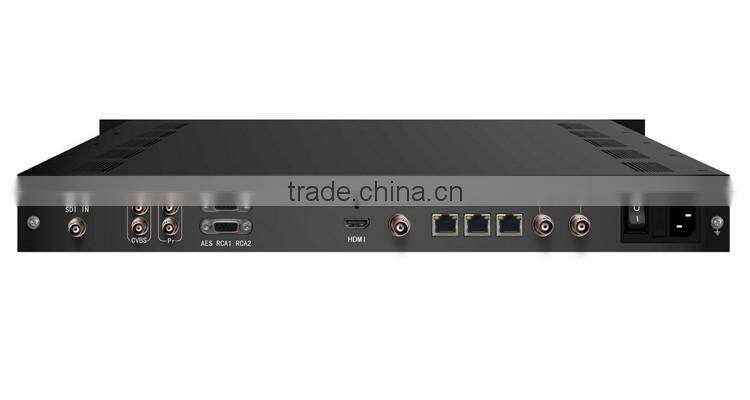

Universal SD/HD MPEG-2 and H.264 Encoder

ENC3411 has proven itself as the most advanced encoding platform for Cable,Satellite, IPTV or Terrestrial applications available today. The hardware platform has been widely deployed for MPEG-2 and MPEG-4 AVC broadcasting applications.

ENC3411 is the newest broadcasting audio & video encoding and multiplexing device with enhances bandwidth efficiency significantly. It is equipped with multiple video input interfaces (SDI, CVBS, YPbPr and HDMI),multiple audio input interfaces (AES, RCA and XLR) and multiple codec standard(MPEG-2 and MPEG-4 AVC/H.264 video encoding and MPEG1 Layer II, HE-AAC,LC-AAC audio encoding,AC3 Passthrough). Multiplexing function is also embedded to select the input programs and output stream through ASI/IP port in the same time.

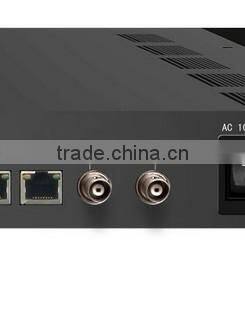

ASI output

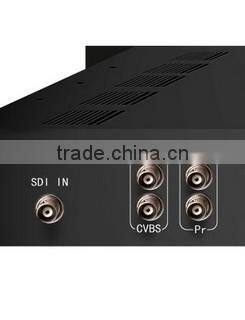

SDI, CVBS, YPbPr INPUT

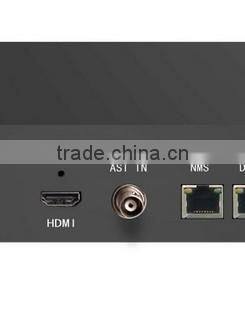

HDMI, ASI input

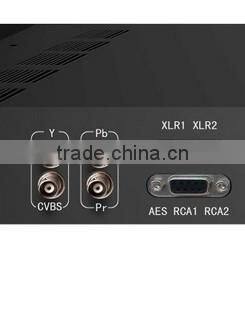

XLR, AES, RCA

Feature

1.One channel MPEG-2 and MPEG-4 AVC video encoding of HD or SD per chassis(1RU)

2.Based on the latest ASIC and FPGA technologies, offers unequalled gains in video compression efficiency

3.Applies to one Seg /ISDB-T

4.Support digital video andanalog audio input,encode

5.HDMI/HD-SDI/YPbPr,Composite video inputs

6.Two XLR,two RCA,one AES audio inputs

7.1080I, 720P, 480I and 576I@50,60,59.94Hz video resolution

8.Aspect Ratio: 4:3, 16:9, 1:1, 2.35:1(only for h.264 encoding)

9.MPEG1 Layer II, HE-AAC (v1&v2) and LC-AAC AC-3 passthrough audio encoding

10.Support 2 stereo or 4 Mono audio encoding

11.Low latency mode

12.Chroma sample: 4:2:0 and 4:2:2

13.2 stereo or 4 Mono audio encoding

14.CC (Closed Caption), EIA 608 and EIA 708

15.UDP/RTP-IP Output; 2 Indentical ASI Output

16.GOP structure:IPBBB,IPBBBB,IPBBBBB

17.Bitrate:0.25-60Mbps, CBR & VBR control

18.UDP/RTP media transmission protocols & multicast/unicast output

19.Easy to use via web management

Input Interfaces
1×SDI, 1×CVBS, 1×YPbPr and 1×HDMI input
2×XLR, 2×RCA and 1×AES inputs
1×ASI input, BNC interface
Video
Resolution
1920×1080i @59.94Hz, 1920×1080i @50/60Hz
 1280×720p @59.94Hz, 1280×720p @ 50/60Hz
 720×480i @59.94Hz, 720×576i @ 50Hz
Encoding
MPEG-2 HD/SD; MPEG-4 AVC(H.264) HD/SD
Bit-rate
0.25 Mbps~60.5Mbps
Video compression and bitrate encoding option
MPEG-2 MP@ML 1 to 15Mbps
MPEG-2 MP@HL 2 to 24 Mbps
MPEG-2 MP@HL 15 to 50 Mbps
MPEG-4 AVC MP@L3 0.25 to 8 Mbps
MPEG-4 AVC HP@L4 2 to 15 Mbps
Rate Control
CBR/VBR(from 1mbps to maximum value)
GOP Structure
Auto, IP, IPB, IPBB, IPBBB, IPBBBB, IPBBBBB
Aspect Ratio
4:3; 16:9; 1:1; 2.35:1
Chroma
4:2:0;4:2:2 (Applied to all resolution under MPEG2 compression)
Advanced Pretreatment
De-interlacing, noise reduction, sharpening
Audio
Encoding
MPEG-1 Layer II, HE-AAC (v1&v2), LC-AAC,AC-3 passthrough
Sampling rate
48KHz
Resolution
24-bit
Bit-rate
32Kbps~384Kbps
Video (one-seg)
Resolution
96×96, 128×96, 128×128, 192×192, 352×240, 352×288, 416×240
Encoding
MPEG-2; H.264; Auto (follow the main stream format: MPEG-2 or H.264)
Bit-rate
0-1.0 Mbps
Aspect Ratio
4:3; 16:9; Auto (follow the main stream)
Multiplexing
1 ASI input multiplexed with 1 local channels TS
Delay
200ms -300ms
Stream output
2×ASI output ports, BNC interface
MPTS/8*SPTS over UDP/RTP, 10/100 Base-T Ethernet interface
(UDP/RTP multicast/unicast)
System function
LCD/keyboard and Led indicator
Language: English
Ethernet software upgrade
Environment
Power Supply: AC110V±10%, 50/60Hz  AC 220V±10%,50/60Hz
Power consumption: 25W
temperature:0~45℃(Operation), -20~80℃(Storage)
Dimensions: 482mm×405mm×44.5mm (W × D × H)
Weight: 4.5Kg
