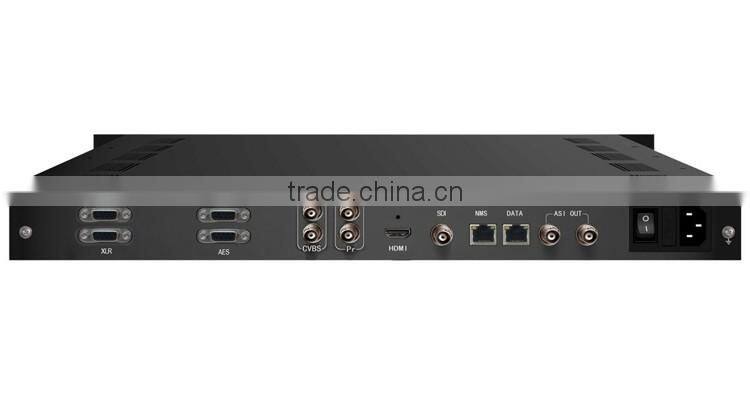

Universal SD/HD Mpeg-2/h.264 SDI to IP Encoder IPTV/cable tv Digital Headend With AC3 Passthrough

SD and HD MPEG-2 /H.264 Contribution Encoder

ENC3411 Plus has proven itself as the most advanced encoding platform for Cable,Satellite, IPTV or Terrestrial applications available today. The hardware platform has been widely deployed for MPEG-2 and MPEG-4 AVC hd broadcasting applications.The significant advantage in low latency and Dolby Digital AC3 audio encoding

ENC3411 plus Designed to address the ever-increasing demand for advanced video and audio services, the high performance provides up to four audio channels of superior quality constant bit rate (CBR) MPEG-4 AVC (H.264) video. It is the industry’s first HD encoder based on ASIC processing technology and providesa full 20 – 30% compression gain over the first generation of DSP-based MPEG-4 HD encoders.

Feature

1.Simultaneous MPEG-4 AVC and MPEG-2 SD/HD encoding per chassis 1RU

2.Based on Magnum D7 Pro Newest generation ASIC and FPGA technologies, offers unequalled gains in video compression efficiency

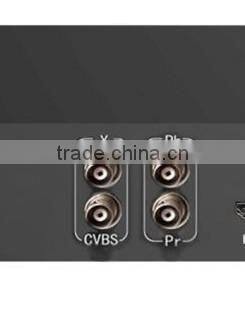

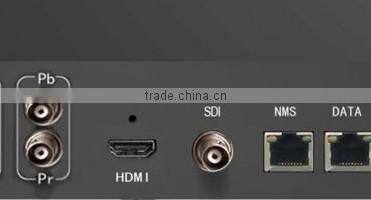

3.1xHD-HDMI/HD-SDI/YPbPr,Composite video inputs

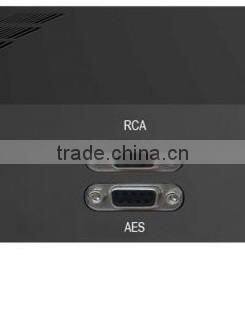

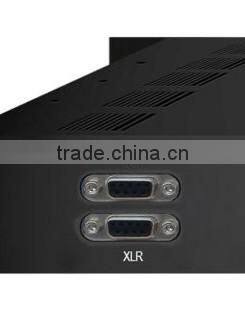

4.Four XLR,Four RCA,one AES audio inputs

5.Up to 4 audio stereo channels or 8 mono channels

6.MPEG1 Layer II,LC-AAC,HE-AAC v1,He-AAC v2

7.and Dolby Digital AC3 (2.0/5.1) audio encoding

8.Dolby Digital AC3 passthrough audio encoding

9.Supports multiple HD and SD formats including 1080i,720p,480I,576i ,Downscale video resolution

10.Aspect Ratio:4:3,16:9

11.Low latency mode

12.4:2:2/4:2:0 encoding profiles for highest video quality (4:2:2- MPEG-2 only)

13.CC (Closed Caption), CEA 608 and CEA 708

14.Support video buffer, free to switch video sources (all video interface available)

15.Flexible GOP structures with Adaptive I-frame and B-frame insertion

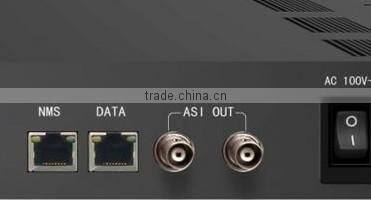

16.Simultaneous outputs via UDP/IP, DVB-ASI

17.Bitrate:0.25-60Mbps, Only CBR control

18.Management via embedded Web server
