2015 Best Quality MPEG-2/H.264 sd Encoder Platform for IPTV Application

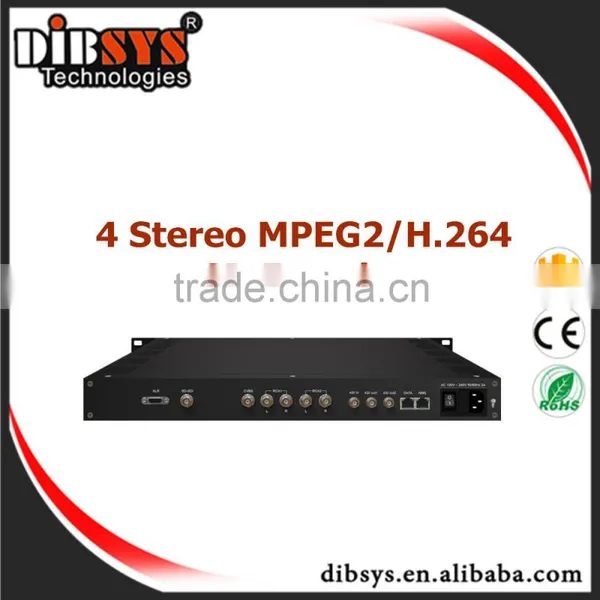

2015 Best Quality MPEG-2/H.264 sd Encoder Platform for IPTV Application thumbnail-1
2015 Best Quality MPEG-2/H.264 sd Encoder Platform for IPTV Application photo-1
US$ 1,000 - 3,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Dibsys
Model Number:
ENC3111
Contact Supplier Request Quote Chat Now
Hangzhou DIBSYS Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Hangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Dibsys
Model Number ENC3111
Product Description

ENC3111 simultaneously encodes video/audio feeds as MPEG-2 SD 4:2:0 and MPEG-4 AVC (H.264) SD 4:2:0,using MPEG-1 Layer-II,LC_AAC, HE-AAC V2 audio ed to address this ever increasing demand for more video and audio services. With efficient bitrate utilization,high reliability and advanced compress arithmetic,it possible to transmit high quality video content at the lowest possible bandwidth. And produce ASI and IP output data streams.

ENC3111 encoder supports up to two quality stereo audio channels (or up to 4 mono channels) as either embedded XLR or two analog stereo channels inputs

Feature

1.1 channel Composite,SD-SDI and 2 pairs R/L analog audio and XLR per chassis

2.Advanced MPEG-2 MP@ML4:2:0 and MPEG-4 AVC 4:2:0(H.264)

3.Up to 2 audio stereo channels or 4 mono channels

4.ASIC technologies which offer broadcast video quality, generally for SD about 2.5mbps(MPEG -2) ,800kbps(H.264) for ultra-low bitrates

5.MPEG-1 Layer,LC_AAC, HE_AAC V2 audio,encoding

6.Simultaneous outputs via IP, DVB-ASI

7.Range of encoding of video: 0.25~7Mbps (H.264); 0.5~7Mbps(MPEG-2)

8.Advanced multiplexing capabilities for cascading and multi-services via ASI input

9.Simultaneous outputs via SPTS/MPTS over IP

10.Audio sample rate: 32/44.1/48KHz

11.Screen ratio:16:9;4:3

12.Management via SNMP and local front panel

13.VBR/CBR video bitrate Mode

14.Easy to operate a cost-efficient standalone

Video and Audio Inputs
Composite video: 1.0Vp-p level
Frequency: 25Hz~5.75MHz
Quantitative: 10bit,comply to CCIR601
Sample freq Rate: 27MHz
Impedance: 75Ω, unbalanced,BNC
SD-SDI(SMPTE-259M): Video and embedded audio
2 pair of unbalanced stereo audio input, BNC
2 pair of balanced stereo audio input
ASI Output
EN 50083-9 ASI interface standard
Data bitrate:0.5-40Mbps
Signal Level:200-800mVp-p
Packet Length:188 bytes
2 identical ASI, BNC, 75Ω
MPEG-TS/IP Output
Up to 100M base-T,Full Duplex
Bit rate: ≤100Mbps
Data Protocol: UDP
7x188 bytes per udp packet
Video coding
Comply to ISO 13818,main profile 3.0
Encode Format: MPEG-2 4:2:0MP@ML, MPEG-4 AVC 4:2:0
Video screen ratio:4:3;16:9
Brightness / Contrast / Saturation / Chroma /Horizontal Offset
Adaptive field frame (AFF)
Operation mode: CBR/VBR
Format: DVB standard transport stream (MPEG-TS)
Each bitrate: 0.25~7Mbps(H.264)
0.50~7Mbps (MPEG-2)
Advanced Pretreatment:noise reduction, sharpening
Audio Encoding
Audio Sampling Frequency: 32/44.1/48kHz
Encoding Format: MPEG I Layer 2,HE-AAC,LE-AAC
Quantitative:24bit
Audio Coding Bitrate: 192/224/256/320/384Kbps(MPEG-1)
32/48/56/64/80/96/112/128/160/192/224/256/320/384Kbps(AAC)
Up to 2 audio stereo channels or 4 mono channels
Resolution
Accordance with CCIR601 standard
PAL: 720*576/352*288/320*240/320*180/176*144/160*120/ 160*90 I@50Hz
NTSC:720*480/352*288/320*240/320*180/176*144/160*120/160*90@ I59.94Hz
TS Re-multiplexing
1x ASI with multiplexed
PAT/PMT/ SDT Automatically
Control
100M Base T Ethernet, RJ45, SNMP
7 keys:UP,DOWN,LEFT,RIGHT,ENTER,ESC,Lock
LED indicate light and LCD in front pane
Environment
Radiation safety requirements and comply with
GB13837-92 and GB8898-88 standards
Power Supply: AC 90-250V 50/60Hz
Power consumption: 25W
Operating temperature:-10 - 50°C
Storage temperature: -10 - 75°C
Dimensions: 455(L)x483(W)x 44mm(H) (1RU)
Weight: 5kg
Order informations
ENC3111
1Ch MPEG-2 and AVC SD Encoder
ENC3411
1Ch MPEG-2 and AVC SD/HD Encoder
ENC3311
1Ch MPEG-4 AVC Full HD Encoder
ENC3211
1Ch MPEG-4 AVC HD Encoder
ENC3210
1Ch MPEG-4 AVC HD Encoder,Transcoder
ENC3010
1Ch MPEG-2 SD Encoder
