Solar Roadway Safety Light With CE ROHS Approve ,solar Garden Stud

Specifications

led solar road stud

Specifications:

Light source: single side 6 LEDs, double side 12 LEDs
Shell: ABS fire-resistant ASA
Size: 100mm*105mm*19mm
Weight: 150g
Color: white, yellow, red, blue, green.
Power: white: 0.6VA(25mA)/ yellow: 0.3VA(12mA)
Life span: 50,000 hours
LED angle:±30°
Voltage: 24V DC
IP grade: IP67
Weight load: 150KN
Features:

1.The road stud is produced by mould in one punch, no need to assemble, which greatly improve its load capability. Solar battery, electronic component and LED indicators are sealed in road stud with special technique, the road stud is strictly water proof, which can be used on ponding road for the long run.

2.Upside of the road stud is designed with embossed parallel stiffeners which strengthen the stud and protect solar panel from being crushed by the wheels.

3.Additional wear-resisting layer is increased on the upper surface, which prevents the surface from being wear away, and improve the efficiency of solar energy transfer.

4.Intelligent control IC, imported precision potentiometer, heat-resistant high-volume rechargeable batteries are applied in the road stud, which ensure its service life and excellent performance.

5.LED indicators are mounted in one side or double side according to customers’ requirement.

6.The road stud is designed with handgrips and screw holes on both sides, which can be installed firmly on the road.

7.Easy to install.

8.The road stud is applicable to pavement, roadside edge, kerb stone, port and so on.

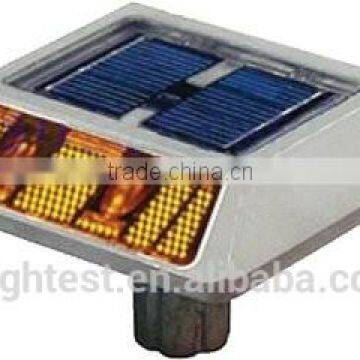

Pictures:

Notes:

1--traffic safety:construction worker must wear reflective vests,with the reflective road cone to blockade construction region,when installing at night , set up the guiding signboard .

2--Do not install on the road marking paint .(need to clean out the paint then install stud on the road surface.)

3--Do not over 3kg of the mixed glue each time (because the glue will be solidafter a certain time,for avoiding waste,suggest not more than 3kg each mixing glue).

4--it is not easy to stir the glue when temperature below 10 by the kerosene stove heated the glue (A glue, not B glue),and mix it uniformly .

5--generally , the color of road stud is same with the road marking line, LED lighting direction are opposite with the vehicle going direction.do not anti-installation.

6--during the installation, seize the both sides of handle position of road stud,nottouch the lamp-shade parts and make it dirty.

7--it cannot install when there is water on the road surface.

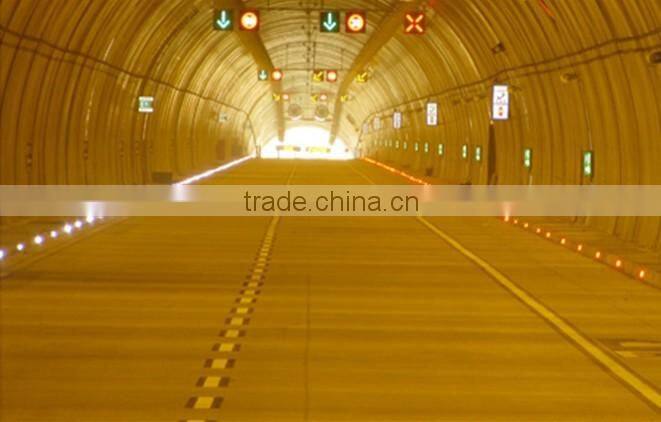

Applications of led solar stud:
