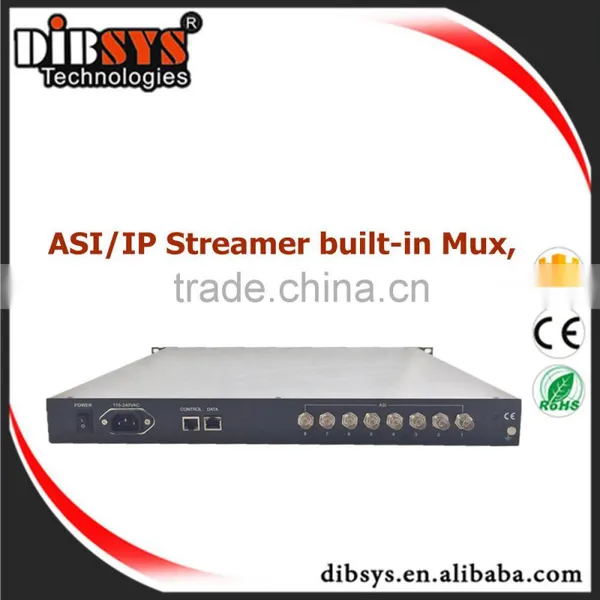

ASI Video to ip Converter With 256 SPTS/MPTS Udp/rtp ip Streaming Inputs,8 Port DVB-ASI Outputs

Name: ASI Video to ip Converter With 256 SPTS/MPTS Udp/rtp ip Streaming Inputs,8 Port DVB-ASI Outputs
Brand: dibsys
SKU: 110651345
Availability: InStock

ASI Video to ip Converter With 256 SPTS/MPTS Udp/rtp ip Streaming Inputs,8 Port DVB-ASI Outputs thumbnail-1

ASI Video to ip Converter With 256 SPTS/MPTS Udp/rtp ip Streaming Inputs,8 Port DVB-ASI Outputs photo-1

US$ 1,000 - 4,000 MOQ: 1 Unit

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

dibsys

Model Number:

DCM710

Contact Supplier Request Quote Chat Now

Hangzhou DIBSYS Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name dibsys

Model Number DCM710

8x ASI/GbE IP MPEG Processor with Multiplexing, Scrambling

Overview

DCM710 Digital Content Manager (DCM) MPEG Processor is a compact 1RU platform capable of processing a high number of MPEG video streams. The MPEG Processor is the Second generation of intelligent headend processing equipment where the combination of compactness and flexibility leads to a cost-effective solution. Based on our experience, brings operational and economic benefits in MPEG processing application. The optional built-in DVB scrambler allows easy integration with several Conditional Access (CA)

DCM710 Professional DCM platform is an ideal solution for multiplexing, scrambling of MPEG streams which provide a cost effective, versatile and efficient for

delivering digital TV content over IP networks that Integrates up to 16 separate IP address or Ports and De-encapsulates and Routes Any or All Selected Transport Streams via eight ASI Inputs Port

Key Features

Up to 8 channels DVB-ASI input per chassis
Up to 16x MPTS IP outputs
De-encapsulates and Routes Any or All Selected Transport Streams outputs
Support processing for multiplexing PSI/SI Table
PID filtering,mapping and passtthrough
Output data rate range: GbE IP:1 ~ 800Mbps
Input DVB-ASI: ≤100Mbps
Auto-generation and manual upload for SI/PSI information
SPTS and MPTS supported
Up to 4 CAS simul-cryption
Transrating of MPEG2/MPEG4 AVC SD and HD
Management via WEB and local front panel
Integrated, compact 1-RU platform saves rack space and reduces operating costs
Low network jitter,low latency,high PCR precision
Easy-to-Use System Management
Real-time monitoring bit rate statistics

Technical specifications

DVB-ASI Input
	Comply to the ASI interface standard of EN50083-9 or SMPTE259M
	8x ASI,BNC,75Ω
	The transmission rate of each channel≤100Mbps
	15dB@270MHz
	Maximum input level 800mV±10%
MPEG-TS Over IP out
	1000M base-T,Full Duplex
	Bit rate: ≤800Mbps
	MPEG-2 TS over UDP/IP output, Multicast/Unicast
	Stream number: 1~16
	7x188 ts packets per udp packet
Multiplexing
	PSI/SI table(PAT,PMT,NIT,TOT,TDT,BAT) automatic or manual generate
	Up to 250 programs to multiplex,and 32 service id per one MPTS out
	PID Filter,Remapping capabilities
Scrambling (option)
	Up to 512 programs to scrambling
	CAS simul- encryption:0-4
	EMM of bandwidth:1-3Mbps
	The scrambling function and configures the numbers of output modulation channel through software authorization
Control
	100M Base-T Ethernet, RJ45,WEB((IE 8.0 or above)
	6 keys: UP, DOWN, LEFT, RIGHT, ENTER,ESC
	Front-Panel LCD configuration, LED indicate ligh
Environment
	Rated voltage: AC 90-260V 50/60Hz
	Rated power: 50W
	Working Temperature: -10~50°C
	Storage Temperature: -10~75°C
	Size: L: 460mm, W: 483mm, H: 44mm(1RU)
	Weight: 6kg

Our advantages

1) High quality and low price

2) 3-year warranty

3) Perfect after-sale service and technical support

Order informations

DCM720:	GbE IP/ASI MPEG Processor
DCM710:	ASI/GbE IP MPEG Processor
DCM700:	GbE IP inout MPEG Processor
DCM730:	AS/ASI input MPEG Processor
QAM6248:	Multi-channels QAM Modulator
IPQ6200:	Multi-channels IP to QAM modulator
