rf Lightning Protector Wide Brand 1/4 Wave Length Type With 7/16 Connector

rf Lightning Protector Wide Brand 1/4 Wave Length Type With 7/16 Connector thumbnail-1
rf Lightning Protector Wide Brand 1/4 Wave Length Type With 7/16 Connector thumbnail-2
rf Lightning Protector Wide Brand 1/4 Wave Length Type With 7/16 Connector thumbnail-3
rf Lightning Protector Wide Brand 1/4 Wave Length Type With 7/16 Connector thumbnail-4
rf Lightning Protector Wide Brand 1/4 Wave Length Type With 7/16 Connector thumbnail-5
rf Lightning Protector Wide Brand 1/4 Wave Length Type With 7/16 Connector thumbnail-6
rf Lightning Protector Wide Brand 1/4 Wave Length Type With 7/16 Connector photo-1

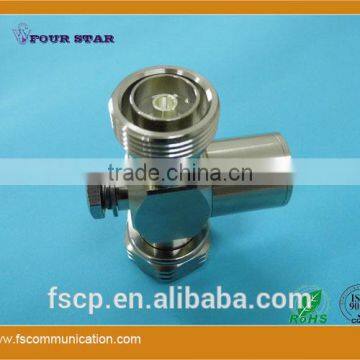

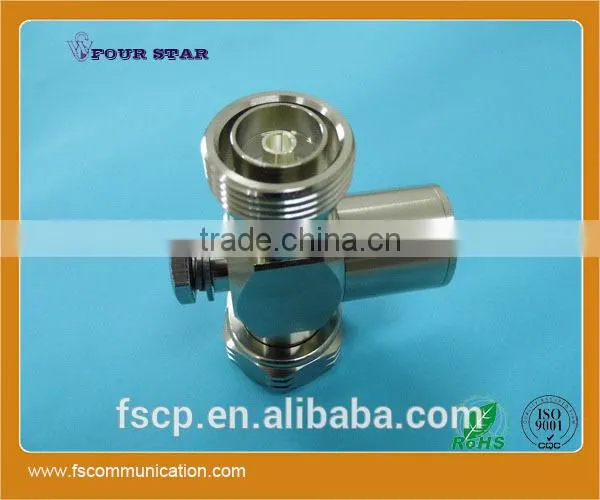

rf Lightning Protector Wide Brand 1/4 Wave Length Type With 7/16 Connector photo-2

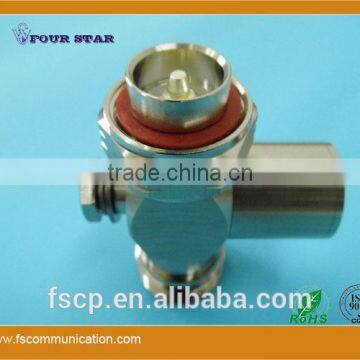

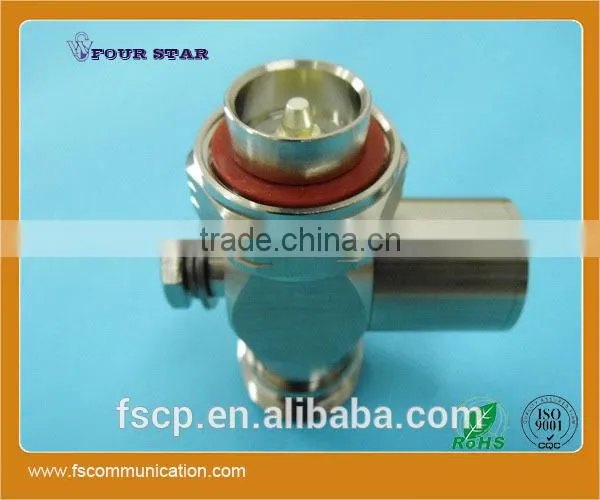

rf Lightning Protector Wide Brand 1/4 Wave Length Type With 7/16 Connector photo-3

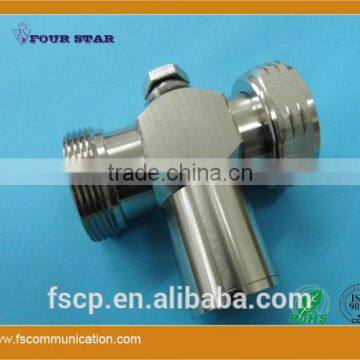

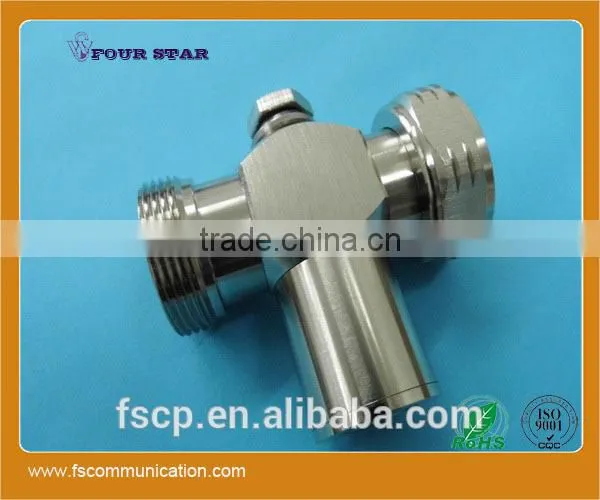

rf Lightning Protector Wide Brand 1/4 Wave Length Type With 7/16 Connector photo-4

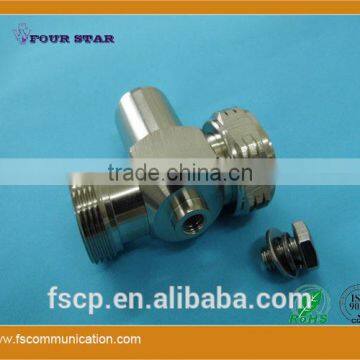

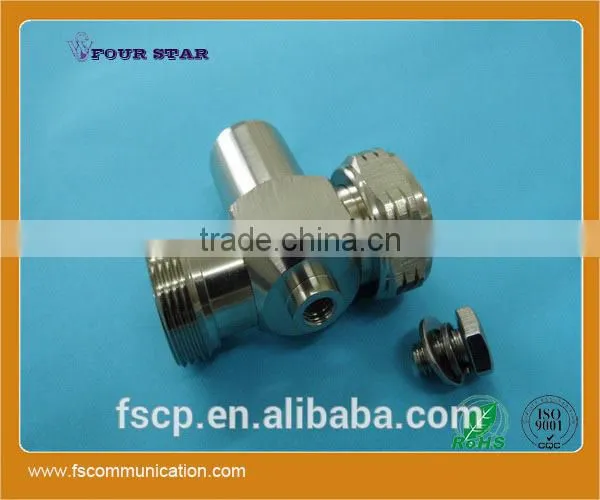

rf Lightning Protector Wide Brand 1/4 Wave Length Type With 7/16 Connector photo-5

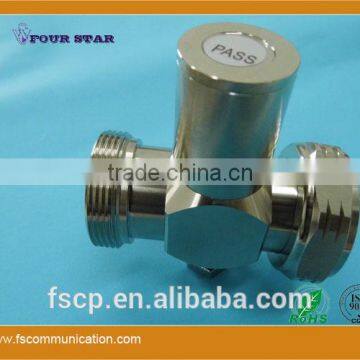

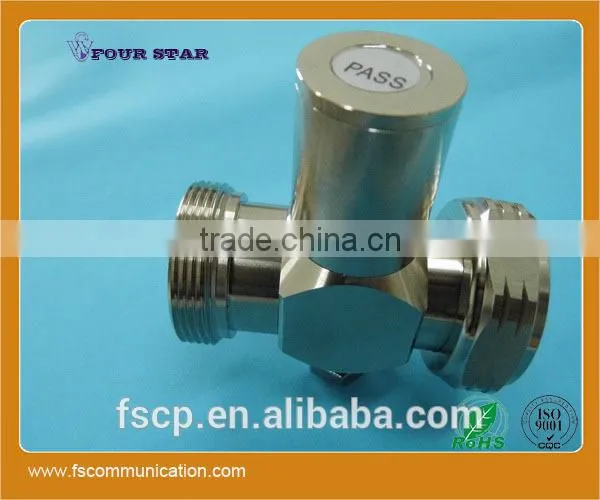

rf Lightning Protector Wide Brand 1/4 Wave Length Type With 7/16 Connector photo-6
US$ 6.6 - 14.5 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Four Star
Model Number:
LP-DINJK-07-27
Contact Supplier Request Quote Chat Now
Four Star Communication Parts Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Four Star
Model Number LP-DINJK-07-27



Product Description

  Mutil Band Quarter Wave Lightning Protector



Frequency Range                                          700-2700MHz
VSWR        ≤1.10 @800-2500MHz; ≤1.15@700-2700MHz
Intermodulation 3rd (PIM3)               ≤ -157dBc@43dBm×2
Insertion Losss ≤0.15dB
AC Working Vlotage 4000V / 1 Min No Breakdown and No Arcing Phenomenon
Dielectric Resistance  ≥10000MΩ
Contact Resistance  Center Contact ≤0.4mΩ Outer Contact ≤0.2 mΩ
Max. Peak Power 3000 Watt
Impulse discharge current 30KA@8/20μS
Residual impulse Voltage(1kV/μs) <30
Mechanical
Durability Mating cycles ≥500
Material and Plating
Parts Name(Components) Material Plating (Finish)
Body(Housing) Brass Ni or Tri-Metal(CuZnSn)
Insulator PTFE —
Inner Conductor Phosphor Bronze  Ag
Coupling Nut Brass Ni
Stub/Cap/Sleeve Brass Ni
Gasket Silicone Rubber —
Hardware Kits Stainless Steel  —
Environmental
Operating Temperature _45 °C-85 °C
Weatherproof Rate      IP67
RoHs (2002/95/EC) Compliant by exemption
EU Directive 2006/95/EC Compliant

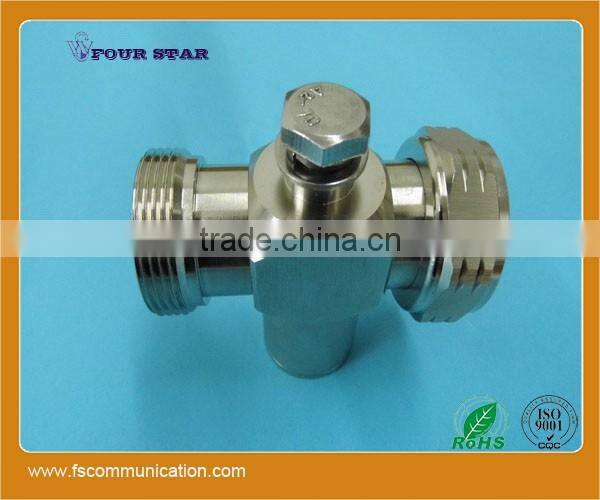

 rf Lightning Protector wide brand 1/4 wave length type with 7/16 connector
