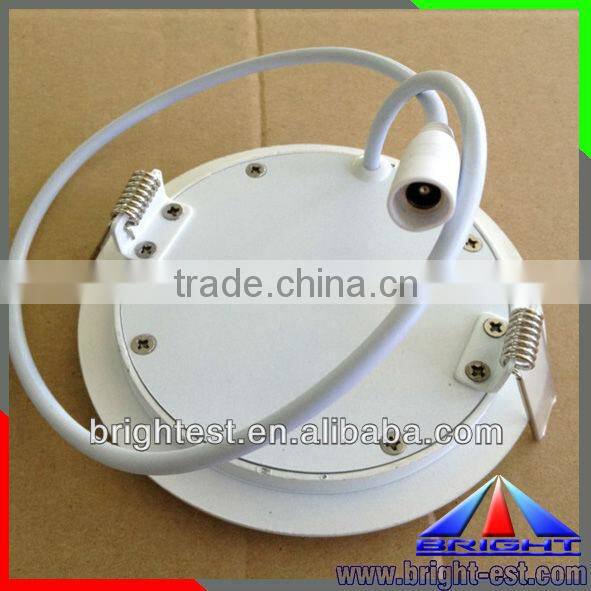

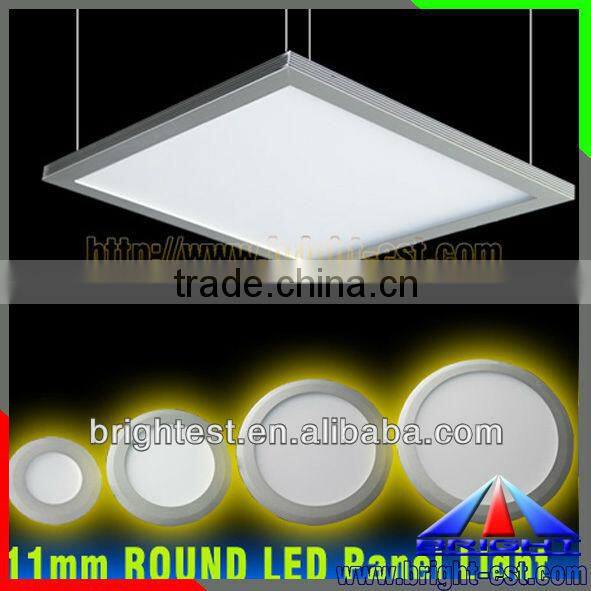

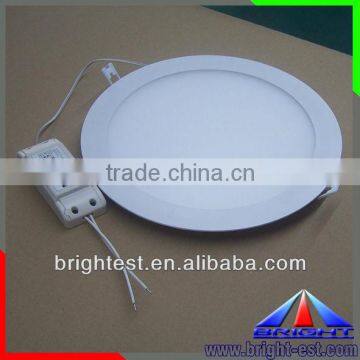

8 Inch 3528 LED Ceilignt Light

8 Inch 3528 LED Ceilignt Light photo-1
US$ 20 - 24 MOQ: 2 Pieces
Key Specifications
Get Latest Price
LED Light Source:
SMD3528
Install Style:
Downlights
Input Voltage(V):
100-240
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
LED Light Source SMD3528
Install Style Downlights
Input Voltage(V) 100-240
Lamp Power(W) 13
Lamp Luminous Flux(lm) 920
Lamp Luminous Efficiency(lm/w) 65
Color Temperature(CCT) Pure White
Working Temperature(℃) -20, 40
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum Alloy
IP Rating IP54
Certification CE
Place of Origin Guangdong, China
Brand Name BRIGHT LED Panel
Model Number BG-508A

Specifications

13W LED Panel Light
1.High perfomance light guide
2.SMD3535 3528,5050 High lumens led
3.Dimmable&Undimmable
4.CE&ROHS

130pcs LED 8" Panel Flat Light

LED Panel Light Specifications

External Driver RequiredYes
Driver SuppliedYes
DimmableOptional
MaterialsAluminum, PVC/Acrylic
Power Factor> 0.95
Rated Life50,000 hours
CRI>75
Weight1400 grams
Measurements8 inch





LED Panel FEATURES

1. LED panel is a kind of advanced indoor light, which inherits the characteristics of simplicity and classics of Europe style. It is gaining the favor of customers for its super thin profile and clear bright light effect. LED panel creates a strong sense of depth and space when applied in indoor places such as meeting room, VIP reception room, and hotel.



2. The frame is made of 6063 aluminum alloy with anodic oxidation treatment, which is very good in heat dissipation. Light source is 3535 LED, which can create a flat lighting effect when its light pass through the light guide plate.



3. LED panel is more energy saving and environment protecting with longer life than traditional light products. Its light is well-proportioned, soft, comfortable and bright.





LED PANEL LIGHT

NO.

SIZE(mm)

VOLTAGE

LED TYPE

POWER

LED QTY.

LUMENS

COLOR

IP Grade

BG-501

300x300x13.5mm

100-240V

SMD3528

19 W

180 pcs

1000 Lm

W / WW

IP50

BG-502

300X900X13.5mm

100-240V

SMD3528

30 W

300 pcs

1437 Lm

W / WW

IP50

BG-503

300x1200x13.5mm

100-240V

SMD3528

39 W

384 pcs

2170 Lm

W / WW

IP50

BG-507

300X600X13.5mm

100-240V

SMD3528

22 W

240 pcs

1150 Lm

W / WW

IP50

BG-511

600x600x13.5mm

100-240V

SMD3528

39 W

372 pcs

2200 Lm

W / WW

IP50

BG-512

600x1200x13.5mm

100-240V

SMD3528

78 W

744 pcs

4380 Lm

W / WW

IP50

LED PANEL LIGHT

NO.

SIZE(mm)

VOLTAGE

LED TYPE

POWER

LED QTY.

LUMENS

COLOR

IP Grade

BG-510

Φ 10"x H11mm

100-240V

SMD5050

16 W

100 pcs

950 Lm

W / WW

IP50

BG-508

Φ 8"x H11mm

100-240V

SMD5050

11 W

70 pcs

660 Lm

W / WW

IP50

BG-506

Φ 6"x H11mm

100-240V

SMD5050

8 W

50 pcs

560 Lm

W / WW

IP50

BG-504

Φ 4"x H11mm

100-240V

SMD5050

5 W

30 pcs

305 Lm

W / WW

IP50

RGB PANEL LIGHT

NO.

SIZE(mm)

VOLTAGE

LED TYPE

POWER

LED QTY.

LUMENS

COLOR

IP Grade

BG-515

300x300x13.5

100-240V

SMD5050

10 W

36 pcs



R G B

IP50

BG-516

300x600x13.5

100-240V

SMD5050

24 W

84 pcs



R G B

IP50

BG-517

300X900X13.5

100-240V

SMD5050

36 W

116 pcs



R G B

IP50

BG-518

300x1200x13.5

100-240V

SMD5050

48 W

168 pcs



R G B

IP50

BG-519

600x600x13.5

100-240V

SMD5050

24 W

84 pcs



R G B

IP50



8 inch 3528 LED Ceilignt Light


8 inch 3528 LED Ceilignt Light

  8 inch 3528 LED Ceilignt Light



  8 inch 3528 LED Ceilignt Light



  8 inch 3528 LED Ceilignt Light



  8 inch 3528 LED Ceilignt Light



  8 inch 3528 LED Ceilignt Light



  8 inch 3528 LED Ceilignt Light



  8 inch 3528 LED Ceilignt Light







Notes

1.Please read instructions carefully before start installation;

2.Input voltage shall comply with the instruction;

3.Recommended ambient temperature is from -20degree to +45degree, use the product beyond the temperature range will bring bad effect to its service life.

4.This product is for indoor use only;

5.Installation and maintenance of the product should be carried our by professional person.



LED Panel Applications:



Widely used indoor and outdoor lighting, such as room, office, KTV, Bar, wall edge, sink, conceal, ceiling, backlight for indoor lighting, and architecture, sign, advertisement, path, gallery etc for outdoor lighting.
