10w 200X200 Led Lighting Panel

10w 200X200 Led Lighting Panel thumbnail-1
10w 200X200 Led Lighting Panel photo-1
US$ 10 - 180 MOQ: 1 Piece
Key Specifications
Get Latest Price
LED Light Source:
SMD5630
Warranty(Years):
3
Input Voltage(V):
AC100-240V
Contact Supplier Request Quote Chat Now
Shenzhen Bright Technology Industrial Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD5630
Warranty(Years) 3
Input Voltage(V) AC100-240V
Lamp Power(W) 10
Lamp Luminous Flux(lm) 700
Lamp Luminous Efficiency(lm/w) 70
Color Temperature(CCT) Cool White
Working Temperature(℃) -20, 60
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating Other, IP50
Certification CE, FCC, LVD
Place of Origin Guangdong, China
Brand Name Bright-panel light
Model Number BG-513-10W

Specifications

10w led panel light :
1.white led panel
2.AC100-240v led panel
3.SAMSUNG5630 LED Panel
4.CE&ROHS

SAMSUNG5630 LED Panel:



Features:

1. Energy-efficient, environment-friendly

2. No glare, no noise, no UV

3. Ultra slim and fashionable design

4. Maintenance free,easy installation

5. No maintenance for the life of unit, apart from cleaning

6. Solid-state,high shock/vibration resistant

7. No fluorescent flickering

8. No danger of broken glass



NO. SIZE(mm) VOLTAGE(V) LED TYPE POWER(W) LED QTY.  LUMENS FLUX  (Lm)(white) COLOR IP Grade
BG-513-10W 200X200
X12mm		 AC 100-240 SAMSUNG
5630		 10W 24 pcs 700 Lm WW:
2700-3300K
NW :
4000-4500K
CW:
5500-6500K		 IP50
BG-501-18W 300x300
X12mm		 AC 100-240 SAMSUNG
5630		 18W 48 pcs 1400 Lm WW:
2700-3300K
NW :
4000-4500K
CW:
5500-6500K		 IP50
BG-501-36w AC 100-240 36W 96 pcs 2900 Lm IP50
BG-507-18W 300X600
X12mm		 AC 100-240 SAMSUNG
5630		 18 W 44 pcs 1400 Lm WW:
2700-3300K
NW :
4000-4500K
CW:
5500-6500K		 IP50
BG-507-36W AC 100-240 36 W 88 pcs 2900 Lm IP50
BG-502-31W 300X900
X12mm		 AC 100-240 SAMSUNG
5630		 31 W 72 pcs 2500 Lm WW:
2700-3300K
NW :
4000-4500K
CW:
5500-6500K		 IP50
BG-503-36W 300x1200
X12mm		 AC 100-240 SAMSUNG
5630		 36 W 88 pcs 2900 Lm WW:
2700-3300K
NW :
4000-4500K
CW:
5500-6500K		 IP50
BG-503-54W AC 100-240 54 W 176 pcs 4300 Lm IP50
BG-503-72W AC 100-240 72 W 176 pcs 5700 Lm IP50
BG-511-36 W 600x600
X12mm		 AC 100-240 SAMSUNG
5630		 36 W 88 pcs 2900 Lm WW:
2700-3300K
NW :
4000-4500K
CW:
5500-6500K		 IP50
BG-511-48W AC 100-240 48 W 110 pcs 3800 Lm IP50
BG-511-54W AC 100-240 54 W 120 pcs 4300 Lm IP50
BG-511-72W AC 100-240 72 W 176 pcs 5700 Lm IP50
BG-514-36 W 620x620
X12mm		 AC 100-240 SAMSUNG
5630		 36 W 96 pcs 2900 Lm WW:
2700-3300K
NW :
4000-4500K
CW:
5500-6500K		 IP50
BG-514-54W AC 100-240 54 W 120 pcs 4300 Lm IP50
BG-514-72W AC 100-240 72 W 192 pcs 5700 Lm IP50
BG-515-36W 150x1200
X12mm		 AC 100-240 SAMSUNG
5630		 36 W 88 pcs 2900 Lm WW:
2700-3300K
NW :
4000-4500K
CW:
5500-6500K		 IP50
BG-515-48W AC 100-240 48 W 99 pcs 3800 Lm IP50
BG-512-54W 600x1200
X12mm		 AC 100-240 SAMSUNG
5630		 54 W 176 pcs 4300 Lm WW:
2700-3300K
NW :
4000-4500K
CW:
5500-6500K		 IP50
BG-512-72W AC 100-240 72 W 720 pcs 5700 Lm IP50

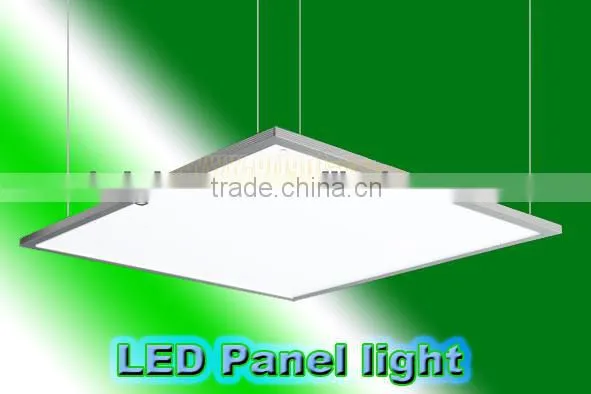

Led panel light picture:



10w 200X200 led lighting panel



10w 200X200 led lighting panel



10w 200X200 led lighting panel



10w 200X200 led lighting panel



10w 200X200 led lighting panel





10w 200X200 led lighting panel
