Specifications
led downlight panel light:1.600x1200mm led panel
2.AC 100-240v
3.SAMSUNG5630LED Panel
4.CE&ROHS

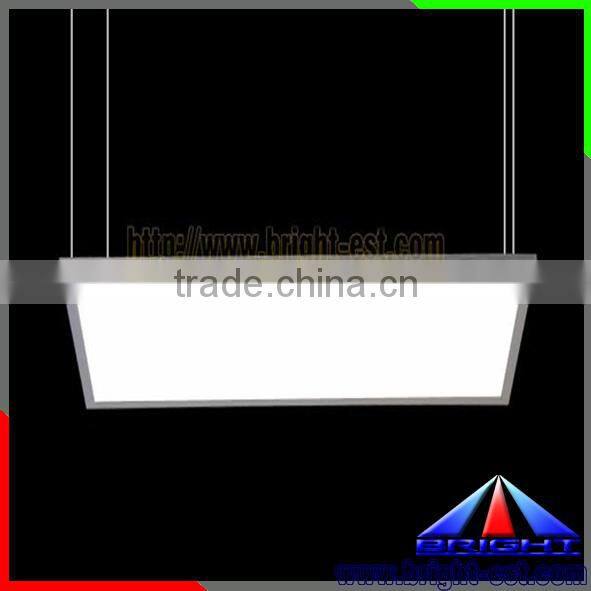

72w led flat panel light 600x1200mm :
Led panel:
Features:
Energy saved up to 60%. high brightness,even lighting output.
5-years life time
Wide range of input voltage: AC100-240V
Instant start, no flickering, no humming
New high efficiency constant current driver
Special circuit design, each group of LEDs work separately,avoiding any problem of
lighting output caused or influenced by single faulty LED
No electrical wave,conforming to CE
Green environmental protection, lead-free material, conforming to ROHS
No RF interference
Electrical /Optical Characteristics
NUMBER | ITEM | DESCRIPTION |
01 | Input Voltage | AC100-240V |
02 | Operating Voltage | DC24V |
03 | Power Consumption | 72 W |
04 | LED Qty | 720PCS / 3014SMD |
05 | Lumen | White color: 5500-6000k (5700Lm) |
06 | Life Time | >50,000 Hours |
07 | OperatingTemperature | -10 °C to +50 °C |
08 | Storage Temperature | -20 °C to +80 °C |
09 | Humidity Operating | 10-80% |
10 | Humidity Storage | 10-80% |
11 | Certifications | CE , RoHS |
12 | Weight | 9.8 KGS |
13 | Size | 1195*595*13mm |
14 | IK Code | IK04 |
15 | IP Code | IP41 |
16 | Luminaires Class | Class Ⅲ |
17 | LUMENS FLUX (white) | 5700 Lm |
18 | Fixing Ways | In-built, Suspending |
Applications:
Hotels
Conference / Meeting rooms
Factories & Offices
Commercial Purposes
Residential / Institution BuildingsHospitals
Schools, Colleges & Universities
Other Lighting

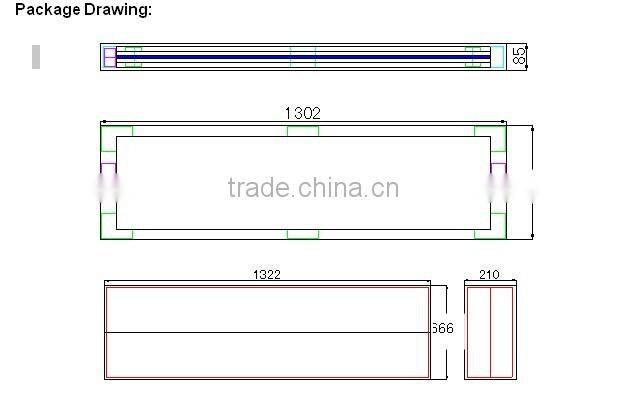

Inner Carton : 1302*694*85mm (2pcs/carton)
Outer Carton: 1322*724*210mm(4pcs/carton)
Net weight of each piece: 10.8 KG
Quantity: 4PCS/CTN
Picture:
