Home > Products > laser tube CL/PL/XCL series > CL/PL series CO2 laser tube
CL/PL series CO2 laser tube
- 50000 Piece / Pieces per Month
- Beijing/Tianjin
- Mini Laser Module with APC 4x8mm
- Laser Module, 15x60mm Size 405nm-850nm 8um-110um Microbeam Laser Diode Module for Laser Positioning & Pointing
- Mini laser module for laser alignment tools
- 1-5mw 520nm Low Consumption Mini Laser Diode Module 4x8mm
- 1-5mw Mini Infrared Laser Module for Measure Tools and Medical Treatment Instrument
- Mini laser module for bar code scan instrument
Product Details
Place of Origin: | Beijing, China | Brand Name: | EFR Laser Tube | Model Number: | CL-1200 |
Product Description
Specifications
1.lifespan:3000 hours2.warranty period:120days.
3.length:1250mm-1650mm.
4.No catalyst.
5.power:60-100w.

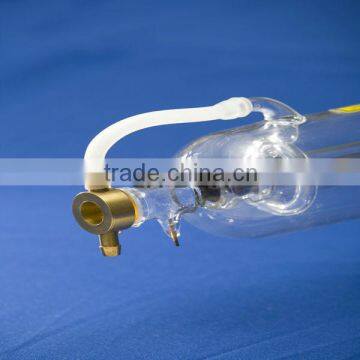

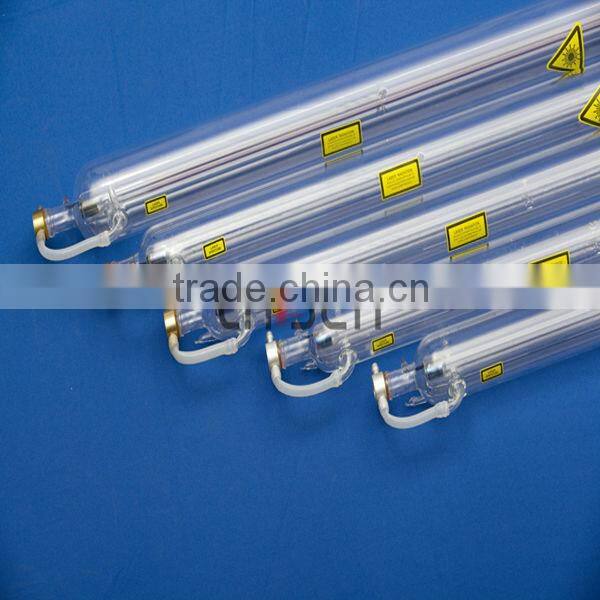

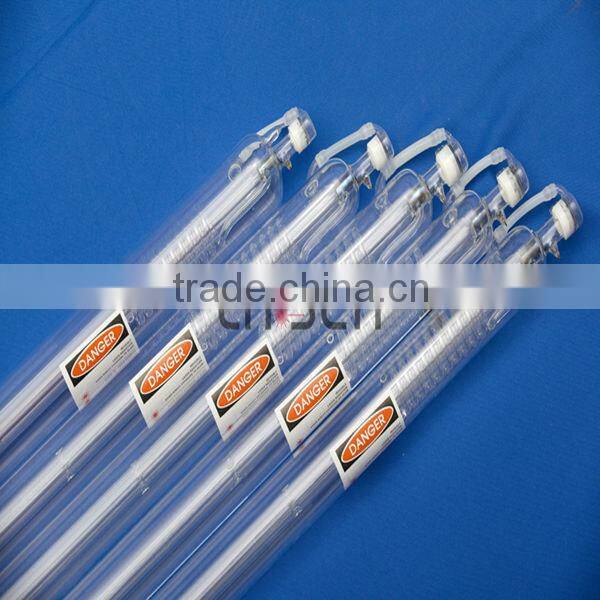

CL series co2 laser tube
Features
1. CL serial co2 laser tube can stably give out laser beam. By means of special
equipment and import gas,the decomposition speed of the working gas has been
effectively reduced so as to greatly prolong its working lifespan.These advantages
of our products make our customers exprience the features of EFR products high
performance-to-price ratio.
2. Good mode.(base film more than 50%)and small beam spot(3-5mm)
3. High-power,such as the power of 1200mm co2 laser tubes usually reachs more
than 70w,1600mm co2 laser tubes' power can reach more than up to 100w.
4. Applied to laser engraving ,laser cutting,laser carving,laser drilling,etc. A complete
range of specifications can be widely used in industrial cutting, laser engraving,laser
mould processing,laser engraving machine,laser cutting machine,laser making
machine,crafts engraving,leather processing,decorationand laser medical treatment
machine and other fields.
our products
Parameter List for Long Lifespan CL Series CO2 Laser Tubes
Model | length (mm) | diameter (mm) | output power (w) | maximum power (w) | warranty period | catalyst |
CL1200 | 1250 | 55 | 60 | 70 | 120 days | no |
PL1600 | 1650 | 60 | 80 | 95 | ||
XCL1600 | 1650 | 75 | 100 | 110 |
Packing style
Quality Assurance:
Lifespan: 3000 hours. Warranty period: 120days.
We can be a good parnter of you in China.
Contact Us
- Beijing EFR Laser S&T Co., Ltd.
- Contact nameLichang Zhang
- Phone86-10-61507254
- AddressPlant 620001, North Ladder Room Of Plant 6, In Fanghe Zhengyuan Industrial Park, No. 16, Guanghua Road, Zhangjiawan Tongzhou Development Zone
