36W 60*60cm Colour Changeable RGB Led Panel Light

Specifications

RGB led pannel light

specifications:

1.voltage:AC100-240V

2.power:36W

3.led color:RGB

4.led type:SMD5050

5.life span:>50000hours

ing temperature:-20~60

7.certification:CE RoHs

8.weight:4.7KGS

9.size:600*600*9mm

10.warranty:3 years

Features:

1.Energy saved up to 50%. high brightness, even lighting output  5years life time.

2.Wide range of input voltage: AC100-240V

3.Instant start, no flickering, no humming

4.New high efficiency constant current driver

5.Special circuit design, each group of LEDs work separately,avoiding any problem o

lighting output caused or influenced by single faulty LED

6.No electrical wave,conforming to CE

7.Green environmental protection, lead-free material, conforming to RoHS

8.No RF interference

Pictures:

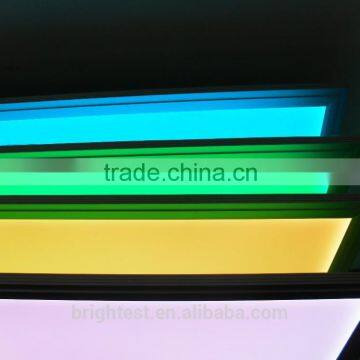

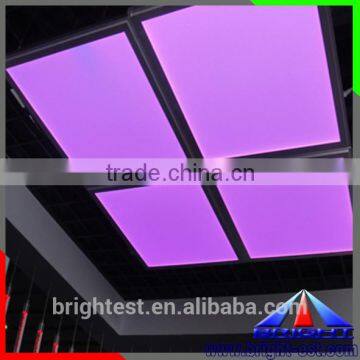

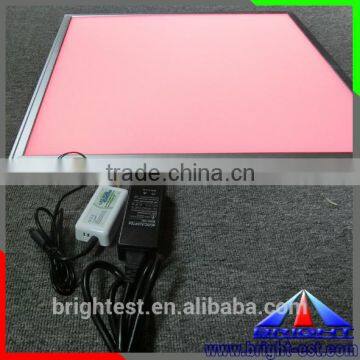

RGB led pannel light:

Electrical /Optical Characteristics:

Dimension:

Installation Instruction:

1. In-built

2.Suspending:

Installation:

1,This product should be installed by trained electricians.

2,check integrality of the products when unpack the packing.

3,The distance between the light and any flammable materials must not be less than 0.2m. The distance between the upper part of the installed light and the ceiling must not be less than2 cm.The light must not be installed into ceilings or walls that contain heat-insulating material.The main cable must not connect with the low voltage cable or the surface-mounted lights.

4,Guide the lights' connecting cables through the drilled-out hole,and fix thesurface-mounted lights with the pre-fitted clips. Make sure that these are securelyconnected to the base material.

5,When laying the cables, make sure that the cables and plugs are not subjected to any tensile or twisting forces. Fit the cable tension relieving mechanisms to the connection points of the surface-mounted lights. Do not kink cables. Output cables should be laid separately and at a distance from other cables.

6,After installation, connect the transformer to the mains supply.

7,Proceed by connecting the wiring cables to the luminaries. Usually, the brown (or black) wire is the Live wire, connect it with the terminal marked "L". The blue wire is Naughty wire, connect it with the terminal

marked "N".

8,Use only the LED drover included, and do not connect the surface-mounted lights to otherloads.

9, Do not remove the name plate of the power suply and driver of the light

 Packaging:

Applications:

1.Hotels

2.Conference / Meeting rooms

3.Factories & Offices

4.Commercial Buildings

5.Residential / Institution Buildings

6.Schools, Colleges & Universities

7.Hospitals

8.Other Lighting Occations

Notes:

1.  All dimension units are millimeters

2.  All dimension tolerance is ±0.5mm unless otherwise noted

About Us:

We are professional Shenzhen based LED light factory with reliable quality and competitive price, specialized in LED strip, LED rigid bar, LED Tube, LED Panel light, LED down light.
Our product sell very well overseas by trading company, we believe that our direct sell will bring you more benefit, look forward to cooperate with you!

Notes:

1. Please always use the light after taking it out of the package.

2. Before starting use of the light, please check if the light was damaged during transportation. If found any damage, please DO NOT install or use it.

3. Any maintenance should be performed by trained professionals only.

4. Keep packaging material away from the reach of children and pets. Risk of suffocation!

5. Caution! The packaging contains small parts that may be swallowed by children.

6.  Never leave children unattended in the vicinity of the lights a

nd do not allow them to play with electrical devices.

7. ty to avoid looking directly in the LED beam, especially for extended periods of time. Do notshine the LED light in another person's eyes.

8. Never cover the lights with other objects.

9. Never allow the light to come into contact with open flames or external heat sources.

10.The products need to repair inspection or special treatment of retirement after service time.
