CNC-602A injector flow test 2014 Launch CNC 602A Ultrasonic Fuel Injector Cleaner & Tester auto testing launch cnc602a
Instruction
CNC-602A is an advanced electromechanical product, which can clean and test injectors by simulating engine working conditions. It can also perform cleaning on the injectors and fuel supply system on vehicle .
Function
Ultrasonic cleaning |
To perform simultaneous cleaning on several injectors and to remove the carbon deposits on the injector completely. |
Uniformity/Sprayability test |
To test the uniformity of injecting amount of each injector, and to monitor the spraying status of each injector with the help of backlight. This test is also for reverse flush. |
Leakage test |
To test the sealing and dribbling conditions of injectors under system pressure. |
Injecting flow test |
To check the injecting amount of the injector in 15 seconds of constant injection. |
Auto. test |
To test injectors by simulating different working conditions. |
On-vehicle cleaning |
The unit is equipped with various adaptors and couplers that facilitate cleaning on the injectors on vehicle. |
Specification
Dimensions |
385mm×410mm×500mm |
Fuel tank capacity |
4700ml |
Pulse width |
0.525ms; step 0.1 ms |
Simulated RPM range |
109990rpm |
step |
10rpm |
Time range |
19999s |
Ultrasonic cleaner power |
100W |
Power |
250W |
Power supply |
AC220V±10%,50/60Hz;AC110V±10%, 50/60Hz. |
Gross Weight |
41Kg |

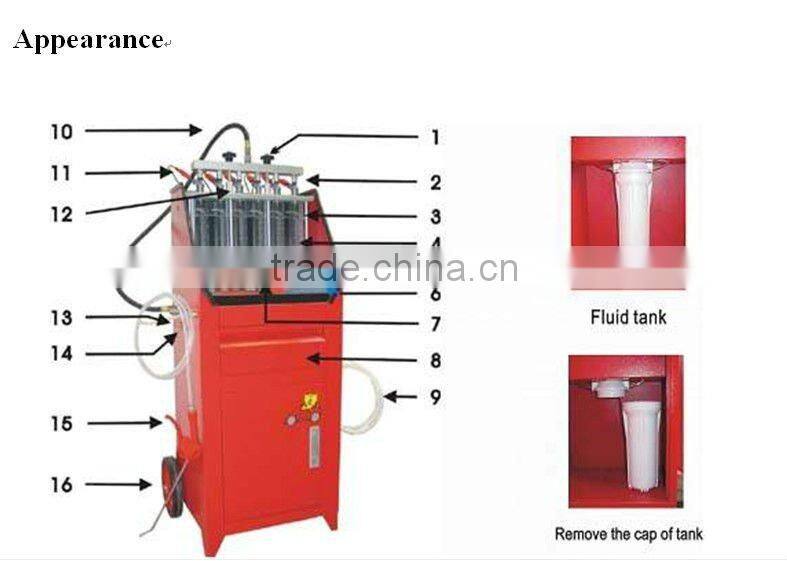

1. Standing nut |
2. Connector of injector |
3. Stand of test tube |
4. Test tube |
5. Gauge |
6. Pressure regulator |
7. Keypad |
8. Drawer for tools |
9. Bubble recycle hose |
10. Fuel hose |
11. Pulse signal cable |
12. Turnbuckle |
13. Air inlet |
14. Bubble outlet |
15. Bubble jet gun |
16. Truckle |
