36W LED Light Panel,RGB LED Panel Light 600x600mm
FEATURES:
1. LED panel is a kind of advanced indoor light, which inherits the characteristics of simplicity and classics of Europe style. It is gaining the favor of customers for its super thin profile and clear bright light effect. LED panel creates a strong sense of depth and space when applied in indoor places such as meeting room, VIP reception room, and hotel.
2. The frame is made of 6063 aluminum alloy with anodic oxidation treatment, which is very good in heat dissipation. Light source is 2835LED, which can create a flat lighting effect when its light pass through the light guide plate.
3. LED panel is more energy saving and environment protecting with longer life than traditional light products. Its light is well-proportioned, soft, comfortable and bright.
4. Eye-shield, No flash, No Glare, Ultraviolet.No strobe. Working with Pure DC power, eliminate the visual fatigue caused by the stroboscopic of traditional light source.
Specification:
| NO. | SIZE(mm) | VOLTAGE(V) | LED TYPE |
LED QTY. (PCS) |
POWER(W) | LUMENS FLUX (Lm)(white) | COLOR | IP Grade | Accessory |
| BG-513- 10W |
200X200 X9mm |
AC 100-240 | SMD 2835 | SMD 2835 | 10W | 700 Lm |
WW: 2700-3300K NW : 4000-4500K CW: 5500-6500K |
IP50 | CE Driver |
| BG-501-12W |
300x300 X9mm |
AC 100-240 | SMD 2835 | 50 | 12W | 900 Lm |
WW: 2700-3300K NW : 4000-4500K CW: 5500-6500K |
IP50 | CE Driver |
| BG-501-18w | AC 100-240 | 80 | 18W | 1400 Lm | IP50 | ||||
| BG-507-18W |
300X600 X9mm |
AC 100-240 | SMD 2835 | 90 | 18 W | 1400 Lm |
WW: 2700-3300K NW : 4000-4500K CW: 5500-6500K |
IP50 | CE Driver |
| BG-507-27W | AC 100-240 | 120 | 27 W | 2100 Lm | IP50 | ||||
| BG-503-36W |
300X1200 X9mm |
AC 100-240 | SMD 2835 | 180 | 36W | 2900 Lm |
WW: 2700-3300K NW : 4000-4500K CW: 5500-6500K |
IP50 | CE Driver |
| BG-503-48W | AC 100-240 | 252 | 48 W | 3800 Lm | IP50 | ||||
| BG-503-54W | AC 100-240 | 320 | 54 W | 4300 Lm | IP50 | ||||
| BG-511-36 W |
600x600 X9mm |
AC 100-240 | SMD 2835 | 160 | 36W | 2900 Lm |
WW: 2700-3300K NW : 4000-4500K CW: 5500-6500K |
IP50 | CE Driver |
| BG-511-48W | AC 100-240 | 228 | 48 W | 3800 Lm | IP50 | ||||
| BG-511-54W | AC 100-240 | 252 | 54 W | 4300 Lm | IP50 | ||||
| BG-512-54W |
600x1200 X9mm |
AC 100-240 | SMD 2835 | 240 | 54 W | 4300 Lm |
WW: 2700-3300K NW : 4000-4500K CW: 5500-6500K |
IP50 | CE Driver |
| BG-512-72W | AC 100-240 | 320 | 72 W | 5700 Lm | IP50 |

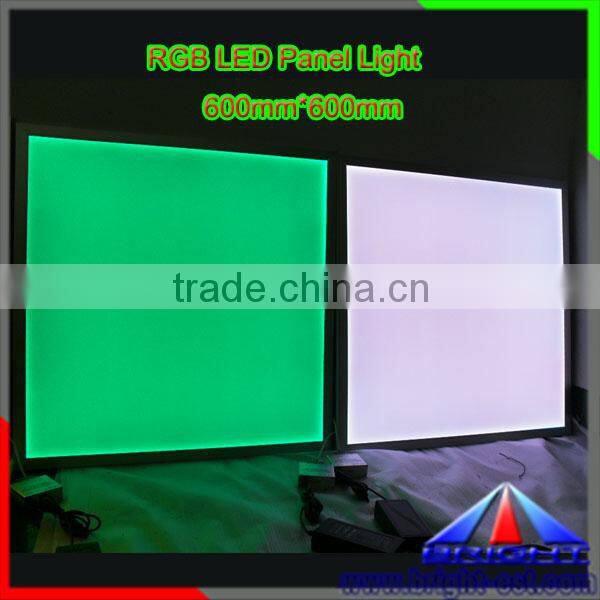

Pictures:

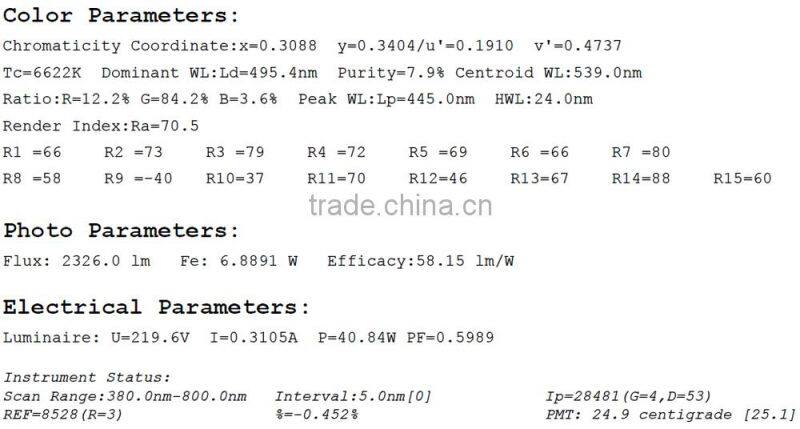

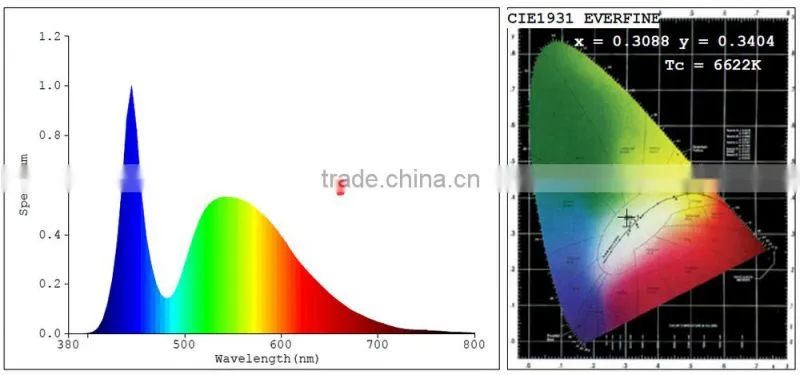

Light Source Test Report:

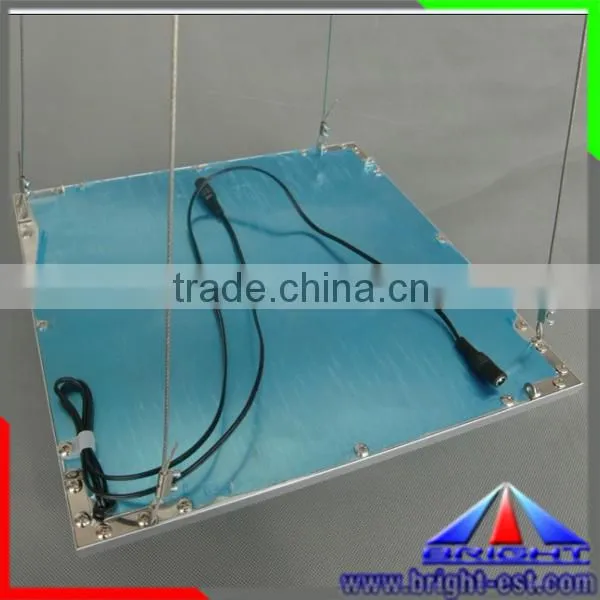

LED Panel Light Installation:
Notes
1.Please read instructions carefully before start installation;
2.Input voltage shall comply with the instruction;
3.Recommended ambient temperature is from -20degree to +45degree, use the product beyond the temperature range will bring bad effect to its service life.
4.This product is for indoor use only;
5.Installation and maintenance of the product should be carried our by professional person.
Applications:
Widely used indoor and outdoor lighting, such as room, office, KTV, Bar, wall edge, sink, conceal, ceiling, backlight for indoor lighting, and architecture, sign, advertisement, path, gallery etc for outdoor lighting.
Express Delivery:
Payment Terms:
1.T/T (in advance)
2.Paypal
3.Western Union
1.We are Alibaba Assessed 6 years Gold Supplier;
2.We are a factory manufacturing led indoor lights,best production capability ,best quality control, Best Service ;
3.100% QC inspection Before Shippment;
4. CE/ROHS listed,competitve price.
FAQ
Q1: What is the Warranty for the led strip light?
A1: 2 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.
Q2:: What is CRI?
A2: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.For LED strip light,the CRI is 80Ra .
Q3:Is there cheap shipping cost to import to our country?
A3: For small order,express will be best.And for bulk order,we suggest ship by sea, but take much time.
For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Q4:Can we get support if we have our own market position?
A4: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
