Advanced plastic vacuum forming machinery

1.Overall

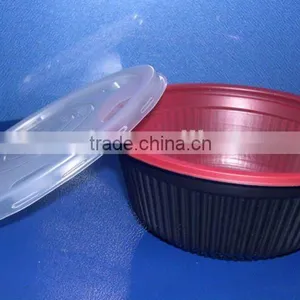

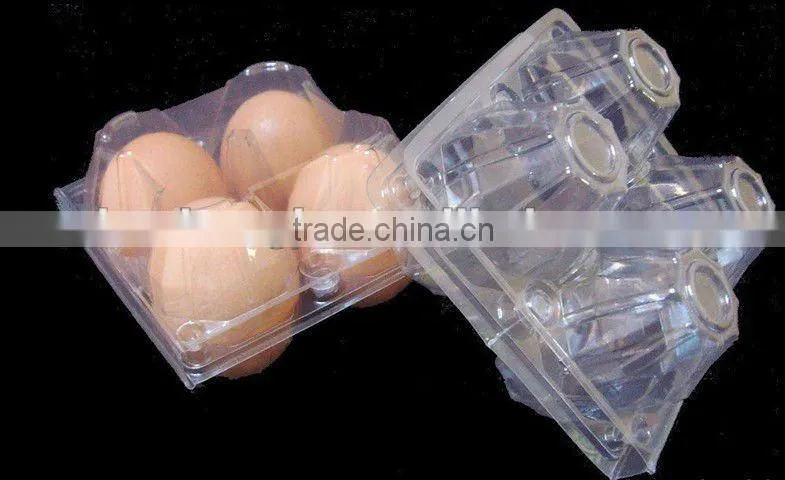

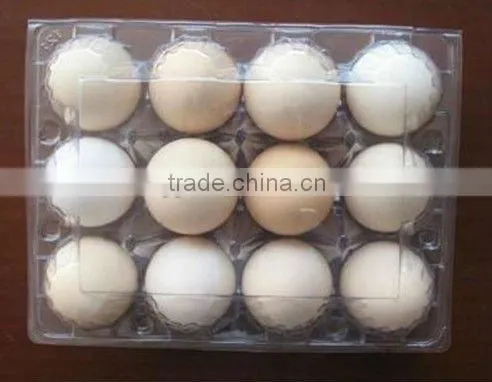

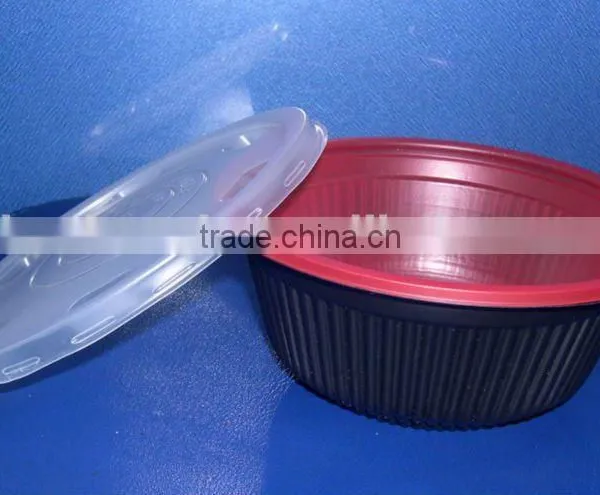

BC-700/1200A-Full Automatic Vacuum Forming machine is designed by the principle of mechanical-electrical-pneumatic integration. It adopts PLC control system, panel and digital power control. This full-automatic forming equipment for thermoforming plastic sheet includes feeding, heating; forming, cooling, mold ejecting, cutting at one blow. This machine has luxury configuration and gets reliable performance and handy operation. It is suitable for thermoforming PS, HIPS, PVC, PET, PP, flocking sheet that can produce varieties of blister package and blister tray. For example: curatorial injection tray, oral liquid tray, mobile telephone tray, cookies tray, one-off tableware etc...

2. Technology Parameters Introduction

Length of forming :760-1200mm

Width of forming :500-700mm

Height of forming: ≤165mm

Production speed: 60-720cycles/h

Production Speed:180-480Cycles/h

Power of oven: 24 KW (Upper Oven)

Power of vacuum pump motor: 3 KW

Vacuum pump capacity: 100m³/h

Power of air compressor :15Kw

Air displacement of air compressor:2m³/min

Voltage :380/220V 50HZ

Overall dimensions:7950*1450*2550mm

Weight:3000Kg

3.Configuration

4.Key Features:

1. Width of forming can be adjusted freely on customers' request from 500 to 700mm.

2. Feeding the material by induction motor & feeding error within 4mm. Length set can be realized by programming on panel, expediently and precisely.

3. Shacking mold ejecting: 1--20 per second free adjustment, adjustable amplitude, upper mold second down, blown, insure products not to deform and easily mold ejecting.

4. Customers can choice combining mold (up to 18 combining specs) or fixed spec mold.

5. Machine is controlled by PLC system, with a 5.7 inches panel, handy manipulation. Second vacuum, vacuum advancing and upper mold second down are also available.

6. Advance feeding sheet can avoid over temperature of first feed, utilizing sheet efficientl.
