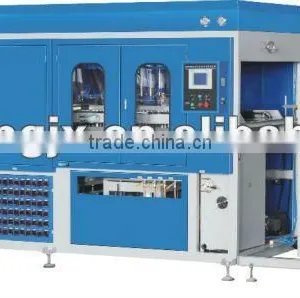

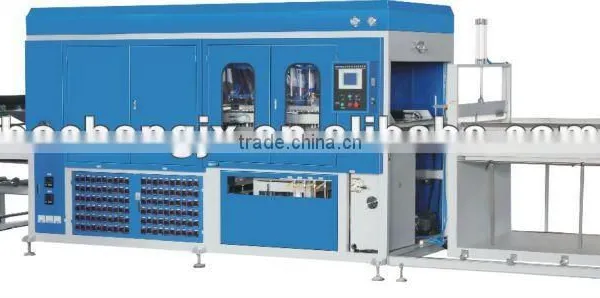

Help CenterBC-700/1200A-1 Full Automatic High-speed Vacuum Forming Machine
Related Products
-
BC-700/1200A-2 Automatic High Speed Vacuum Forming MachineUS$ 22,000 - 26,000MOQ: 1 Set -
Plastic Vacumm Forming MachineUS$ 22,000 - 24,000MOQ: 1 Set
-
PVC PET APET PETG PP PS ABS Thermoforming Machine Vacuum Forming MachineUS$ 24,000 - 28,000MOQ: 1 Set
-
PVC PET APET PETG PP PS HIPS Thermoforming Machine Vacuum Forming MachineUS$ 24,000 - 28,000MOQ: 1 Set
-
2014 New Design Plastic Full Automatic Vacuum Forming MachineUS$ 22,000 - 28,000MOQ: 1 Set
Main features:
BC-700/1200A Automatic Computerized Thermoforming machine is designed by the principle of mechanical-electrical-pneumatic integration. It adopts PLC control system, panel and digital power control. This full-automatic forming equipment for thermoforming plastic sheet includes feeding, heating; forming, cooling, mold ejecting, cutting at one blow. This machine has luxury configuration and gets reliable performance and handy operation.
Application area:
It is suitable for thermoforming PS, HIPS, PVC, PET, PP, flocking sheet that can produce varieties of blister package and blister tray. For example: curatorial injection tray, oral liquid tray, mobile telephone tray, cookies tray, one-off tableware etc...
Main technical parameters:
Model |
BC-700/1200A |
Length of forming |
760-1200mm |
Width of forming |
500-700mm |
Height of forming |
≤165mm |
Production Speed |
60-720Cycles/h |
Power of oven |
24KW (Upper Oven) |
Power of vacuum pump motor |
3Kw |
Vacuum pump capacity |
100m3/h |
Power of air compressor |
15Kw |
Air displacement of air compressor |
2m3/min |
Voltage |
380/220V 50HZ |
Overall dimensions |
7950*1450*2550mm |
Weight |
3000Kg |
Configuration:
Vacuum pump |
BECKER 100m3/h (Germany) |
Solenoid Valve |
SMC (Japan) |
Panel and PLC |
SIEMENS |
Control relay |
Schneider |
Cylinder |
YIDA |
Heating system |
120 Infrared Ceramic Heating Bricks |
Temperature-adjusting system |
60 Digital Power Control
|
Automatic Spray Gun |
7-UP (Taiwan), eight |
Transducer |
SCHNEIDER |
Induction Motor |
Taiwan |
Code device |
NEMICON (Japan) |
F.R.L. Combination |
SMC (Japan) |
Miniature Circuit Breaker |
Schneider |
AC Contactor |
Schneider |
