Professor Supplier Plastic Biscuit Tray Vacuum Forming Machine BC-700/1200A
- Ningbo
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Condition | New | Type | Other, Vacuum Forming Machine, Vacuum forming machine | |
| Plastic Type | PP | Product Type | Fast Food Box | |
| Automatic | Yes | Place of Origin | Zhejiang, China | |
| Brand Name | Bocheng | Model Number | BC-700/1200A-2 | |
| Voltage | 380V | Power(W) | 50KW | |
| Weight | 3000KGS | Dimension(L*W*H) | 7950*1450*2550mm | |
| Certification | CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Professor Supplier Plastic Biscuit Tray Vacuum Forming Machine BC-700/1200A
1. Overall
BC-700/1200A Plastic Vacuum Forming Machine is designed by the principle of mechanical-electrical-pneumatic integration. It adopts PLC control system, panel and digital power control. This full-automatic forming equipment for thermoforming plastic sheet includes feeding, heating; forming, cooling, mold ejecting, cutting at one blow. This machine has luxury configuration and gets reliable performance and handy operation. It is suitable for thermoforming PS, HIPS, PVC, PET, PP, flocking sheet that can produce varieties of blister package and blister tray. For example: curatorial injection tray, oral liquid tray, mobile telephone tray, cookies tray, one-off tableware etc...
2. Technology Parameters Introduction
Model: | BC-700/1200A-1 | BC-700/1200A-2 |
Forming length | 760-1200mm | 760-1200mm |
Forming width | 500-700mm | 500-700mm |
Forming height | <165mm | <165mm |
Production speed | 60-720cycle/h | 60-720cycle/h |
Electro-thermal furnace power | 24kw | 24kw( upper) 18kw(lower) |
Vacuum motor power | 3kw | 3kw |
Pumping rate | 100m³/h | 100m³/h |
Air compressor power | 7.5kw-11kw | 7.5kw-11kw |
Air displacement | 1.2m³/min | 1.2m³/min |
Voltage | 380/220V, 50Hz | 380/220V 50Hz |
Overall dimensions | 7950×1450×2550mm | 7950×1450×2550mm |
Weight | 3000kg | 3500kg |
3.Key Features:
1. Width of forming can be adjusted freely on customers' request from 500 to 700mm.
2. Feeding the material by induction motor & feeding error within 4mm. Length set can be realized by programming on panel, expediently and precisely.
3. Shacking mold ejecting: 1--20 per second free adjustment, adjustable amplitude, upper mold second down, blown, insure products not to deform and easily mold ejecting.
4. Customers can choice combining mold (up to 18 combining specs) or fixed spec mold.
5. Machine is controlled by PLC system, with a 5.7 inches panel, handy manipulation. Second vacuum, vacuum advancing and upper mold second down are also available.
6. Advance feeding sheet can avoid over temperature of first feed, utilizing sheet efficiently.

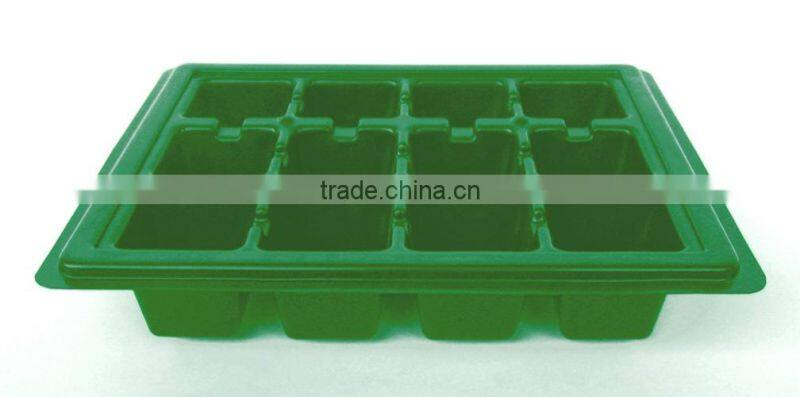

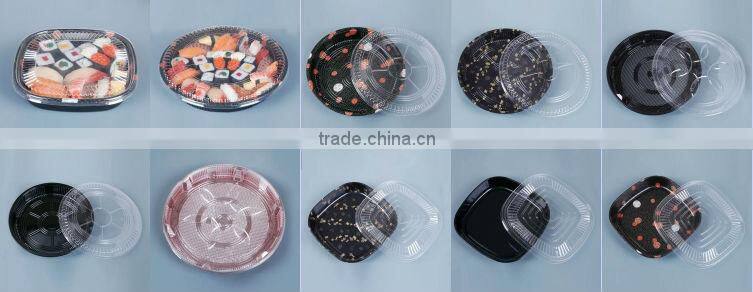

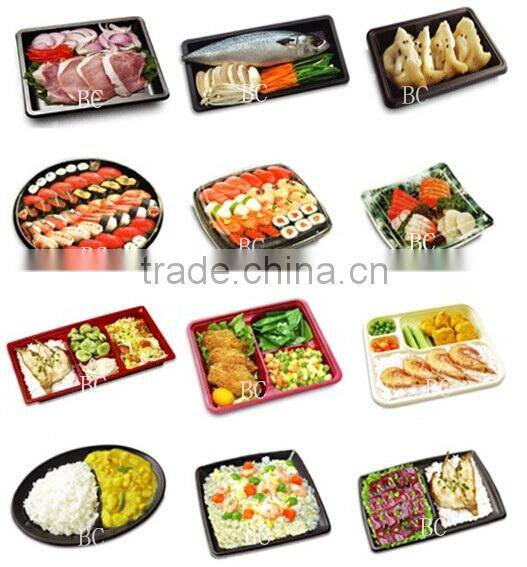

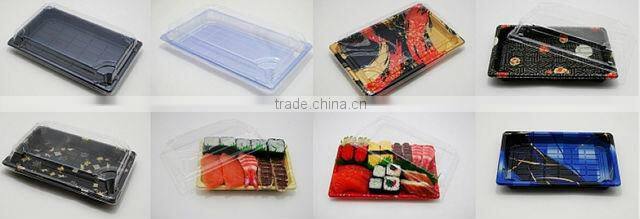

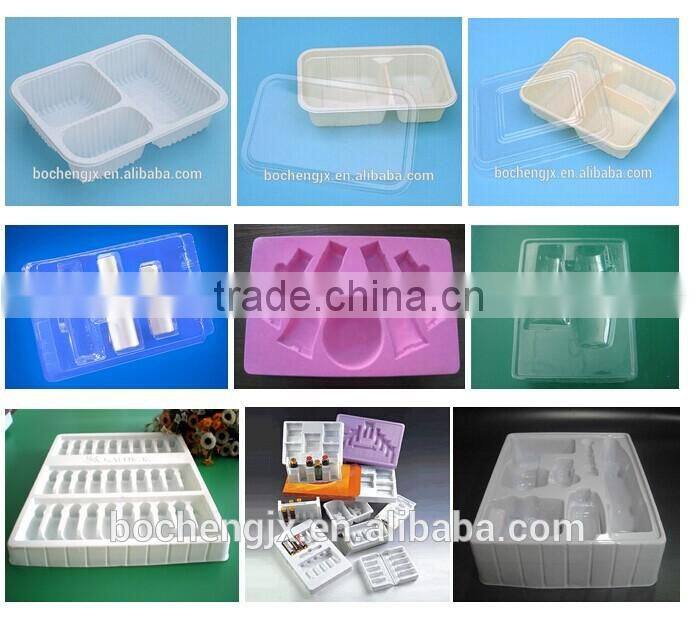

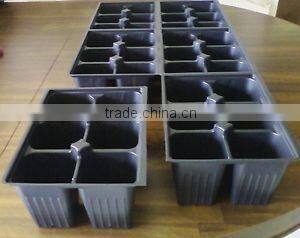

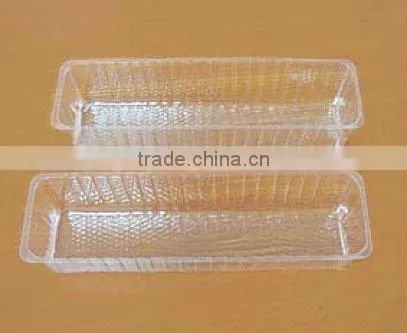

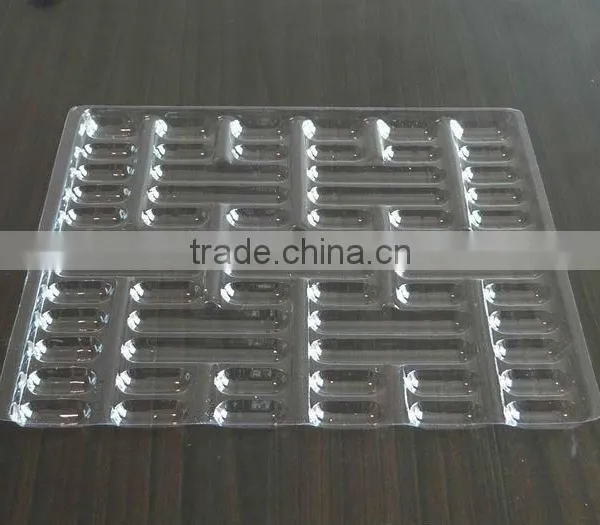

Samples for your reference:

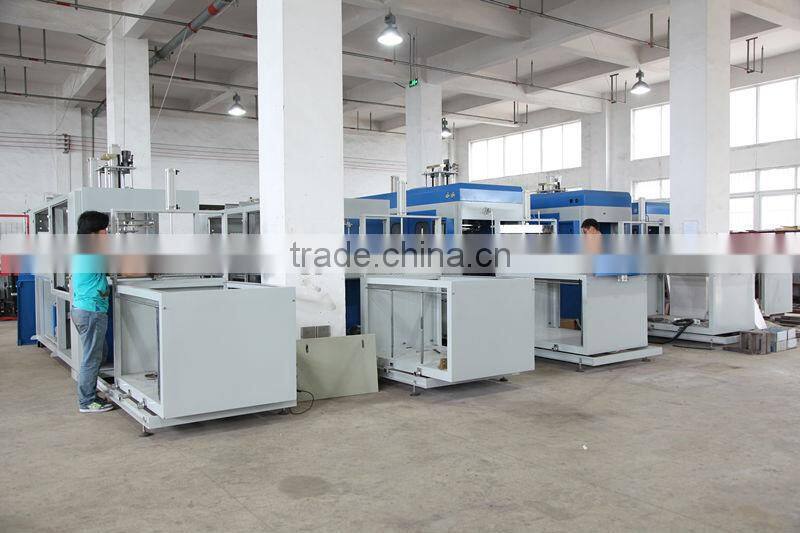

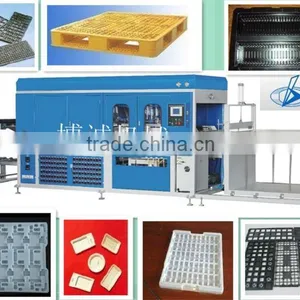

Machine Photos:

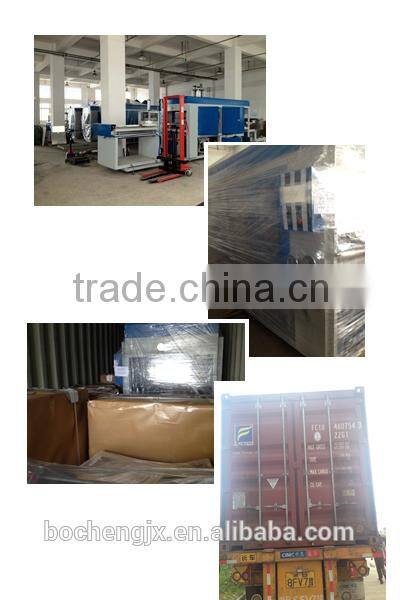

Packaging Details: Stretch film, one machine need a 20ft Container.
Delivery Details: 30 working days after payment.
Installation, Adjusting & Commissioning: The seller will for certain dispatch the technician to your country for installation, commissioning, adjusting the machine and training the workers in your plant. However the buyer should take on all costs required during our technician's stay in the buyer's country, round airplane tickets, accommodation, foods.
Guarantee terms:
We seller guarantee the machines are new (or unused) and the guarantee period will be given twelve months which starts from the date of the machine's arrival. During this period, the seller will provide free maintenance and free spare parts that caused by the machine's quality, but the buyer must pay the round trip tickets and accommodation expenses for seller's technicians.
We specializing in manufacturing of vacuum molding machine, cup lid machine, cup counting & packing machine, pillow-type packing machine, cup counting machine, and other auxiliary equipment, the plastic thermoforming product is friendly used in food, medicine, hardware, toys, handicrafts, sanitary ware, etc.
Our company passed through the CE, SGS certification. The product is selling at home and abroad. Like Asia, the Middle East, Africa, Eastern Europe, South America and other regions, and get good feedback from the customers.
Our company has a modern production facilities and a group of outstanding professionals, committed to make the machine with reliable performance, high yield, good appearance. And we have advance testing equipment, to ensure product quality. After-sale service is quick and considerable, the professional can provide users with a full range of installation, commissioning, training and other services at any time.
Warmly welcome customers at home and abroad calls letter consulting, business negotiations!
