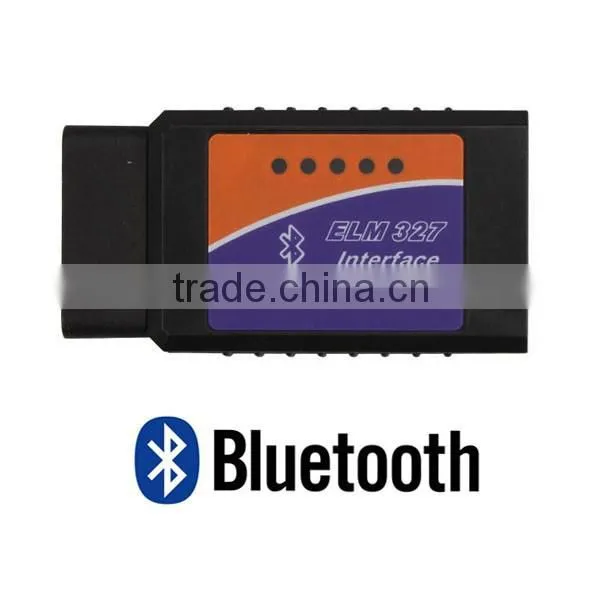

ELM 327 ODB2 Device Bluetooth OBD2 / OBD II Auto Car Diagnostic Scanner

Specifications

ELM 327 ODB2 Device Bluetooth OBD2
Bluetooth connection
Bluetooth range: 10m
Voltage: 12V







ELM 327 ODB2 Device Bluetooth OBD2 / OBD II Auto Car Diagnostic Scanner

The Elm327-Bluetooth adapter gives you the opportunity to "spy" on your car wirelessly. Convert your PC, PDA,
Mobile to a diagnostic tool and monitor all critical information of the car’s ECU.

The Elm327-Bluetooth is an adapter that connects to the car’s network and then creates a virtual cable between the adapter and the PC that it is connected. With the help of various open source application for the Elm327 you can have a digital gauge or an advanced diagnostic system and a powerful performance measurement toll in your screen.



Specifications:

Support OBD-II protocols as follows	ISO15765-4 (CAN); ISO14230-4 (KWP2000); ISO9141-2; J1850 VPW; J1850 PWM
Output protocol	RS232
Baud rate	9600 or 38400
Indicator LEDs	OBD Tx/Rx, RS232 Tx/Rx, Power
Operating voltage	12V, internal protection from short circuits/over voltages
Nominal idle current	45mA
Item Size	82 * 46 * 25 mm
Color	Black



Features:
bluetooth ELM327 is the newly developed wireless scan tool. It supports all OBD-II protocols
-Works with all OBD-II compliant vehicles
-Wireless (Bluetooth)
-Software included for Palm, PDA
-Software included for Windows PC
-Supports ISO 9141, KWP2000
-Supports SAE J1850
-Supports CAN bus



Bluetooth ELM 327 Functions:

- Read diagnostic trouble codes,both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
- Clear trouble codes and turn off the MIL ("Check Engine" light)

Display current sensor data, including:
- Engine RPM
- Calculated Load Value
- Coolant Temperature
- Fuel System Status
- Vehicle Speed
- Short Term Fuel Trim
- Long Term Fuel Trim
- Intake Manifold Pressure
- Timing Advance
- Intake Air Temperature
- Air Flow Rate
- Absolute Throttle Position
- Oxygen sensor voltages/associated short term fuel trims
- Fuel System status
- Fuel Pressure
- Many others



Upcoming Features:

- Data graphing and logging
- Freeze Frame data
- Continuous and Non-Continuous Oxygen Sensor test results



Package includes:

One CD software

One ELM327 Car Code Scanner Diagnostic Tool (Bluetooth Version)
