Specifications
ELM327 WiFiBluetooth connection
Bluetooth range: 10m
Voltage: 12V

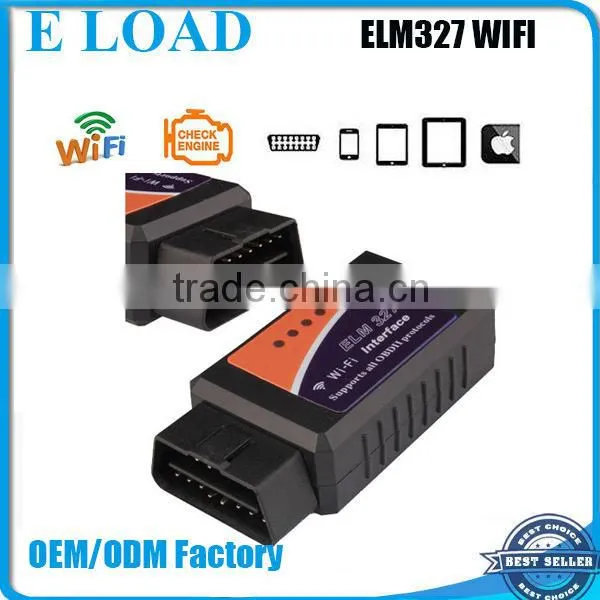

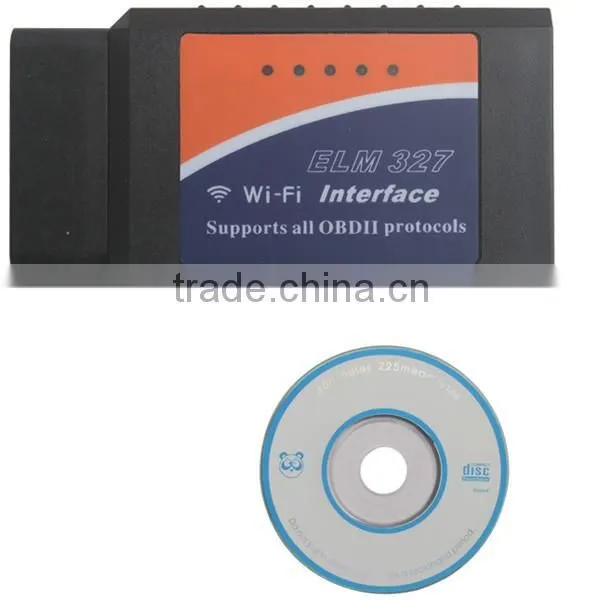

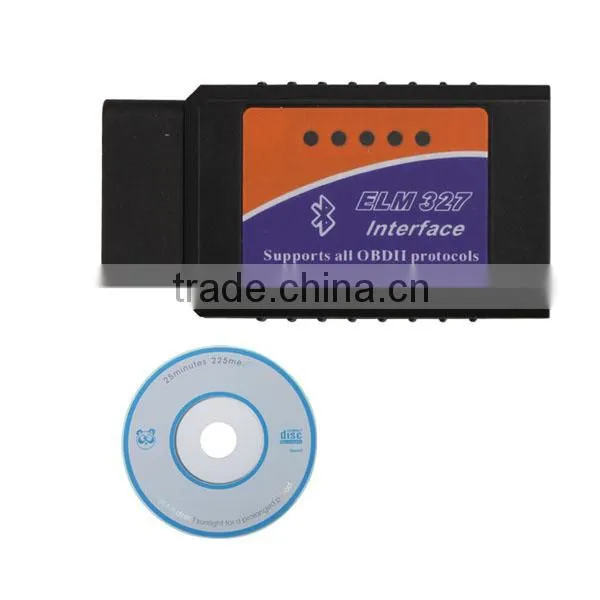

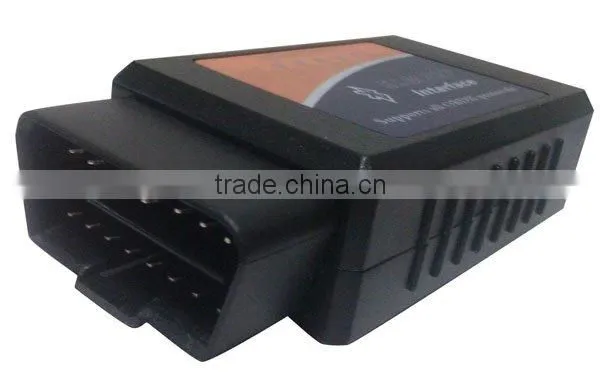

ELM327 WiFi OBD2 best Professional Universal Automotive Diagnostic Scanner
The Elm327-Bluetooth adapter gives you the opportunity to "spy" on your car wirelessly. Convert your PC, PDA,
Mobile to a diagnostic tool and monitor all critical information of the car’s ECU.
The Elm327-Bluetooth is an adapter that connects to the car’s network and then creates a virtual cable between the adapter and the PC that it is connected. With the help of various open source application for the Elm327 you can have a digital gauge or an advanced diagnostic system and a powerful performance measurement toll in your screen.
Specifications:
| Support OBD-II protocols as follows | ISO15765-4 (CAN); ISO14230-4 (KWP2000); ISO9141-2; J1850 VPW; J1850 PWM |
| Output protocol | RS232 |
| Baud rate | 9600 or 38400 |
| Indicator LEDs | OBD Tx/Rx, RS232 Tx/Rx, Power |
| Operating voltage | 12V, internal protection from short circuits/over voltages |
| Nominal idle current | 45mA |
| Item Size | 82 * 46 * 25 mm |
| Color | Black |
Features:
bluetooth ELM327 is the newly developed wireless scan tool. It supports all OBD-II protocols
-Works with all OBD-II compliant vehicles
-Wireless (Bluetooth)
-Software included for Palm, PDA
-Software included for Windows PC
-Supports ISO 9141, KWP2000
-Supports SAE J1850
-Supports CAN bus
Bluetooth ELM 327 Functions:
- Read diagnostic trouble codes,both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
- Clear trouble codes and turn off the MIL ("Check Engine" light)
Display current sensor data, including:
- Engine RPM
- Calculated Load Value
- Coolant Temperature
- Fuel System Status
- Vehicle Speed
- Short Term Fuel Trim
- Long Term Fuel Trim
- Intake Manifold Pressure
- Timing Advance
- Intake Air Temperature
- Air Flow Rate
- Absolute Throttle Position
- Oxygen sensor voltages/associated short term fuel trims
- Fuel System status
- Fuel Pressure
- Many others
Upcoming Features:
- Data graphing and logging
- Freeze Frame data
- Continuous and Non-Continuous Oxygen Sensor test results
Package includes:
One CD software
One ELM327 Car Code Scanner Diagnostic Tool (Bluetooth Version)
