V2.1 Super Mini ELM327 Bluetooth OBD2 Scanner ELM 327 For Multi-brand CANBUS Support All OBD2 Model

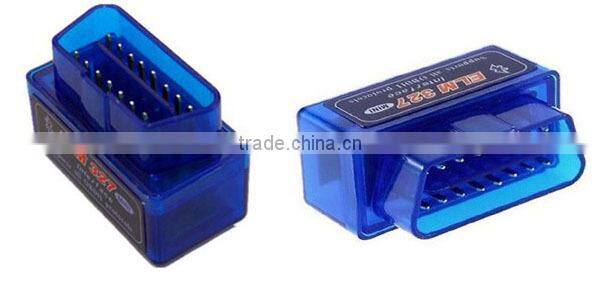

V2.1 Super Mini ELM327 Bluetooth OBD2 Scanner ELM 327 For Multi-brand CANBUS Support All OBD2 Model photo-1

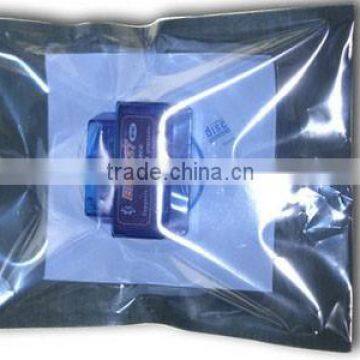

V2.1 Super Mini ELM327 Bluetooth OBD2 Scanner ELM 327 For Multi-brand CANBUS Support All OBD2 Model photo-2
V2.1 Super Mini ELM327 Bluetooth OBD2 Scanner ELM 327 For Multi-brand CANBUS Support All OBD2 Model photo-3
V2.1 Super Mini ELM327 Bluetooth OBD2 Scanner ELM 327 For Multi-brand CANBUS Support All OBD2 Model photo-4
V2.1 Super Mini ELM327 Bluetooth OBD2 Scanner ELM 327 For Multi-brand CANBUS Support All OBD2 Model photo-5
V2.1 Super Mini ELM327 Bluetooth OBD2 Scanner ELM 327 For Multi-brand CANBUS Support All OBD2 Model photo-6
US$ 5 - 10 MOQ: 50 Sets
Key Specifications
Get Latest Price
Type:
Other, Code Reader, ELM327 Tools
Voltage:
12
Power:
9
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Type Other, Code Reader, ELM327 Tools
Voltage 12
Power 9
Certification CE,RoHS
Applicable Models Audi,Australia Ford,Benz,BMW,Brilliance,Chevrolet,Chevy,Chrysler,Citroen,Dacia,Dadi,Daewoo,Daihatsu,Demo,Fiat,Ford,GM,Holden,Honda,Hyundai,Isuzu,Jaguar,Kia,Lancia,Land Rover,Mahindra,Maruti,Mazda,Mitsubish,Nissan,Opel,Peugeot,Porsche,Renault,Romeo,Rover,Saab,Seat,Skoda,Smart,Subaru,Suzuki,Tata,Toyota,Volvo,VW,Yamaha
Place of Origin Guangdong, China
Brand Name ELM, Auto Tools
Model Number ELM327MN
Warranty 1 Years

 V2.1 Super Mini ELM327 Bluetooth OBD2 Scanner ELM 327 For Multi-brand CANBUS Support All OBD2 Model



             V2.1 Super Mini ELM327 Bluetooth OBD2 Scanner ELM 327 For Multi-brand CANBUS Support All OBD2 Model

 V2.1 Super Mini ELM327 Bluetooth OBD2 Scanner ELM 327 For Multi-brand CANBUS Support All OBD2 Model





Diagnostic Device  mini elm327 bluetooth obd2 v1.5



The Elm327-Bluetooth adapter gives you the opportunity to "spy" on your car wirelessly. Convert your PC, PDA,
Mobile to a diagnostic tool and monitor all critical information of the car?s ECU.

The Elm327-Bluetooth is an adapter that connects to the car?s network and then creates a virtual cable between the adapter and the PC that it is connected. With the help of various open source application for the Elm327 you can have a digital gauge or an advanced diagnostic system and a powerful performance measurement toll in your screen.



Specifications:

Support OBD-II protocols as follows ISO15765-4 (CAN); ISO14230-4 (KWP2000); ISO9141-2; J1850 VPW; J1850 PWM
Output protocol RS232
Baud rate 9600 or 38400
Indicator LEDs OBD Tx/Rx, RS232 Tx/Rx, Power
Operating voltage 12V, internal protection from short circuits/over voltages
Nominal idle current 45mA
Item Size 48 * 35 * 25 mm
Color Blue





Features:
bluetooth ELM327 is the newly developed wireless scan tool. It supports all OBD-II protocols
-Works with all OBD-II compliant vehicles
-Wireless (Bluetooth)
-Software included for Palm, PDA
-Software included for Windows PC
-Supports ISO 9141, KWP2000
-Supports SAE J1850
-Supports CAN bus



Bluetooth ELM 327 Functions:

- Read diagnostic trouble codes,both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
- Clear trouble codes and turn off the MIL ("Check Engine" light)


Display current sensor data, including:
- Engine RPM
- Calculated Load Value
- Coolant Temperature
- Fuel System Status
- Vehicle Speed
- Short Term Fuel Trim
- Long Term Fuel Trim
- Intake Manifold Pressure
- Timing Advance
- Intake Air Temperature
- Air Flow Rate
- Absolute Throttle Position
- Oxygen sensor voltages/associated short term fuel trims
- Fuel System status
- Fuel Pressure
- Many others



Upcoming Features:

- Data graphing and logging
- Freeze Frame data
- Continuous and Non-Continuous Oxygen Sensor test results



Package includes:

One CD software

One Bluetooth ELM327
