Product Details
| Condition: | New | Function: | Wrapping | Application: | Commodity |
| Packaging Type: | Other, Plywood pakage | Packaging Material: | Plastic | Automatic Grade: | Automatic |
| Driven Type: | Electric | Voltage: | 220V | Power: | 2.8kw |
| Place of Origin: | Zhejiang, China | Brand Name: | Bocheng | Model Number: | BC-550 |
| Dimension(L*W*H): | 420C100C145CM | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

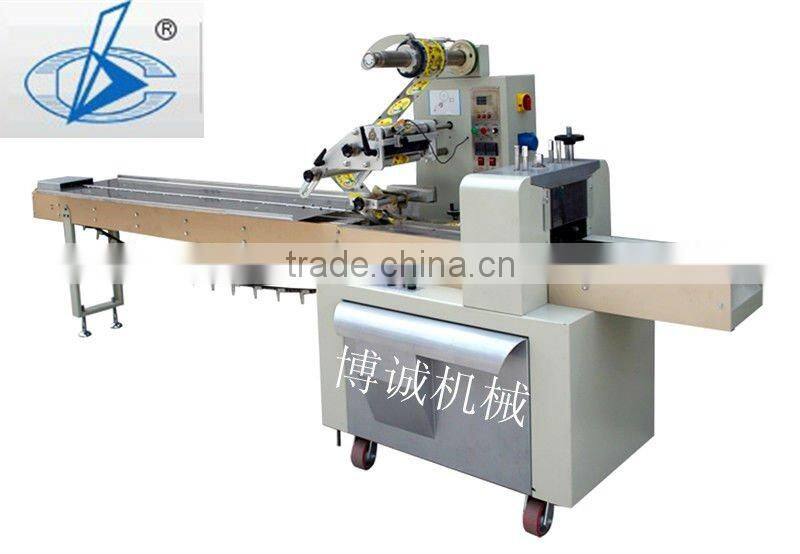

Pillow type flow wrapping Automatic plastic Packing Machine
Maquina de embalagem automatica
Almohada Tipo de maquina de embalaje automatico
1.This machine adopts Siemens PLC and operates accurately and steadily.
2.Photoelectric tracing,hence more options for bag length and sizes(from 90mm to 600 mm)
3.Bearing plate conveying structure makes it steady and accurate to fill and pack articles.
4.Oversize packing is equipped with air nvinient for multi packing.
5.Coding machine can be equipped,and the printing position can be choose at random.
Model | BC-550 |
Max. Film Width | 550mm |
Max. Capacity of Packing(according to the material) | 80bags/min |
Film Thickness | 0.03mm-0.07mm |
Bag Length | 90mm-300mm/180mm-600mm |
Packing Width | 60mm-220mm |
Packing Hight | ≤120mm |
Total Power | 2.8kw 220v |
Overall Dimentions(L×W×H) | 4200×1000×1450 |
Total Weight | 800kg |
