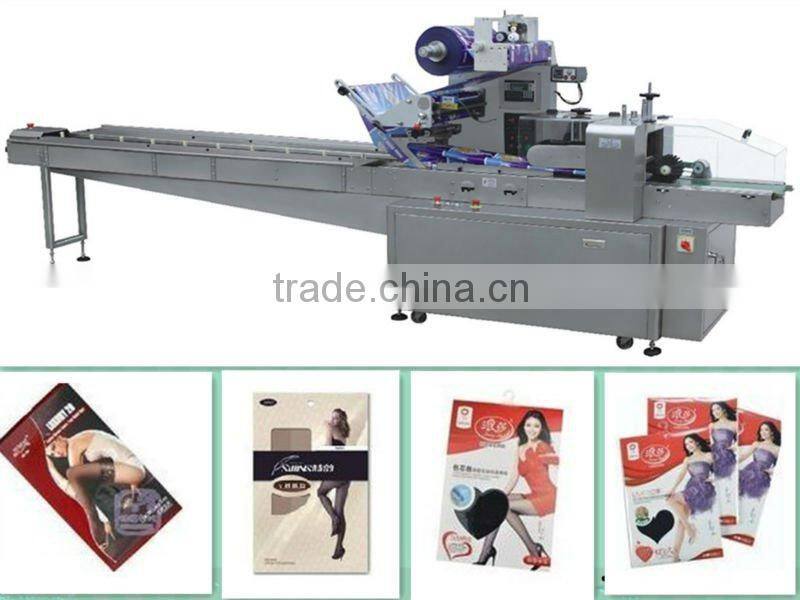

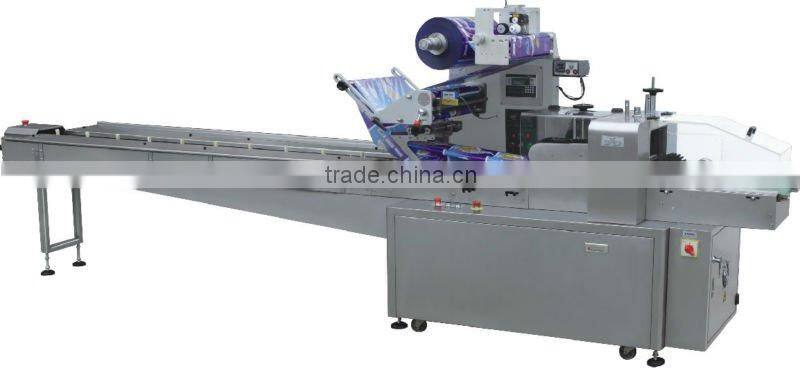

2014 Automatic High Speed Multi-Function Pillow Type Packaging Machine

Name: 2014 Automatic High Speed Multi-Function Pillow Type Packaging Machine
Brand: BOCHENG
SKU: 110629985
Availability: InStock

Ruian Bocheng Machinery Co., Ltd.

US$ 7,000 - 9,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Medical

Packaging Type:

Cartons

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Medical

Packaging Type Cartons

Packaging Material Plastic

Automatic Grade Automatic

Driven Type Electric

Voltage 380V

Power 2.8KW 220V

Place of Origin Zhejiang, China

Brand Name BOCHENG

Model Number GZB550-B

Weight 800KGS

Dimension(L*W*H) 420X100X145CM

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

BC-550 Full Automatic Pillow Packaging Machine

A).Main performance and features

1.This machine adopts Siemens PLC and operates accurately and steadily.

2.Photoelectric tracing, hence more options for bag length and sizes(from 90mm to 600 mm)

3.Bearing plate conveying structure makes it steady and accurate to fill and pack articles.

4.Oversize packing is equipped with air bleeder. it is convenient for multi packing.

5.Coding machine can be equipped, and the printing position can be choose at random.

B).Main technical parameters

Model	BC-250
Max. Film Width	550mm
Max. Capacity of Packing(according to the material)	80bags/min

Model	BC-250
Max. Film Width	550mm
Max. Capacity of Packing(according to the material)	80bags/min
Film Thickness	0.03mm-0.07mm
Bag Length	90mm-300mm/180mm-600mm
Packing Width	60mm-220mm
Packing Hight	≤120mm
Total Power	2.8kw 220v
Overall Dimentions(L×W×H)	4200×1000×1450mm
Total Weight	800kg
