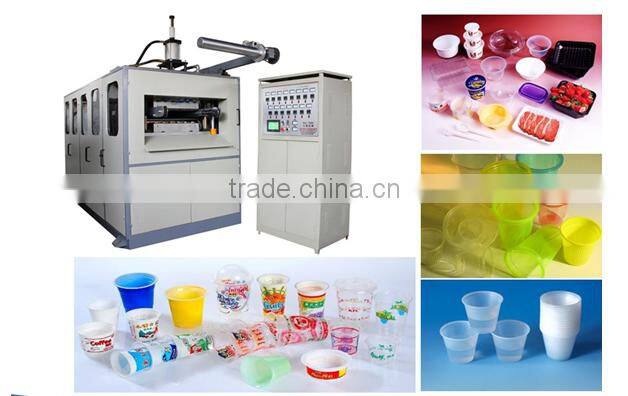

Ruian Plastic Cup Cam Thermoforming Machine BC-660
APPLICATION:
- 1. Main Technical Parameter
1,Power Supply | 380V/3P/50HZ |
2,Material | PP/PS/PET/PVC plastic thermoforming sheet |
3,Driving Method | Cam + Air cylinder |
4,Forming Speed | 32cycles/min ( Max Forming depth 130mm) |
5,Sheet Width | W=660mm (adjustable) |
6,Air Pressure | 0.6~0.8Mpa |
7,Air Consumption | 2200L/min |
8,Air Compressor Exhausting Capacity | 2200~3000L/min |
9,Water Consumption | 0.5m3 |
10 Machine Dimension | 3.3×1.4×2.2m |
11 Electrical Consumption | Approx. 45KW |
2. Machine List
1,Forming Machine | 1 set |
2,Electrical Control Cabinet | 1 set |
3,Sheet Unwinding Rack | 1 set |
4,Waste Sheet Winder | 1 set |
3. Machine Configuration
A. Forming Machine
Machine Frame | Square SteelSize 75×75:120 model Channel Steel:machine base is welding by extra steel plate with thickness=16mm |
Machine Door | The top part of the door with observation window from the operation side, Heating oven could move outside |
Mold Plate | QT500 nodular cast iron, pore-free, sand free |
Pillar | 4-pillar dia.=80mm,40Cr steel thermal refining,hard chrome plating,mirror finish:Gide bushing Dia.≤200mm,Material: metal ceramic Zns |
Worm Wheel | Standard Model 125, made in China |
Motor | P-11KW (4P) |
Sheet Thickness | 0.25~2.0mm |
Max. Forming Aare | 660×320mm |
Mold Plate Size | 1100×350mm |
Running Speed | 32cycles/min |
Stretching Air Cylinder | 125×125mm |
Solenoid Valve | SMC, Japan |
