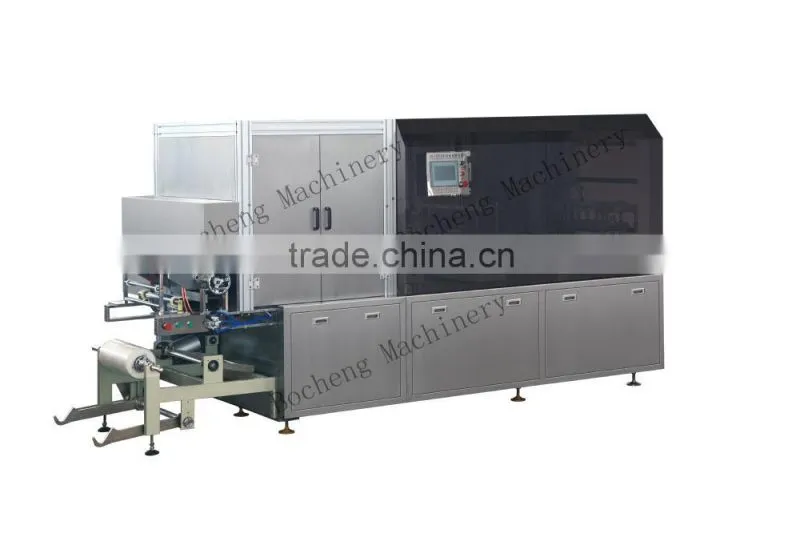

DB-450PP Plastic McDonald's Cup Lid Thermoforming Machine
- 10 Set / Sets per Month
- Ningbo
- T/T Credit Card
- cooling tower fill forming machine/ PVC pp fills machine
- Desktop vacuum former 6090 mini vacuum forming machine plastic thermoforming machine for ABS sheet sign
- Desktop vacuum former 6090 mini vacuum forming machine plastic thermoforming machine for ABS sheet sign
- Plastic Seedling tray blister forming machine / Seed tray blister making machine
- Hot selling automatic plastic dishes making tray seed thermoforming machine with factory price
- best selling PS Foam Disposable Lunch Box Making Machine Fast Food Box Foaming Machine
Product Details
Condition: | New | Type: | Thermoforming Machine | Plastic Type: | Other, PP/PVC/PET/PS |
Product Type: | Other, lid/tray/box | Automatic: | Yes | Place of Origin: | Zhejiang, China |
Brand Name: | Bocheng | Model Number: | DB-450PP | Voltage: | 380V 50HZ |
Power(W): | 16KW | Weight: | 3500kg | Dimension(L*W*H): | 5000*1600*2000mm |

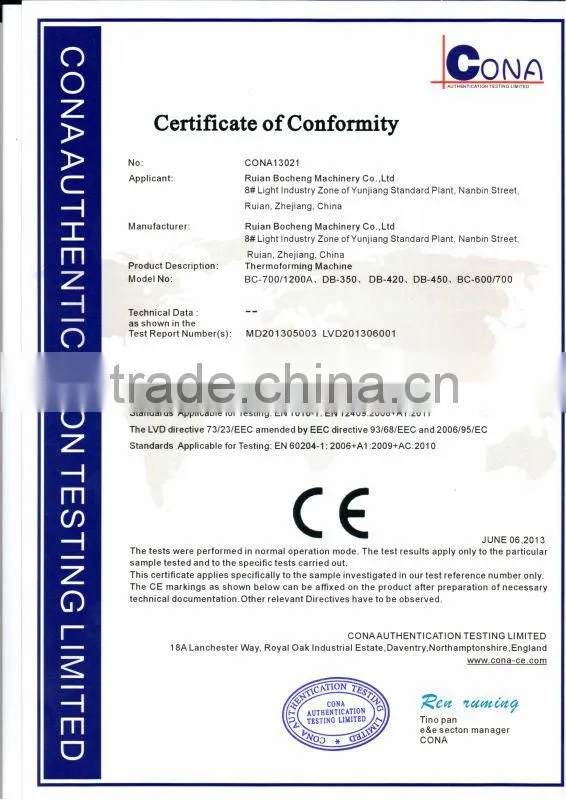

Certification: | CE Certificate | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

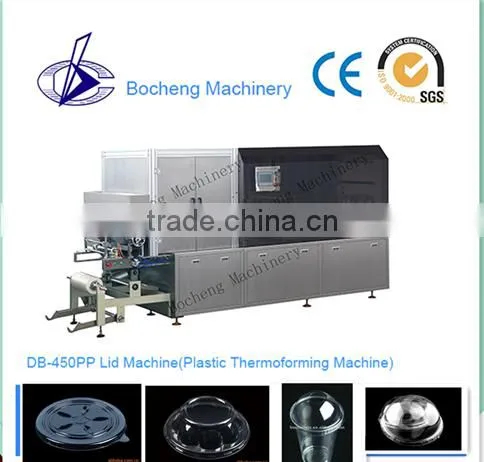

DB-450PP Plastic McDonald's Cup Lid Thermoforming Machine
1. Introduction

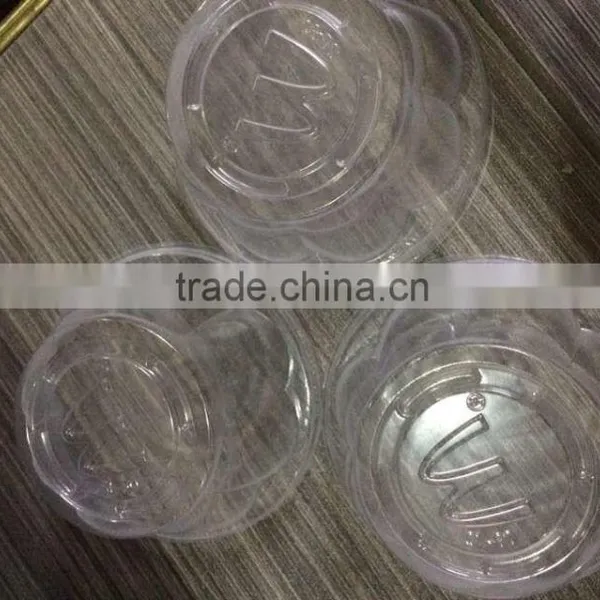

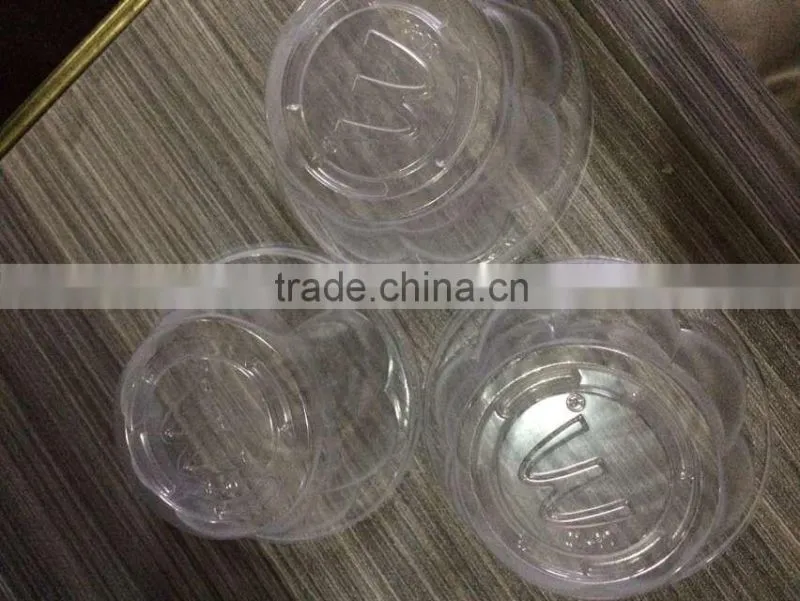

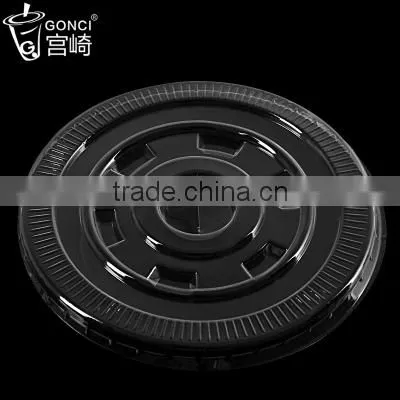

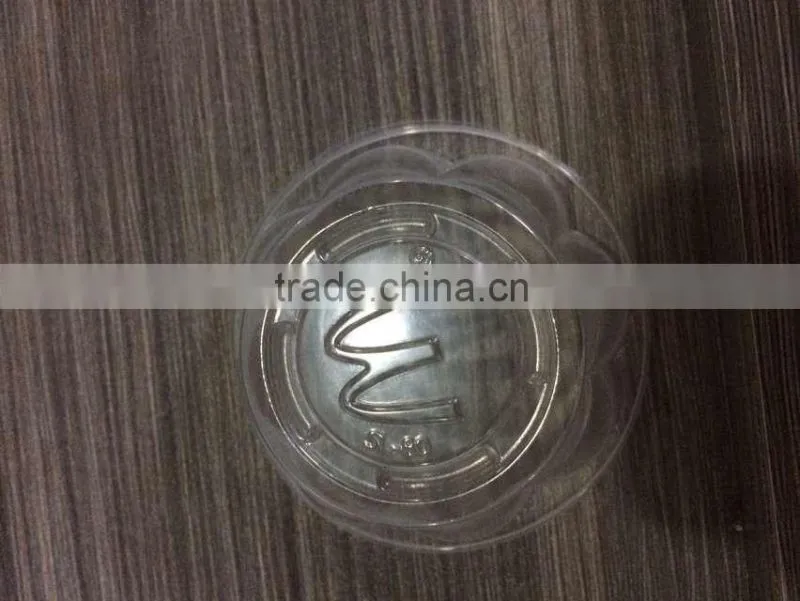

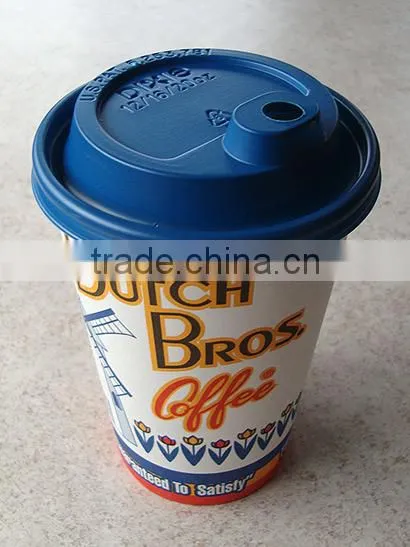

DB-450PP automatic blow molding and plastic sucking lids forming machine are developed by our research and development personnel according to the demand of packing market. In combination with the advantages of aluminum-plastic blister packing machine and plastic sucking forming machine, this machine is a new type product developed in light of pharmaceutical standard GMP and food standard QS. This machine adopts a fully automatic flow covering blow molding or plastic suction molding, punching and diet cutting as the special properties of products required by the users. It is with advanced technology, safe and simple operation, which will avoid the consumption of labor on the manual punching and contamination from the touch with the employee. Therefore, the quality requirement is secured during the production. Aligned heating is employed by the equipment, and it enjoys low power consumption, small covering of land. It is applicable to the plastic ware such as PP, PVC, PET, PS medicine trays, and cup lids, thermoforming boxes.
2. Performance features
1. Speed reducer, main-rotating connection, main shaft are on line (to decrease driving error) for mechanical transmission.
2. Sensor controls are adopted in pneumatic system .PLC control makes the whole machine run smoothly, keeps synchronous stability during the products are to be packed in multi-labor, long- distance .
3. Main motor non-stop speed regulating, the travel adjustable at will, simple and convenient to change the mold, manipulator traction, stable running.
4. Positive pressure formation in the equipment. (Puffing forming)
3. Main technical parameters
Model | DB-450PP-1(Single heater) | DB-450PP-2(Up & down heater) |
Punch Frequency | 15-35punch/min | 10-35punch/min |
Material | PP, PS, PET, PVC, EPS, etc. | |
Max. Forming Length | 260mm | 260mm |
Max. Forming Width | 470mm | 470mm |
Max. Forming depth | 50mm | 50mm |
Upper and Lower Forming Power | 16KW | 24KW |
Motor Power | 6KW | 6KW |
Total Power | 3-phase 4-line 380V 50Hz (220V 60Hz) 22kw | |
Water Consumption | 0.3m³/h (Tap water or recycle water) | 0.3m³/h (Tap water or recycle water) |
Air Pressure | 0.5-0.8(mpa) | 0.5-0.8(mpa) |
Exhaust Volume | ≥0.6 m³/min | ≥0.6 m³/min |
Pressure of water supply | 0.2MPa | 0.2MPa |
Machine overall size(L×W×H) | 5000×1600×2000mm | 5000×1600×2000mm |
Packing Size(L×W×H) | 5200×1800×2300mm | 5200×1800×2300mm |
The maximum width of material | 510mm | 510mm |
Weight | 3500KG | 3800KG |
