Specifications
SC Optical fiber pigtail1.SX & multi core
2.SM & MM; 9/125um & 62.5/125um
3.G652D fiber
4.FC/LC/ST... connector

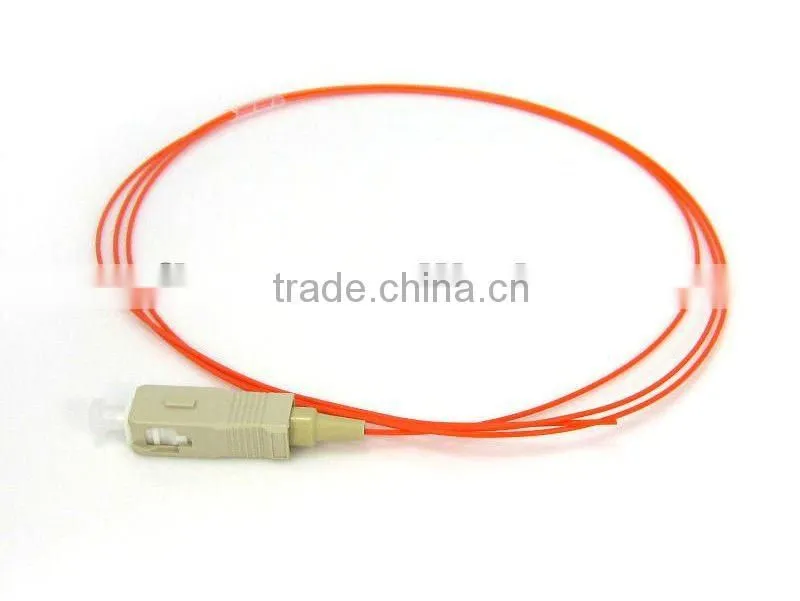

SC Optical fiber pigtail
Feature
1. Low insertion loss
2. Excellent mechanical endurance
3. High stability and reliability
4. Good repeatability and exchangeability
Range of Applications
1. FTTX+LAN
2. Optical fiber CATV
3. Optical communication system
4. Telecommunication
Performance parameter
FC/SC connector patch cord | ||||
Parameter |
Unit |
|
||
Operating wavelength |
nm |
1310/1550 |
||
Insertion loss (Typical) |
dB |
0.15 |
||
Return loss (Min.) |
Single mode |
PC |
dB |
>40 |
UPC |
dB |
>50 |
||
APC |
dB |
>60 |
||
Multimode |
PC |
dB |
>30 |
|
Operating temperature |
°C |
-10~75 |
||
Storage temperature |
°C |
-40~85 |
||
Ordering information
1. Connector type: FC/SC/ST/LC/MU/DIN/D4/MTRJ
2. Ferrule end-face: PC/UPC/APC
3. Mode : single mode / multimode
4. Cable quantity: simplex / duplex
1. Cable diameter: 0.9mm / 2.0mm / 3.0mm
2. Cable length: 1m/2m/3m or customized
3. Color : yellow / orange / green / gray / red or customized
