Specifications
PLC splitterSize: 50MM*30MM
LOGO: Available on request
Application: FTTH, CATV, Network, telecommunication

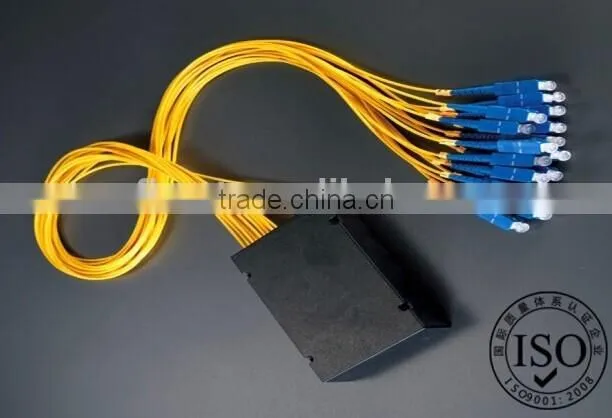

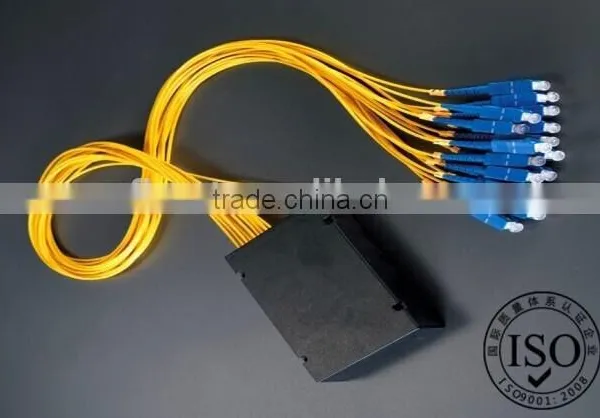

1x16 PLC splitter
1 Optical Characteristics (exclude connector loss)
Items |
Specification |
Remarks |
||||
Test Wavelength |
nm |
1310 |
1490 |
1550 |
||
Insertion Loss |
MAX |
dB |
7.0 |
7.0 |
7.0 |
|
Channel Uniformity |
MAX |
dB |
0.8 |
0.8 |
0.8 |
|
Polarization Dependent Loss |
MAX |
dB |
0.3 |
0.3 |
0.3 |
|
Directivity |
MIN |
dB |
55 |
|||
Return Loss |
MIN |
dB |
50 |
|||
Connector insertoin loss |
MAX |
dB |
0.1 each |
|||
Adapter insertion loss |
MAX |
dB |
N/A |
|||
working bandwidth |
nm |
1260……1650 |
||||
Storage Temperature |
°C |
-40……+85 |
||||
Operating Temperature |
°C |
-40……+85 |
||||
3.2 fiber optic cable and other requirements
Category |
Specification |
Remarks |
||
Optical fiber |
Type |
G657A1 |
||
Outer diameter(MM) |
Ø2 |
|||
Cable length(M) |
2M |
|||
Jacket material(PVC/LSZH) |
PVC |
|||
Sleeve(material ,color and length) |
Input endface |
2.0mm, yellow, PVC, 1.5+0.05m |
With tube number |
|
Output endface |
2.0mm, yellow, PVC, 1.5+0.05m |
With tube number |
||
Connector type |
SC/UPC |
|||
High and low temperature cycle screening |
10 cycles |
|||
Service
FH-NET is devoted to provide fiber transmission chanel based products for data communication, telecommunication network, CCTV product which are widely applied at MAN, Acess Network, FTTH etc. OED & ODM are warmly welcomed.
Any question pls feel free to contact~
