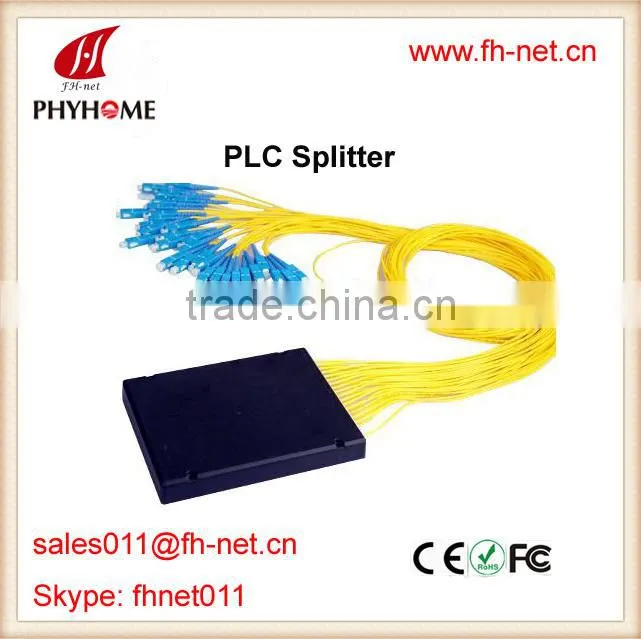

Fiber Optic PLC Splitter 1X2 1X4 1X8 1X16 1X32 1X64 SC/APC ABS Box for FTTH
Features
- Low Insertion loss
- Low PDL
- Low PDL
- Good channel-to-channel uniformity
- Wide Operating Wavelength: 1260nm~1650nm
Application
- FTTX Systems
- PON Networks
- CATV Links
- Optical Signal Distribution
Specifications
1×N PLC Splitter
(Measured at room temperature and excludes connector loss)
Type |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
||
Fiber Type |
9/125 um SMF-28e or custom on request |
||||||
Operating Wavelength (nm) |
1260~1650 |
||||||
Insertion Loss (dB) |
Typical |
3.6 |
6.8 |
10.0 |
13.0 |
16.0 |
|
(P/S) Max |
3.8/4.0 |
7.1/7.3 |
10.2/10.5 |
13.5/13.7 |
16.5/16.8 |
||
Loss Uniformity (dB) |
Max |
0.6 |
0.6 |
0.8 |
1.2 |
1.5 |
|
Polarization Dependent Loss (dB) |
Max |
0.15 |
0.15 |
0.25 |
0.3 |
0.3 |
|
Directivity (dB) |
Min |
55 |
|||||
Return Loss (dB) |
Min |
UPC:50 APC:55 |
|||||
Operating Temperature(℃) |
-40~85 |
||||||
Storage Temperature(℃) |
-40~85 |
||||||
