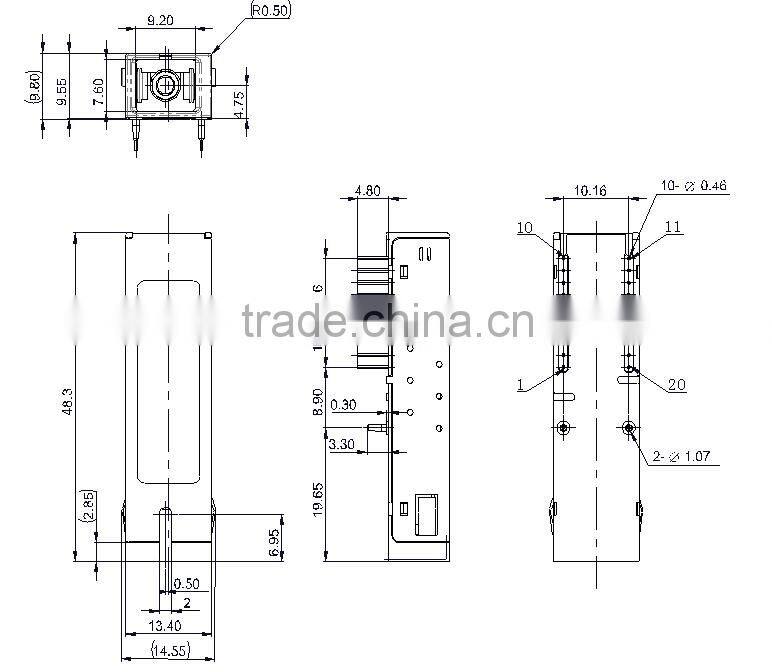

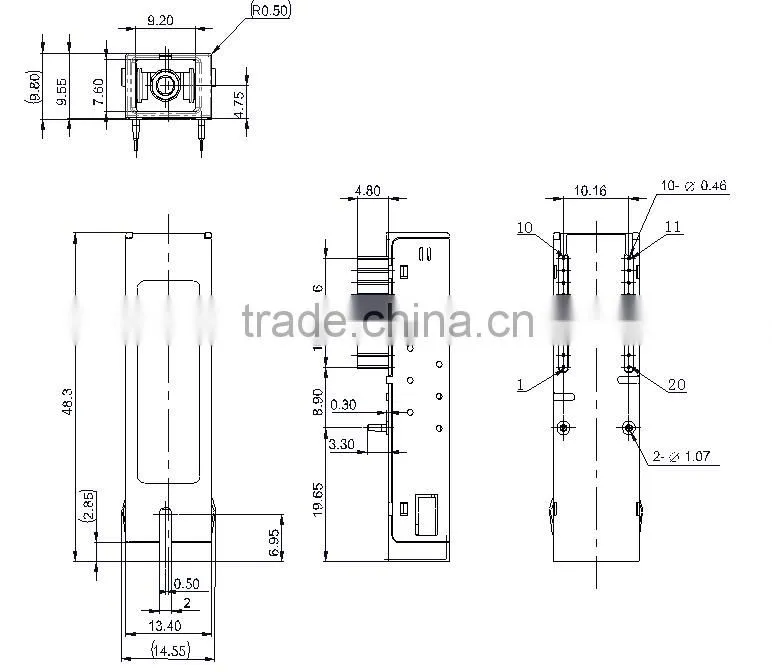

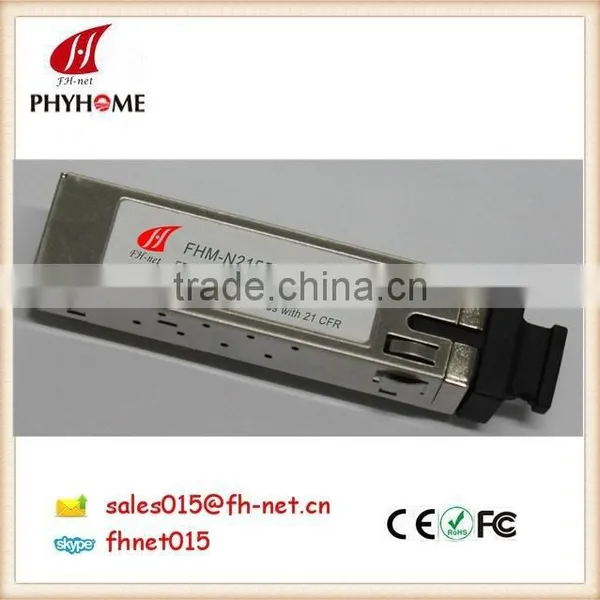

Class B+ EPON ONU SFF Transceiver Module 1310nm/1490nm SMF 20km 1.25G SFF EPON ONU Module

Class B+ EPON ONU SFF Transceiver Module 1310nm/1490nm SMF 20km 1.25G SFF EPON ONU Module thumbnail-1
Class B+ EPON ONU SFF Transceiver Module 1310nm/1490nm SMF 20km 1.25G SFF EPON ONU Module photo-1
US$ 1 - 20 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
fh-net/phyhome
Model Number:
FHM-N21551CG
Contact Supplier Request Quote Chat Now
Shenzhen FH-Net Optoelectronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name fh-net/phyhome
Model Number FHM-N21551CG
Product Description

Class B+ EPON ONU SFF Transceiver Module 1310nm/1490nm SMF 20km 1.25G SFF EPON ONU Module



Features

l  2x10 SFF with SC/PC Receptacle Transceiver

l  1310nm FP Tx with isolator

l  1490nm PIN Rx

l  Digital diagnostics SFF-8472 Compliant

l  1250 Mbps Burst mode Transmission

l  1250 Mbps continuous mode receiver Data Rate

l  Provide TX Burst Mode Detection function

l  Operation case temperature: -5~70℃

l  Complies with RoHS directive (2002/95/EC)



rdering Information



Part Number

PIN 13 Definition

Pin 8 Definition

Product description

RoHS Compliant

FHM-N21551CG-A

TX_DIS

RX_LOS

EPON PX20 ONU 2X10 SFF with SC/PC Receptacle, -5~70°C

RoHS-5

FHM-N21551CG-B

TX_DIS

RX_SD

EPON PX20 ONU 2X10 SFF with SC/PC Receptacle, -5~70°C

RoHS-5

FHM-N21551CG-C

TX_EN

RX_LOS

EPON PX20 ONU 2X10 SFF with SC/PC Receptacle, -5~70°C

RoHS-5

FHM-N21551CG-D

TX_EN

RX_SD

EPON PX20 ONU 2X10 SFF with SC/PC Receptacle, -5~70°C

RoHS-5





Recommended Operating Conditions

Parameter

Symbol

Min.

Max.

Unit

Storage Temperature

Tstg

-40

85

°C

Operating Case Temperature

Tc

-5

70

°C

Power Supply Voltage

Vcc

3.1

3.5

V

Total Power Supply Current

Icc

-

300

mA



Transmitter Characteristics

Parameter

Symbol

Min.

Typ.

Max.

Units

Notes

Optical Transmitter Power

P0

0



4

dBm

1

Optical Transmitter Power off

Poff





-40

dBm

Output Center Wavelength

λ

1260

-

1360

nm

Output Spectrum Width(RMS)

Δλ

-

-

3.0

nm

Extinction Ratio

ER

10

-

-

dB

Optical Rise Time



-

-

260

ps

Optical Fall Time



-

-

260

ps

Optical Eye Diagram

Compliant with IEEE Std 802.3ahTM-2004

Burst Turn On Time

Ton

-

-

16

ns



Burst Turn Off Time

Toff

-

-

16

ns



Tolerence to Tx Back Reflection



-

-

-15

dB



Data Rate

-

-

1.25

-

Gb/s



Single Ended Data Input Voltage Swing

VIN

200

-

1600

mV



Differential Input Impedance

ZIN

80

100

120

ohm



Tx_fault Output Voltage- High

VOH

2.4

-

-

V



Tx_fault Output Voltage- Low

VOL

-

-

0.4

V



Tx_Dis Input Voltage- High

VIH

2.0

-

Vcc

V

2

Tx_Dis Input Voltage- Low

VIL

0

-

0.8

V

2

Tx_EN Input Voltage- High

VIH

2.0

-

Vcc

V

3

Tx_EN Input Voltage- Low

VIL

0

-

0.8

V

3
