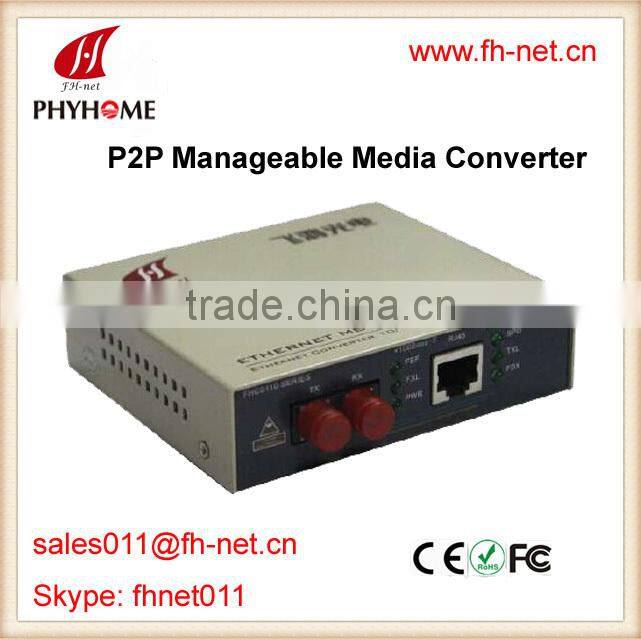

10/100M Manageable Media Converter
10/100M Manageable Media Converter
Description
10/100M, IEEE802.3ah OAM manageable Ethernet fiber media converter can supervise the real situation of remote manageable fiber media converter and set the functions. With this system, the response speed of the operator is quickened. the daily maintenance and network expenditure of the operators are reduced, and the serving quality of them is enhanced.
Features
- Support WEB, SNMP, Telnet and Console management
- 2 TP port, 10/100M auto-negotiation, 1 FX port
- Transmit distance range from 2KM to 120KM
- Support flow control function, TP port bandwidth rate range from N*64K(N=1~1600) to 100M bps
- Managed interface can monitor and control the status of both local and remote side TP port and FX port
- Built in 1M cache memory, support 2K MAC address
- MAC address auto-learning
- Support LLCF ( Link Loss Carry Forward)
- LLD(Link Loss Detection) ,LLR(Link Loss Return)
- TP port auto-negotiation, auto MDIX
- Meet standards: IEEE802.3, IEEE802.3u,IEEE802.3,IEEE802.3ab,IEEE802.3x
| Parameter | Specifications |
| Optical Port | |
| Port number | 1 |
| Bit rate | 150Mb/s+/-50ppm |
| Wavelength | 1310nm,1550nm |
| Distance | 0 - 100Km |
| Multi-mode | 50/125, 62.5/125, 100/140um |
| Single-mode | 80.3/125, 8.7/125, 9/125, 10/125um |
| Connector | FC/PC, SC/PC, ST/PC, LC |
| Ethernet Port | |
| Port number | 1 |
| Speed | 10/100Mbps line speed |
| Power Supply | |
| Input voltage | When -48V, -40V ~ -60V (DC) is allowed |
| Overall power | 5W |
| Operating Environment | |
| Temperature | 0℃-55℃ |
| Humidity | 5%-95%, no condense |
